FRONT BRAKE MASTER CYLINDER

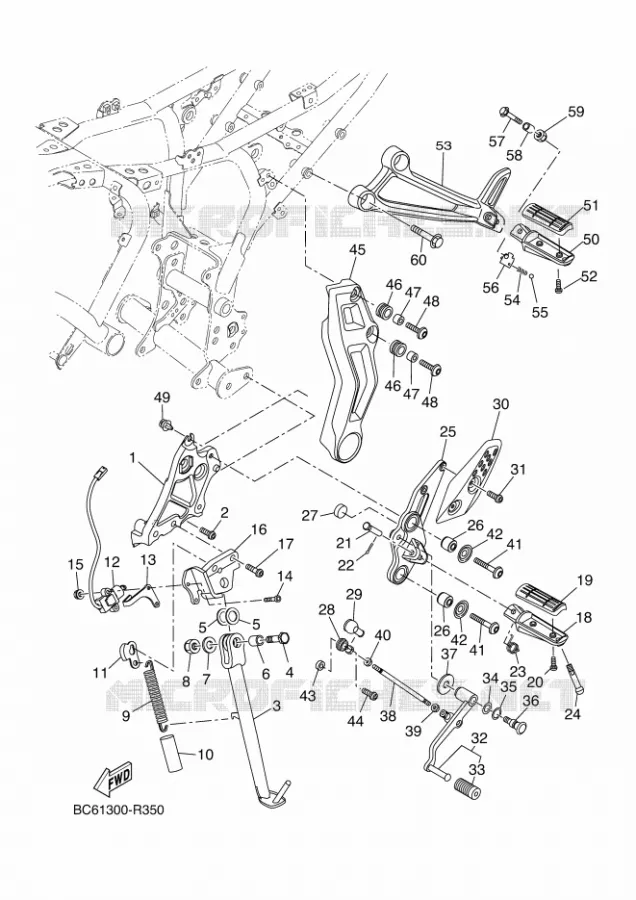

STAND / FOOTREST FOR YAMAHA MT 2016

STAND / FOOTREST 2

Item numbers

BRACKET, ADAPTER 1

B34274A30000

B34274A30100

177,85 $

Unit Price

BOLT

901111006000

901111000600

7,77 $

Unit Price

STAND, SIDE

1WS273110000 1WS273110000

88,63 $

Unit Price

BOLT

901011002500 901011002500

10,83 $

Unit Price

WASHER, PLATE

902011701800 902011701800

2,41 $

Unit Price

COLLAR

903871005000 903871005000

15,65 $

Unit Price

WASHER, PLATE

902011003500 902011003500

3,16 $

Unit Price

NUT, SELF-LOCKING

901851002300 901851002300

3,42 $

Unit Price

SPRING, TENSION

905062301800 905062301800

22,26 $

Unit Price

GUIDE, SIDE STAND

5VX273510000 5VX273510000

4,98 $

Unit Price

LINK, SIDE STAND

5VX273150000 5VX273150000

4,72 $

Unit Price

SWITCH, SIDE STAND

1WS825660000

1WS825660100

124,79 $

Unit Price

HOLDER

1WS2419A0000 1WS2419A0000

12,79 $

Unit Price

BOLT, HEXAGON SOCK

901100507100 901100507100

1,51 $

Unit Price

NUT, S-L FLANGE

956020520000

956070520000

4,71 $

Unit Price

BRACKET, SIDE STAN

1WS273210000 1WS273210000

114,21 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901111005800

901111005900

6,03 $

Unit Price

REPOSE-PIEDS

2SFF74510000 2SFF74510000

Not available

GARNITURE, REPOSE-PIEDS

1B9F74540000 1B9F74540000

Not available

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

PIN, CLEVIS

917010804000

917020804000

3,88 $

Unit Price

PIN, COTTER

914022501500

914902502000

3,93 $

Unit Price

SPRING, TORSION

905081805600 905081805600

2,22 $

Unit Price

BOLT

90109086F800

901090822500

8,53 $

Unit Price

BRACKET 2

1WS274421000 1WS274421000

184,19 $

Unit Price

DAMPER, FOOTREST

36Y274140000 36Y274140000

27,17 $

Unit Price

STOPPER, MAIN STAND

5VX271140000 5VX271140000

2,52 $

Unit Price

JOINT, ROD 1

5VX181160000 5VX181160000

86,74 $

Unit Price

COVER, DUST

5VX181540000 5VX181540000

5,86 $

Unit Price

PLATE 1

1WS274451000 1WS274451000

63,04 $

Unit Price

BOLT, BUTTON HEAD(3JP)

920140601200 920140601200

3,85 $

Unit Price

SHIFT PEDAL ASSY

B34181100000 B34181100000

135,40 $

Unit Price

COVER, SHIFT PEDAL

1WS181130000 1WS181130000

WASHER, PLATE

902011205100 902011205100

1,97 $

Unit Price

WASHER, WAVE (17W)

902061207400 902061207400

3,94 $

Unit Price

BOLT

4BP274340100

4BP274341100

5,89 $

Unit Price

WASHER, PLATE

902010805300 902010805300

4,39 $

Unit Price

ROD, SHIFT

5A8181150000 5A8181150000

22,04 $

Unit Price

NUT

901700602600 901700602600

0,84 $

Unit Price

NUT

953140670000 953140670000

0,65 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(38V)

901100807100 901100807100

8,56 $

Unit Price

WASHER(1UF)

902090829500 902090829500

7,75 $

Unit Price

COLLAR 27583923000

903870637200 903870637200

2,39 $

Unit Price

BOLT, BUTTON HEAD

901110609800

920120602000

1,90 $

Unit Price

PANNEAU 1

BC6F74530000 BC6F74530000

Not available

GROMMET

904801400300 904801400300

3,86 $

Unit Price

COLLAR

903870605700 903870605700

7,64 $

Unit Price

SCREW

901490610500 901490610500

4,55 $

Unit Price

RIVET

902690800800 902690800800

2,18 $

Unit Price

BARRE, REPOSE-PIEDS ARRIERE

11DF743A0000 11DF743A0000

Not available

GARNITURE, REPOSE-PIEDS

1B9F74540000 1B9F74540000

Not available

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

ETRIER 4

BC6F741L0000 BC6F741L0000

Not available

SPRING, COMPRESSION

905011500100 905011500100

2,59 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

WASHER, SPECIAL

5JJ274370100 5JJ274370100

10,14 $

Unit Price

BOLT, FLANGE

958170604000 958170604000

3,91 $

Unit Price

COLLAR

903870601400 903870601400

3,86 $

Unit Price

NUT, U FLANGE

956040620000 956040620000

4,30 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(4KG)

901100823100 901100823100

7,58 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
