CYLINDER

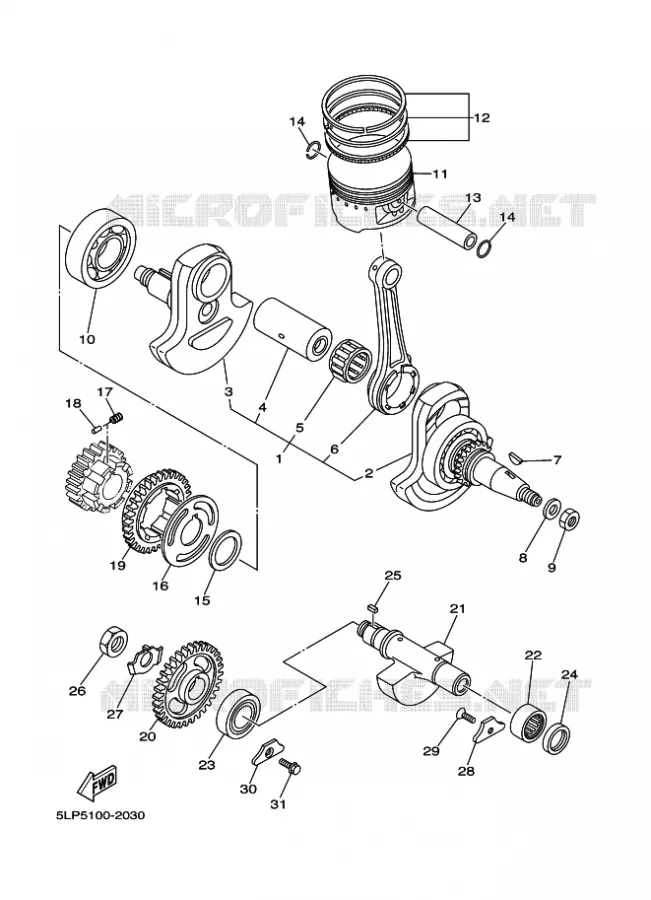

CRANKSHAFT / PISTON FOR YAMAHA RAPTOR 2004

VALVE

Item numbers

CRANKSHAFT ASSY

5LP114001000

5LP114001100

1 109,76 $

Unit Price

CRANKSHAFT 1

5LPW11410000

5LP114010900

423,06 $

Unit Price

MASSOLOTTE DE VILEBREQUIN 2

5LP114221000 5LP114221000

Not available

PIN, CRANK 1

5KM116810000 5KM116810000

114,36 $

Unit Price

BEARING, CYLINDRICAL(3YF)

93310637D300 93310637D300

99,12 $

Unit Price

ROD, CONNECTING

5LP116510000 5LP116510000

194,72 $

Unit Price

KEY, WOODRUFF

902801605300

902800500100

13,31 $

Unit Price

WASHER, PLATE

902011422600 902011422600

5,83 $

Unit Price

NUT

901791431700 901791431700

22,18 $

Unit Price

BEARING (3GV)

933063070200 933063070200

74,13 $

Unit Price

PISTON (STD)

3YF1163100X0 3YF1163100X0

169,76 $

Unit Price

PISTON (0.50MM O-S)

3YF116360000 3YF116360000

190,37 $

Unit Price

PISTON (1.00MM O-S)

3YF116380000 3YF116380000

190,37 $

Unit Price

PISTON RING SET (STD)

3YF116100000

2C6116030000

60,84 $

Unit Price

PISTON RING SET (0.50MM O-S)

3YF116102000

2C6116050000

60,58 $

Unit Price

PISTON RING SET (1.00MM O-S)

3YF116104000

2C6116070000

60,58 $

Unit Price

PIN, PISTON

3YF116330100 3YF116330100

48,62 $

Unit Price

CIRCLIP 256116340000

934502402800 934502402800

4,86 $

Unit Price

WASHER, PLATE (5Y1)

90201301F400 90201301F400

10,14 $

Unit Price

BEARING COVER WASHER

34K115650200 34K115650200

8,12 $

Unit Price

SPRING, COMPRESSION

905012000300 905012000300

6,89 $

Unit Price

PIN, DOWEL

936051009000 936051009000

5,10 $

Unit Price

ENGRENAGE, MENANT

5LP115361000 5LP115361000

Not available

PIGNON, EQUILIBRAGE

5LP115310000 5LP115310000

Not available

WEIGHT 1

5LP114541000

5LP114541100

260,07 $

Unit Price

BEARING, CYLINDRICAL(3YL)

933116257400 933116257400

71,11 $

Unit Price

BEARING(3RR)

933063053400

933063056000

78,78 $

Unit Price

OIL SEAL (25X35X7-256)

931022506400 931022506400

17,46 $

Unit Price

KEY, STRAIGHT (36F)

902820505800 902820505800

2,76 $

Unit Price

NUT

901701800300 901701800300

16,29 $

Unit Price

WASHER, LOCK

902151800100 902151800100

14,01 $

Unit Price

PLAQUE, COUV DE ROULEMENT

5LP153810000 5LP153810000

Not available

BOLT, FLANGE(4DU)

950270601400 950270601400

0,89 $

Unit Price

PLAQUE, COUV DE ROULEMENT

5LP153810000 5LP153810000

Not available

BOLT, FLANGE(4DU)

950270601400 950270601400

0,89 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha YFM660R of 2004. Let us know if you have any questions.
