INTAKE

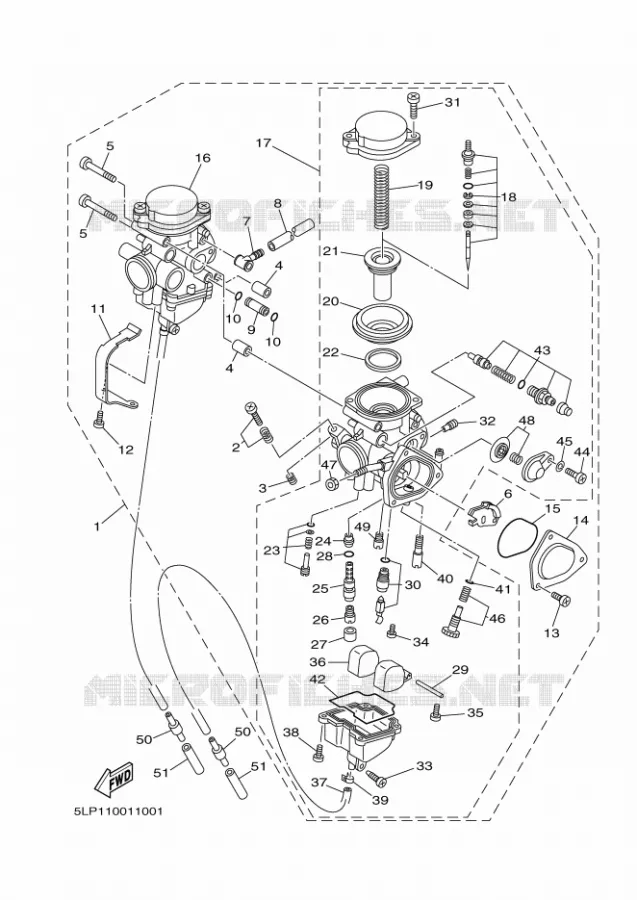

CARBURETOR FOR YAMAHA RAPTOR 2001

EXHAUST

Item numbers

CARBURATEUR COMPLET

5LP149000000 5LP149000000

Not available

JEU DE VIS DE BUTEE

5LP1490K1000 5LP1490K1000

Not available

SPRING, PILOT ADJUSTING

620142120000 620142120000

3,13 $

Unit Price

TUBE

5LP149960000 5LP149960000

Not available

VIS

3LN142160000 3LN142160000

Not available

GUIDE, CABLE

1UY141550000 1UY141550000

22,41 $

Unit Price

CONNECTOR

5EA141670000 5EA141670000

22,72 $

Unit Price

HOSE

5LP143490000 5LP143490000

48,78 $

Unit Price

PIPE

5DM141480000 5DM141480000

13,28 $

Unit Price

O-RING

36Y141470000 36Y141470000

13,25 $

Unit Price

PLATE

5LP149450000 5LP149450000

59,59 $

Unit Price

SCREW

3DM142160000 3DM142160000

6,38 $

Unit Price

SCREW, PAN HEAD(3XP)

985070400600

985170400600

6,22 $

Unit Price

COVER 1

4WV142930000 4WV142930000

11,51 $

Unit Price

O-RING

4WV141471000 4WV141471000

31,75 $

Unit Price

CARBURATEUR 2 COMPLET

5LP149020000 5LP149020000

Not available

CARBURATEUR 1 COMPLET

5LP149010000 5LP149010000

Not available

NEEDLE SET

5LP1490J0000 5LP1490J0000

49,38 $

Unit Price

SPRING, DIAPHRAGM

4KM149330000 4KM149330000

24,68 $

Unit Price

DIAPHRAGM ASSY

5GH149401000 5GH149401000

76,46 $

Unit Price

VALVE, THROTTLE 1

5LP141120000 5LP141120000

138,88 $

Unit Price

BAGUE

5LP149180000 5LP149180000

Not available

PILOT SCREW SET

5LP141050000 5LP141050000

23,46 $

Unit Price

PILOT SCREW SET

5LP141051000 5LP141051000

23,46 $

Unit Price

PUITS D'AIGUILLE

5DM141414600 5DM141414600

Not available

SUPPORT

5GH142611000 5GH142611000

Not available

JET, MAIN (#140)

3G2142312800 3G2142312800

14,30 $

Unit Price

JET, MAIN (#145)

3G2142312900 3G2142312900

14,29 $

Unit Price

RING

5GH149180000 5GH149180000

22,72 $

Unit Price

O-RING

583145610000 583145610000

10,59 $

Unit Price

PIN, FLOAT

127141860000 127141860000

8,54 $

Unit Price

NEEDLE VALVE SET

5LP141072000 5LP141072000

44,71 $

Unit Price

SCREW

4KM142160000 4KM142160000

8,90 $

Unit Price

JET, MAIN (# 80)

1HX142311600 1HX142311600

13,98 $

Unit Price

GICLEUR, PRINCIPAL (#150)

1HX142313000 1HX142313000

Not available

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

SCREW, PAN HEAD(JG1)

985070400800 985070400800

1,90 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

FLOAT

5DM149850000 5DM149850000

86,75 $

Unit Price

PIPE

4KB141932000 4KB141932000

34,26 $

Unit Price

SCREW, PAN HEAD (E56)

985800401000 985800401000

5,23 $

Unit Price

CLIP

904670619400 904670619400

0,68 $

Unit Price

JET, PILOT (# 22.5)

4KM141422200 4KM141422200

11,69 $

Unit Price

O-RING

812141470000

6K8145620000

1,57 $

Unit Price

O-RING

5DM145610000 5DM145610000

19,72 $

Unit Price

STARTER SET

5GH1410A0000 5GH1410A0000

62,96 $

Unit Price

SCREW, PAN HEAD(N15)

985070401400 985070401400

1,92 $

Unit Price

WASHER(6TA)

929070410000 929070410000

2,10 $

Unit Price

JEU DE VIS D'ACCELERATION

5LP141030000 5LP141030000

Not available

NUT, CABLE ADJUSTING

522141610000 522141610000

11,76 $

Unit Price

DIAPHRAGM SET 5

5EL1490H0000 5EL1490H0000

65,80 $

Unit Price

JET, MAIN (# 95)

3G2142311900 3G2142311900

14,01 $

Unit Price

PIPE 2, OVERFLOW

24W141930000 24W141930000

37,81 $

Unit Price

DURITE

91A200700400 91A200700400

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
