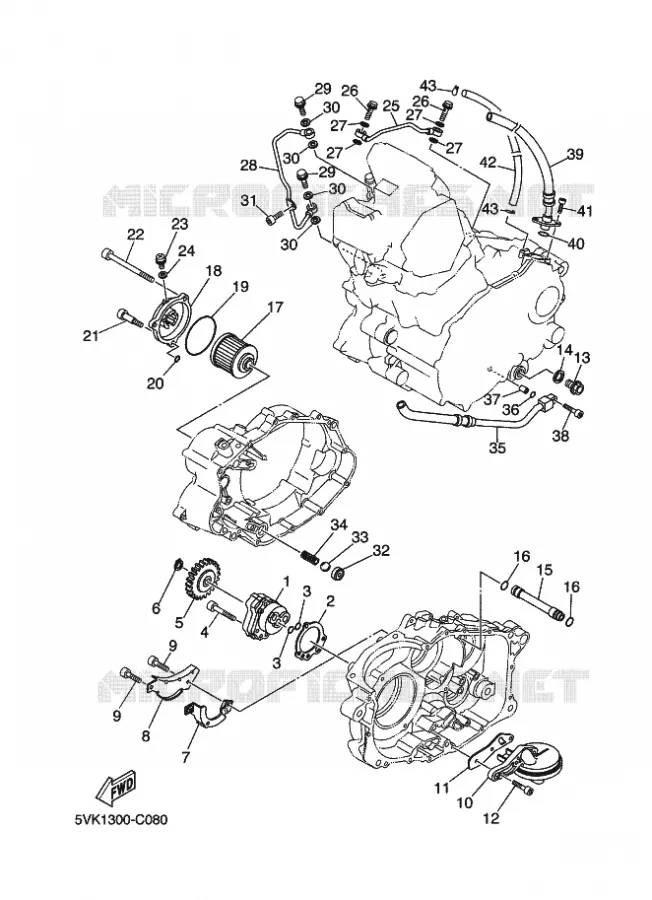

OIL PUMP FOR YAMAHA XTX 2010

INTAKE

Item numbers

OIL PUMP ASSY

5VKE33000000 5VKE33000000

Not available

GASKET, PUMP COVER

5LP133290000 5LP133290000

2,17 $

Unit Price

O-RING

9321013X0000 9321013X0000

Not available

BOLT, BUTTON

920170603500 920170603500

4,03 $

Unit Price

GEAR, PUMP DRIVEN

3AJ133250000 3AJ133250000

39,72 $

Unit Price

CIRCLIP

9341011X0000 9341011X0000

Not available

COVER, PUMP 2

5VKE33560000 5VKE33560000

Not available

COVER, PUMP GEAR

5VKE33270000 5VKE33270000

Not available

BOLT, SOCKET

913170500800 913170500800

2,55 $

Unit Price

STRAINER COMP.

5VKWE3430000 5VKWE3430000

Not available

SEAL, OIL STRAINER

5VKE34151000 5VKE34151000

Not available

BOLT, SOCKET

913170602000 913170602000

4,00 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,37 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

PIPE, DELIVERY 3

5VKE31810000 5VKE31810000

Not available

O-RING

9321011X0000 9321011X0000

Not available

ELEMENT ASSY, OIL CLEANER

4X7134400100

4X7134409000

15,43 $

Unit Price

COVER, OIL ELEMENT

2WK134470000 2WK134470000

33,07 $

Unit Price

O-RING

9321064X0100 9321064X0100

16,84 $

Unit Price

O-RING

9321007X0100 9321007X0100

1,89 $

Unit Price

BOLT (583 OIL DRAIN)

901090641900 901090641900

9,22 $

Unit Price

BOLT, SOCKET

913170609500 913170609500

5,95 $

Unit Price

SCREW (583)

901490511000 901490511000

2,61 $

Unit Price

GASKET

9043005X0000 9043005X0000

Not available

PIPE, DELIVERY 1

5VK131610000 5VK131610000

Not available

BOLT, UNION(3AJ)

904010813300 904010813300

12,69 $

Unit Price

GASKET

9043008X0100 9043008X0100

Not available

PIPE, DELIVERY 2

5VK131710000 5VK131710000

Not available

BOLT, UNION(3GM)

904011009600

904011015900

11,58 $

Unit Price

GASKET-PACKING

9043010X0000 9043010X0000

Not available

BOLT, SOCKET

913170601200 913170601200

5,10 $

Unit Price

SEAT, CHECK BALL

583131130000 583131130000

15,55 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING (278-13169-00) SPRING, COMPRESSION

9050104X0100 9050104X0100

Not available

HOSE, OIL 1

5VK134640000 5VK134640000

Not available

O-RING

9321010X0000 9321010X0000

0,88 $

Unit Price

PIN, DOWEL

9181014X0000 9181014X0000

Not available

BOLT, SOCKET

913170602500 913170602500

4,03 $

Unit Price

HOSE, OIL 2

5VK134650000 5VK134650000

Not available

O-RING

9321015X0000 9321015X0000

13,23 $

Unit Price

BOLT, SOCKET

913170601600 913170601600

3,51 $

Unit Price

HOSE (L660) HOSE

9044511X0100 9044511X0100

Not available

CLIP

904671000800

90467100A100

1,27 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
