CAMSHAFT / TIMING CHAIN

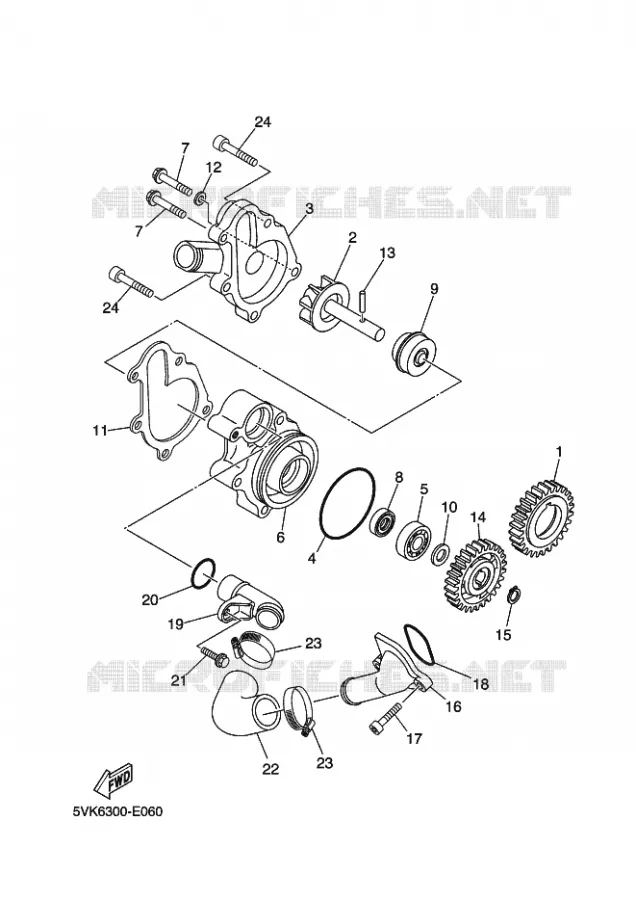

WATERPUMP / HOSES FOR YAMAHA XTX 2009

RADIATOR / HOSES

Item numbers

ENGRENAGE, MENANT

5VKE24360000 5VKE24360000

Not available

AXE DE ROTOR

5VK124500000 5VK124500000

Not available

COUVERCLE DE CARTER DE POMPE

5VK124220000 5VK124220000

Not available

O-RING(2HT)

932106175000 932106175000

10,11 $

Unit Price

BRG, R-B 6001 28MM 28G KY

933060010600

933060010500

24,34 $

Unit Price

CARTER, POMPE A EAU

5VK124210000 5VK124210000

Not available

BOLT, SMALL FLANGE

950270602500 950270602500

2,49 $

Unit Price

OIL SEAL

931011217300 931011217300

15,61 $

Unit Price

SEAL, MECHANICAL

11H124381000 11H124381000

32,07 $

Unit Price

WASHER, PLATE (525)

902011254100 902011254100

6,54 $

Unit Price

JOINT, COUVERCLE DE CARTER 2

5VK124280000 5VK124280000

Not available

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

PIN, DOWEL(1HX)

936031621900 936031621900

3,81 $

Unit Price

GEAR, IMPELLER SHAFT

5VK124590000 5VK124590000

44,10 $

Unit Price

CIRCLIP(10Y)

990091240000 990091240000

3,59 $

Unit Price

RACCORD 1

5VKE24690000 5VKE24690000

Not available

BOLT, SOCKET

913170602000 913170602000

4,00 $

Unit Price

JOINT TORIQUE

9321033X0000 9321033X0000

Not available

DURITE 1

5VK124810000 5VK124810000

Not available

JOINT TORIQUE

9321021X0000 9321021X0000

Not available

BOLT, SOCKET

913170601200 913170601200

5,10 $

Unit Price

TUYAU 2

5VKE25770000 5VKE25770000

Not available

BRIDE, DE DURITE

9045031X0000 9045031X0000

Not available

BOLT, SOCKET

913170605000 913170605000

5,20 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
