FRAME

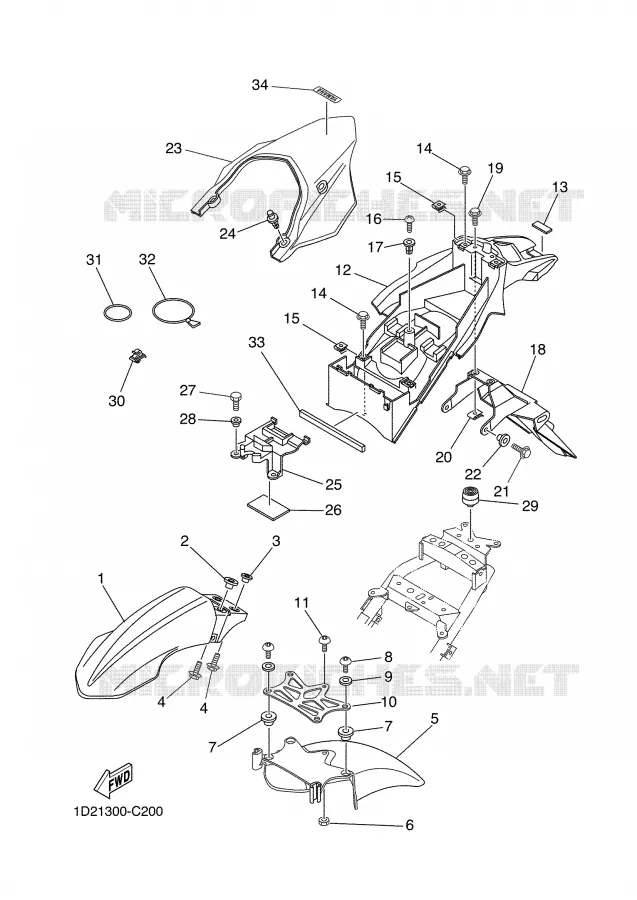

FENDER FOR YAMAHA XTX 2005

SIDE COVER

GARDE BOUE AV

1D2F15110000 1D2F15110000

Not available

COLLAR(3SX)

90387065X700 90387065X700

9,72 $

Unit Price

COLLAR(50M)

90387087L000 90387087L000

9,08 $

Unit Price

BOLT, WITH WASHER (30X)

901190609600 901190609600

3,94 $

Unit Price

GARDE BOUE AV 2

1D2F15560000 1D2F15560000

Not available

ECROU

9017906X0200 9017906X0200

Not available

COLLERETTE

9038708X0500 9038708X0500

Not available

BOULON

9011108X0500 9011108X0500

Not available

RONDELLE, PLATE

9020108X0300 9020108X0300

Not available

SUPPORT 2

1D2F15140000 1D2F15140000

BOULON

9011106X1500 9011106X1500

Not available

GARDE BOUE AR

5VKF16110000 5VKF16110000

Not available

DAMPER

5DM283710000 5DM283710000

0,33 $

Unit Price

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

NUT, SPRING (26H)

901830602300 901830602300

9,95 $

Unit Price

SCREW, TRUSS TAP.

977076002000 977076002000

0,71 $

Unit Price

PLUG(4BP)

903380822600 903380822600

2,64 $

Unit Price

SUPPORT, IMMATRICULATION

5VKF16850000 5VKF16850000

Not available

BOLT, WITH WASHER(81H)

901190611800 901190611800

3,94 $

Unit Price

NUT, SPRING (26H)

901830602300 901830602300

9,95 $

Unit Price

BOLT, FLANGE

958070601400

958170601400

4,16 $

Unit Price

COLLAR (8G8)

903870664800 903870664800

3,69 $

Unit Price

CACHE DE GARDE BOUE AR

5VKF16512000 5VKF16512000

Not available

CACHE DE GARDE BOUE AR

5VKF16513000 5VKF16513000

Not available

CACHE DE GARDE BOUE AR

5VKF16510000 5VKF16510000

RIVET

902690806600

902690806900

3,81 $

Unit Price

BOITIER

5VKF160E0000 5VKF160E0000

Not available

AMORTISSEUR 2

5VK216390000 5VK216390000

Not available

BOLT(4GV)

970070501200

970170501200

3,46 $

Unit Price

COLLERETTE

903870580300 903870580300

Not available

PAD, SEAT

1T4247410000 1T4247410000

5,56 $

Unit Price

CLAMP

904640725900 904640725900

2,39 $

Unit Price

BAND, TOOL

4XV213760000 4XV213760000

13,44 $

Unit Price

BAND, TOOL

3YX213760000 3YX213760000

18,96 $

Unit Price

AMORTISSEUR

5VK216490000 5VK216490000

Not available

EMBLEME, YAMAHA

5VK2153A0000 5VK2153A0000

Not available

EMBLEME, YAMAHA

5VK2153A1000 5VK2153A1000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
