FUEL TANK

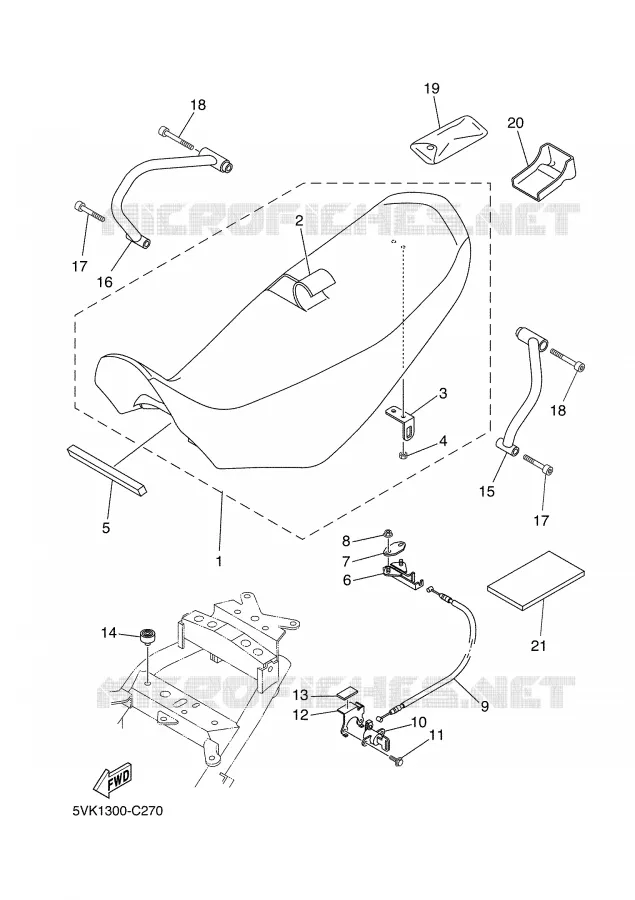

SEAT FOR YAMAHA XTX 2004

FRONT WHEEL

SELLE SEMI-BIPLACE

1D2F47700100 1D2F47700100

Not available

SELLE SEMI-BIPLACE

1D2F47701100 1D2F47701100

Not available

.COUVRE, SELLE COUVRE, SELLE

1D2F47310100 1D2F47310100

Not available

.COUVRE, SELLE COUVRE, SELLE

1D2F47311100 1D2F47311100

Not available

BRACKET, SEAT

4HM247280000 4HM247280000

10,54 $

Unit Price

NUT, FLANGE(7NB)

901790663500

957800650000

3,18 $

Unit Price

SILENT-BLOC DE SELLE

5VK247370000 5VK247370000

Not available

SEAT LOCK ASSY

4BP247800000 4BP247800000

63,71 $

Unit Price

PLAQUE

5VKF47920000 5VKF47920000

Not available

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

CABLE, CROCHET DE SIEGE

5VKF478E0000 5VKF478E0000

Not available

SEAT LOCK ASSY

2TVW24700000

3CKW24700000

104,25 $

Unit Price

BOLT, FLANGE(4DU)

950270601400 950270601400

0,89 $

Unit Price

SUPPORT, CROCHET DE SIEGE

5VKF478X0000 5VKF478X0000

Not available

SILENT-BLOC DE SELLE

5VK247470000 5VK247470000

Not available

SEAT PAD

3VLF47411000 3VLF47411000

17,24 $

Unit Price

POIGNEE DE MAINTIEN

5VKF474A0000 5VKF474A0000

Not available

POIGNEE DE MAINTIEN 2

5VKF474W0000 5VKF474W0000

Not available

BOLT, HEXAGON SOCKET HEAD(3KM)

901100823200 901100823200

6,08 $

Unit Price

BOLT, SOCKET

913170805000 913170805000

6,20 $

Unit Price

TROUSSE A OUTILS

5VKF81000000 5VKF81000000

Not available

OUTIL, SPECIAL

5VKF81160000 5VKF81160000

Not available

MANUEL D UTILISATION

5VKF8199D000 5VKF8199D000

Not available

MANUEL D UTILISATION

5VKF8199E000 5VKF8199E000

Not available

MANUEL D UTILISATION

5VKF8199F000 5VKF8199F000

Not available

MANUEL D UTILISATION

5VKF8199G000 5VKF8199G000

Not available

MANUEL D UTILISATION

5VKF8199H000 5VKF8199H000

Not available

MANUEL D UTILISATION

5VKF8199P000 5VKF8199P000

Not available

MANUEL D UTILISATION

5VKF8199S000 5VKF8199S000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Yamaha XT660X of 2004. Let us know if you have any questions.
