CYLINDER

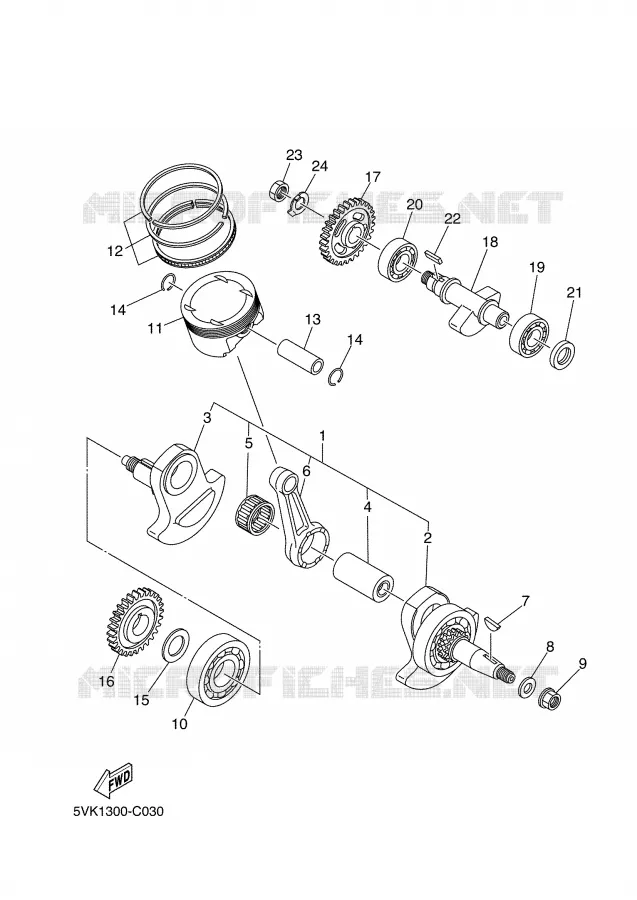

CRANKSHAFT / PISTON FOR YAMAHA XTX 2004

VALVE

VILEBREQUIN COMPLET

5VK114000000 5VK114000000

Not available

.SOUS-ENS. VILEBREQUIN 1 SOUS-ENS. VILEBREQUIN 1

5VK114010900 5VK114010900

Not available

.MASSELOTTE DE VILEBREQUIN 2 MASSELOTTE DE VILEBREQUIN 2

5VK114220000 5VK114220000

Not available

PIN, CRANK 1

5VK116810000

5VK116810100

112,76 $

Unit Price

BEARING

933108401000

933108401700

94,47 $

Unit Price

.BIELLE NUE BIELLE NUE

5VK116510000 5VK116510000

Not available

KEY, WOODRUFF

902800500100 902800500100

13,31 $

Unit Price

WASHER, PLATE

902011601300 902011601300

15,73 $

Unit Price

NUT(10L)

901791644800 901791644800

21,33 $

Unit Price

ROULEMENT

93306308Y000 93306308Y000

Not available

PISTON (STD)

5VK116310000 5VK116310000

389,31 $

Unit Price

CP - PISTON RING SET (STD)

5VK116030000 5VK116030000

108,77 $

Unit Price

PIN, PISTON

5VK116330000 5VK116330000

48,74 $

Unit Price

CIRCLIP

934502482400 934502482400

1,74 $

Unit Price

RONDELLE, PLATE

9020130X0000 9020130X0000

Not available

ENGRENAGE, MENANT

5VK115360000 5VK115360000

Not available

PIGNON, EQUILIBRAGE

5VK115310000 5VK115310000

Not available

POIDS 1

5VK114540000 5VK114540000

Not available

ROULEMENT

93306305YA00 93306305YA00

Not available

ROULEMENT

93306305X400 93306305X400

Not available

OIL SEAL (5Y1)

931012510600 931012510600

12,77 $

Unit Price

KEY, STRAIGHT (36F)

902820505800 902820505800

2,76 $

Unit Price

NUT

901701800300 901701800300

16,29 $

Unit Price

RONDELLE-FREIN

9021518X0000 9021518X0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha XT660X of 2004. Let us know if you have any questions.
