ELECTRICAL 1 FOR YAMAHA TENERE 1992

ELECTRICAL 2

BLOC D ALLUMAGE

3YF823050000 3YF823050000

Not available

SCREW PANHEAD (669)

985010501800

985800501800

1,67 $

Unit Price

WASHER(1RW)

929010560000

929070560000

2,13 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

IGNITION COIL ASSY

3TB823100000

4DN823200100

263,04 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

BOULON

970010502500 970010502500

Not available

SUPPORT, BOBINE D ALLUMAGE

3YF823160000 3YF823160000

Not available

BOLT, FLANGE

958110601000

958120601000

2,35 $

Unit Price

CLAMP(6M7)

904641012500

9046410M3200

4,13 $

Unit Price

PLUG CAP ASSY

3YF823700000 3YF823700000

82,14 $

Unit Price

RECTIFIER & REGULATOR ASSY

5A881960A000 5A881960A000

285,33 $

Unit Price

SCREW, PAN HEAD (76T)

985010602500

985170602500

2,10 $

Unit Price

YTX9BS YUASA BATTERY - SA

3PK821000000

YTX9BS000000

149,07 $

Unit Price

BAND, BATTERY

120821310000

7H3821310000

15,65 $

Unit Price

FIL, POSITIF

3YF821150000 3YF821150000

Not available

FIL, NEGATIF

3YF821160000 3YF821160000

Not available

FUSE HOLDER ASSY

2UJ821500100

2UJ821500200

16,42 $

Unit Price

FUSE

148821510000

1A0821610000

9,87 $

Unit Price

CONTACTEUR A CLEF D ANTIVOL

3YF825010000 3YF825010000

Not available

BOLT, HEXAGON (1FF

901090661400

975220651600

1,34 $

Unit Price

COMMUTATEUR CPLT

3YF825300100 3YF825300100

Not available

FAISCEAU DE FILS COMPLET

3YF825901000 3YF825901000

Not available

FUSE (10A)

1E6821510000 1E6821510000

3,11 $

Unit Price

RECTIFIER 2

3K7819800000 3K7819800000

17,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

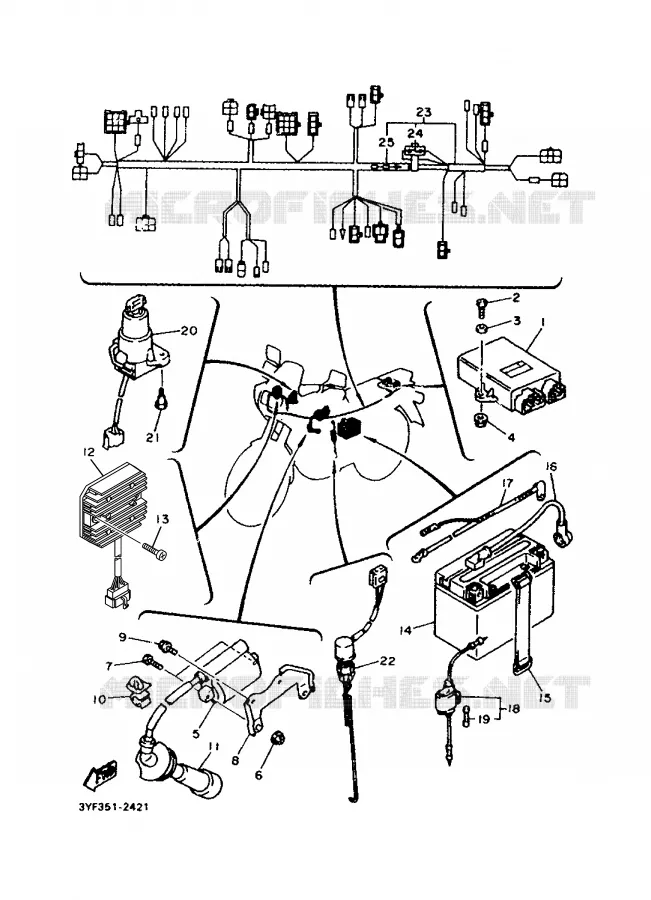

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha XTZ660 of 1992. Let us know if you have any questions.
