CARBURETOR FOR YAMAHA DRAGSTAR 2002

EXHAUST

CARBURATEUR COMPLET

5BN149002100 5BN149002100

Not available

CARBURATEUR COMPLET

5BN149003100 5BN149003100

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

5BN149012100 5BN149012100

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

5BN149013100 5BN149013100

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

5BN149022100 5BN149022100

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

5BN149023100 5BN149023100

Not available

THROTTLE SCREW SET

4TR141030000 4TR141030000

69,78 $

Unit Price

PILOT SCREW SET

4TR141050000 4TR141050000

28,36 $

Unit Price

..JEU D AIGUILLES JEU D AIGUILLES

4XP1490J0000 4XP1490J0000

Not available

STARTER SET

4DN1410A0100 4DN1410A0100

53,51 $

Unit Price

NEEDLE VALVE SET

3CF141071000 3CF141071000

38,89 $

Unit Price

JET, MAIN (#100)

1HX142312000 1HX142312000

14,65 $

Unit Price

JET, PILOT (# 20)

4KM141422000 4KM141422000

11,69 $

Unit Price

..PUITS D AIGUILLE PUITS D AIGUILLE

3DM141413400 3DM141413400

Not available

JET, MAIN (# 90)

3G2142311800 3G2142311800

14,01 $

Unit Price

SPRING, DIAPHRAGM

4VR149330000 4VR149330000

15,90 $

Unit Price

HEATER ASSY

5FU837900000

5FU837900100

48,18 $

Unit Price

HEATER ASSY

5FU837902000 5FU837902000

48,09 $

Unit Price

WASHER, PLATE

902010801600 902010801600

3,51 $

Unit Price

TERMINAL 1

4DH821030000 4DH821030000

13,53 $

Unit Price

O-RING

1HX141470000 1HX141470000

26,71 $

Unit Price

O-RING

1AE142270000 1AE142270000

11,26 $

Unit Price

HOLDER

1AE142610000 1AE142610000

17,46 $

Unit Price

GASKET

1AE142370000 1AE142370000

4,03 $

Unit Price

SCREW

1HX145650000 1HX145650000

21,27 $

Unit Price

WASHER, MAIN JET

137141530000 137141530000

4,41 $

Unit Price

..DIAPHRAGME DIAPHRAGME

4XR149400000 4XR149400000

Not available

DIAPHRAGM ASSY

4TR149400000 4TR149400000

287,84 $

Unit Price

SCREW, PAN HEAD

1UY145650000

985170401200

1,81 $

Unit Price

SCREW, ROD

3KW144860000 3KW144860000

2,16 $

Unit Price

DIAPHRAGM ASSY

22V149400000 22V149400000

45,21 $

Unit Price

SPRING

26H142750000 26H142750000

4,95 $

Unit Price

PIPE 1

4TR143480000 4TR143480000

33,83 $

Unit Price

SCREW, PAN HEAD(JG1)

985070400800 985070400800

1,90 $

Unit Price

SCREW, PAN HEAD(N15)

985070401400 985070401400

1,92 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

CLIP

4TR149370000 4TR149370000

27,02 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

PIN, FLOAT

353141860000 353141860000

3,84 $

Unit Price

FLOAT

1HX149850000 1HX149850000

55,95 $

Unit Price

SEAL

4HM142390000 4HM142390000

14,80 $

Unit Price

STARTER LEVER SET, 1

4TR1490L0000 4TR1490L0000

84,46 $

Unit Price

STOP SCREW SET

3KW1490K0000 3KW1490K0000

20,00 $

Unit Price

O-RING

36Y141470000 36Y141470000

13,25 $

Unit Price

NIPPLE

1WG142510000 1WG142510000

17,46 $

Unit Price

HOSE

4TR149870000 4TR149870000

43,13 $

Unit Price

SCREW

4KM244530000 4KM244530000

6,30 $

Unit Price

THROTTLE SENSOR ASSY

4NK858850000 4NK858850000

462,37 $

Unit Price

.FIL, SECONDAIRE FIL, SECONDAIRE

4TR815170000 4TR815170000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

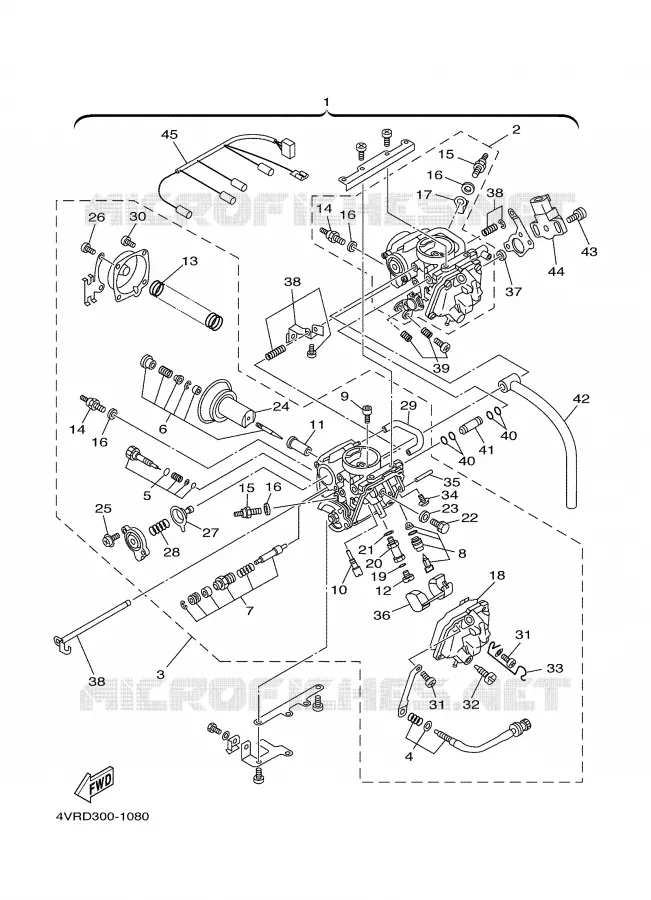

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha XVS650 of 2002. Let us know if you have any questions.
