STARTER CLUTCH

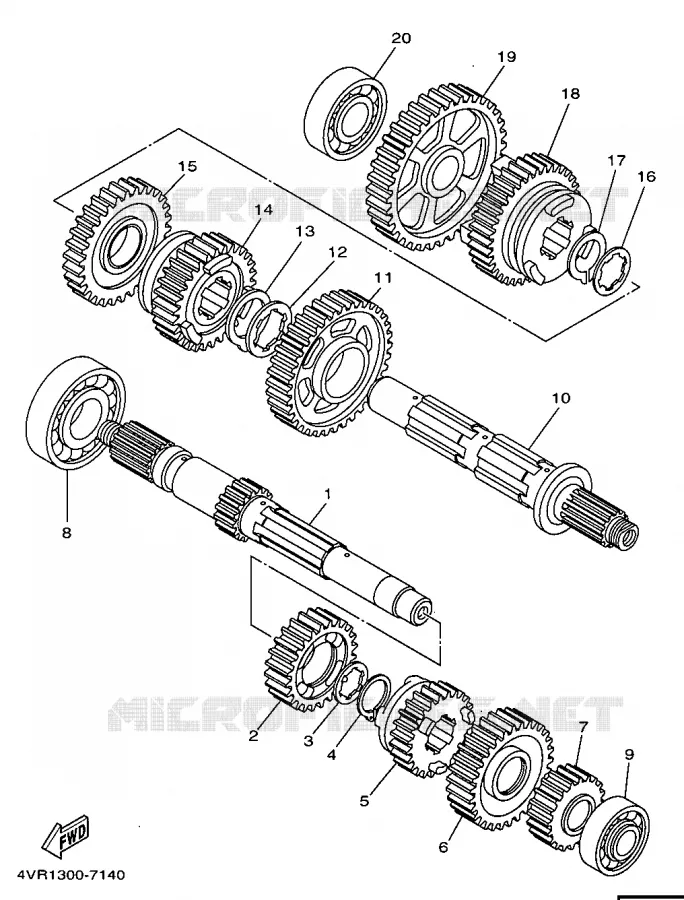

TRANSMISSION FOR YAMAHA DRAGSTAR 1998

CROSS SHAFT

AXLE, MAIN

4VR174110000 4VR174110000

300,47 $

Unit Price

GEAR, 4TH PINION

3JB171410000

22U171410000

102,24 $

Unit Price

WASHER (3J3)

902092219100 902092219100

3,39 $

Unit Price

CIRCLIP (4L0)

934402508400 934402508400

12,96 $

Unit Price

3EME PIGNON PRIMAIRE

4BR171310000 4BR171310000

Not available

GEAR, 5TH PINION

4VR171510000

4VR171510100

217,34 $

Unit Price

GEAR, 2ND PINION (20T)

4KU171210000 4KU171210000

131,56 $

Unit Price

BEARING (3Y1)

933063052500 933063052500

48,01 $

Unit Price

BEARING (5Y1)

933060040100

933060042600

40,17 $

Unit Price

DRIVE AXLE ASSY

22U174020000 22U174020000

112,44 $

Unit Price

GEAR, 2ND WHEEL (38T)

4KU172210000 4KU172210000

102,48 $

Unit Price

WASHER (3J3)

902092719200 902092719200

4,32 $

Unit Price

CIRCLIP (3J3)

934403007700 934403007700

7,43 $

Unit Price

GEAR, 5TH WHEEL

4VR172510000

4VR172510100

98,75 $

Unit Price

GEAR, 3RD WHEEL

4VR172310000 4VR172310000

256,12 $

Unit Price

WASHER (3J3)

902092219100 902092219100

3,39 $

Unit Price

CIRCLIP (4L0)

934402508400 934402508400

12,96 $

Unit Price

GEAR, 4TH WHEEL

4TR172410000 4TR172410000

91,46 $

Unit Price

GEAR, 1ST WHEEL

22U172110000 22U172110000

95,40 $

Unit Price

BEARING

933060042800

933060042700

16,22 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Yamaha XVS650 of 1998. Let us know if you have any questions.
