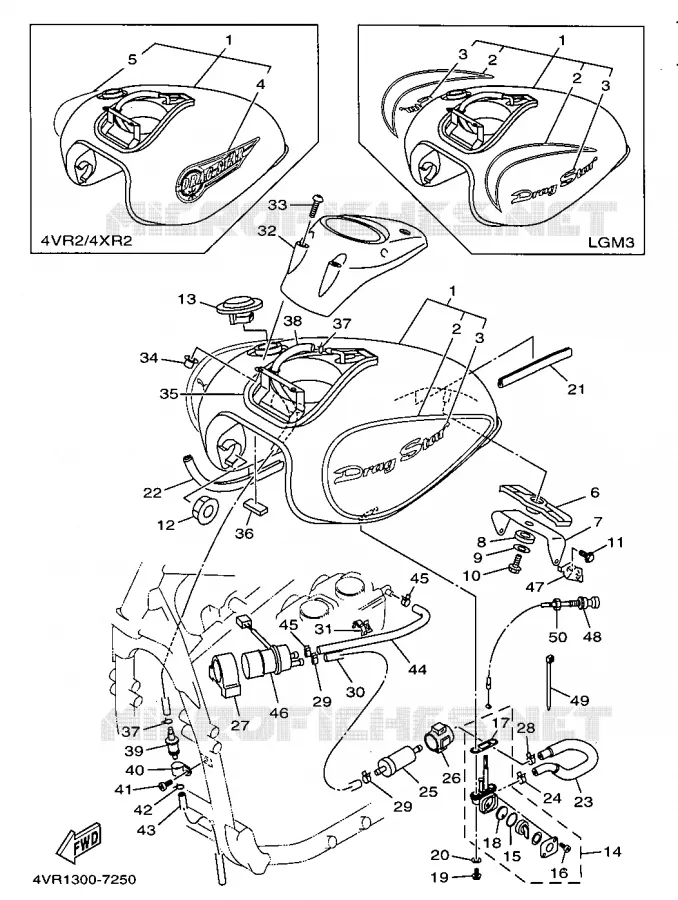

FUEL TANK FOR YAMAHA DRAGSTAR 1997

SEAT

RESERVOIR A ESSENCE

4TR241101101 4TR241101101

Not available

RESERVOIR A ESSENCE

4TR241101103 4TR241101103

Not available

RESERVOIR A ESSENCE

4TR241101104 4TR241101104

Not available

.JEU D EMBLEMES JEU D EMBLEMES

4TR242400000 4TR242400000

Not available

.JEU D EMBLEMES JEU D EMBLEMES

4VR242400000 4VR242400000

Not available

.EMBLEME 1 EMBLEME 1

4TR241612000 4TR241612000

Not available

.EMBLEME 1 EMBLEME 1

4TR241614000 4TR241614000

Not available

.EMBLEME 1 EMBLEME 1

4TR241611000 4TR241611000

Not available

.EMBLEME 2 EMBLEME 2

4TR241621000 4TR241621000

Not available

DAMPER, LOCATING 2

4TR241820000 4TR241820000

21,34 $

Unit Price

BRACKET, TANK FITTING

4TR2413Y0000 4TR2413Y0000

27,02 $

Unit Price

DAMPER, LOCATING 3

4TR241830000 4TR241830000

3,49 $

Unit Price

WASHER, PLATE

90201060S900

902010611000

4,42 $

Unit Price

BOLT, BUTTON HEAD

920170601200 920170601200

3,90 $

Unit Price

BOLT, FLANGE(JN5)

958170801600 958170801600

3,74 $

Unit Price

DAMPER, LOCATING

4H7241810000 4H7241810000

16,24 $

Unit Price

CAP ASSY

4NK246021000

4NK246022000

213,12 $

Unit Price

FUEL COCK ASSY 1

21V245001000

3JN245001000

45,21 $

Unit Price

SEAL, COCK

3AJ245340000

3AJ245340100

6,69 $

Unit Price

SCREW, PAN HEAD (J10)

978010300800

985800300800

2,10 $

Unit Price

O-RING

4X8245120000 4X8245120000

7,76 $

Unit Price

VALVE PACKING

3AJ245230000

3AC245230000

16,29 $

Unit Price

SCREW 256241430000

901490601100 901490601100

7,02 $

Unit Price

WASHER, PLATE(3MB)

902020519300

902020518700

1,68 $

Unit Price

MOLE, SIDE COVER 1

1FK2171L0000 1FK2171L0000

14,12 $

Unit Price

MOLD, FUEL TANK

4BP241880000

1HX241880100

11,63 $

Unit Price

PIPE 3

4TR243130000 4TR243130000

52,69 $

Unit Price

CLIP

904671003800 904671003800

6,80 $

Unit Price

FILTER ASSY

1FK245600000

1FK245601000

31,95 $

Unit Price

BRACKET, FILTER

1FK245660000 1FK245660000

22,23 $

Unit Price

BAND 1

4EB243980000 4EB243980000

20,47 $

Unit Price

CLIP (7K7)

904671103200

904671104400

8,37 $

Unit Price

CLIP (7K7)

904671205300

904671104400

8,37 $

Unit Price

PIPE, FUEL

4TR243110000 4TR243110000

12,02 $

Unit Price

CLAMP(4HM)

904641519200 904641519200

5,60 $

Unit Price

COVER, TOP

4TR2171A0000 4TR2171A0000

148,19 $

Unit Price

SCREW(3YF)

901490529900 901490529900

5,42 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

SEAL

4TR2414G0000 4TR2414G0000

10,04 $

Unit Price

DAMPER, SIDE COVER

3XV217170000 3XV217170000

2,39 $

Unit Price

CLIP

904671004100

90467100A100

1,27 $

Unit Price

DURITE

90445116J500 90445116J500

Not available

VANNE DE RENVOI COMPLETE

25H241800000 25H241800000

Not available

CLAMP

904611513900

904641501400

2,61 $

Unit Price

SCREW, BINDING

989070501000 989070501000

0,98 $

Unit Price

CLIP

904670910300

90467090A200

1,47 $

Unit Price

HOSE (L400)

904451034500

90445116K900

20,33 $

Unit Price

HOSE

4TR142940000 4TR142940000

19,85 $

Unit Price

CLIP (7K7)

904671205300

904671104400

8,37 $

Unit Price

FUEL PUMP COMP.

3LN139070000

3YX139070200

585,04 $

Unit Price

HOLDER, WIRE

4TR2637G0000 4TR2637G0000

9,07 $

Unit Price

CABLE, STARTER 1

4TR263310000 4TR263310000

53,05 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

NUT

1VJ263330000 1VJ263330000

4,01 $

Unit Price
