CATALOGUE

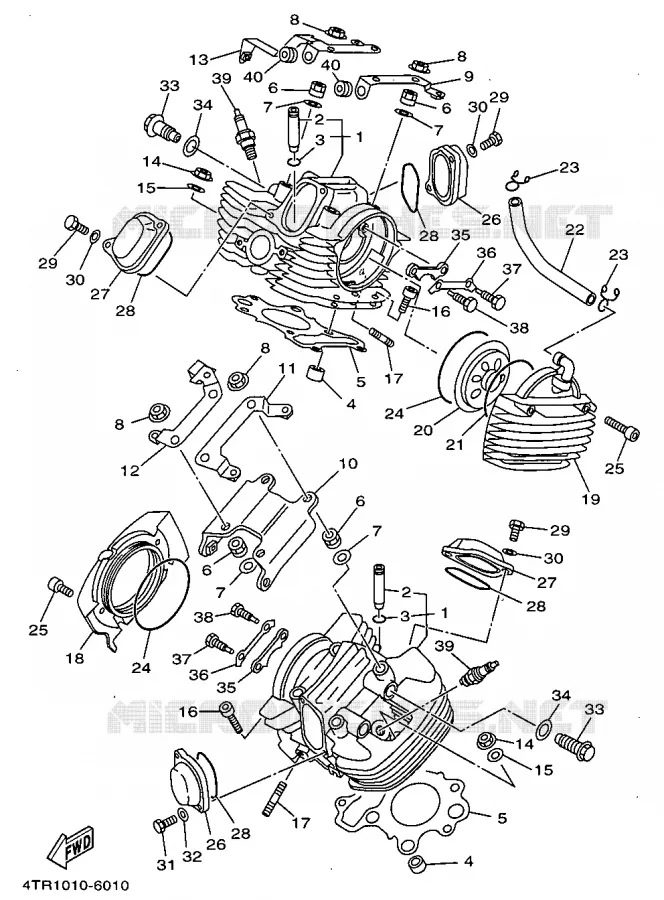

CYLINDER HEAD FOR YAMAHA DRAGSTAR 1997

CYLINDER

JEU DE CULASSE

4VR111020000 4VR111020000

Not available

JEU DE CULASSE

4VR111021000 4VR111021000

Not available

GUIDE, INTAKE VALVE

4H7111331000

4H7111331100

53,32 $

Unit Price

CIRCLIP (1L9)

934401205200 934401205200

2,28 $

Unit Price

PIN, DOWEL(3BM)

995301701600 995301701600

5,20 $

Unit Price

GASKET, CYLINDER HEAD 1

4VR111810000

4VR111811000

50,14 $

Unit Price

NUT (22U)

901791039500 901791039500

10,86 $

Unit Price

WASHER PLATE 256111740000

902011013100 902011013100

6,49 $

Unit Price

NUT, FLANGE(8AB)

957071050000 957071050000

2,65 $

Unit Price

BRACKET, CYLINDER HEAD COVER 2

4TR111420000 4TR111420000

18,55 $

Unit Price

BRACKET, CYLINDER HEAD COVER

4TR111520000 4TR111520000

60,18 $

Unit Price

PLATE

4TR1111F0000 4TR1111F0000

18,55 $

Unit Price

PLATE 2

4TR1112F0000 4TR1112F0000

37,75 $

Unit Price

BRACKET

4TR1135A0000 4TR1135A0000

62,99 $

Unit Price

NUT, FLANGE(JN5)

957070850000 957070850000

1,74 $

Unit Price

WASHER, PLATE (33N)

902010836600

90201094G100

5,17 $

Unit Price

BOLT, SOCKET

913140803000 913140803000

5,25 $

Unit Price

BOLT, STUD 3

956170863000 956170863000

5,65 $

Unit Price

COUVERCLE LATERAL DE CULASSE 3

4TR111870000 4TR111870000

Not available

COUVERCLE LATERAL DE CULASSE 3

4TR111871000 4TR111871000

Not available

COUVERCLE LATERAL DE CULASSE 2

4TR111860000 4TR111860000

Not available

COUVERCLE LATERAL DE CULASSE 2

4TR111861000 4TR111861000

Not available

PLATE, BREATHER

22U111650000 22U111650000

19,48 $

Unit Price

O-RING (22U)

932108956800 932108956800

17,27 $

Unit Price

PIPE, BREATHER 1

4TR111660000 4TR111660000

16,30 $

Unit Price

CLIP (371)

904671401500 904671401500

6,72 $

Unit Price

O-RING (22U)

932110061200 932110061200

18,88 $

Unit Price

BOLT, SOCKET

913140603500 913140603500

4,00 $

Unit Price

COVER, CYLINDER HEAD SIDE 2

22U111860000

22U111860100

29,87 $

Unit Price

COVER, CYLINDER HEAD SIDE 3

22U111870000

22U111870100

62,95 $

Unit Price

O-RING (4X7)

932106244600 932106244600

11,26 $

Unit Price

BOLT, HEXAGON

970270601600

970170601600

2,42 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

BOLT, HEXAGON DEEP RECESS

970240601600

97D950601600

1,96 $

Unit Price

WASHER(6TA)

929040660000

929070660000

1,83 $

Unit Price

BOLT, UNION(4TR)

904011616600 904011616600

23,51 $

Unit Price

GASKET (4X7)

904301716800 904301716800

12,02 $

Unit Price

PLATE

22U1111F0100 22U1111F0100

5,20 $

Unit Price

WASHER, LOCK

902150822900 902150822900

4,32 $

Unit Price

BOLT (26M)

901090878200 901090878200

4,31 $

Unit Price

BOLT (26M)

901090878100 901090878100

4,71 $

Unit Price

SPARK PLUG DPR7EA-9

947010026200 947010026200

5,32 $

Unit Price

GROMMET (462)

904801301800 904801301800

6,43 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha XVS650 of 1997. Let us know if you have any questions.
