STEERING

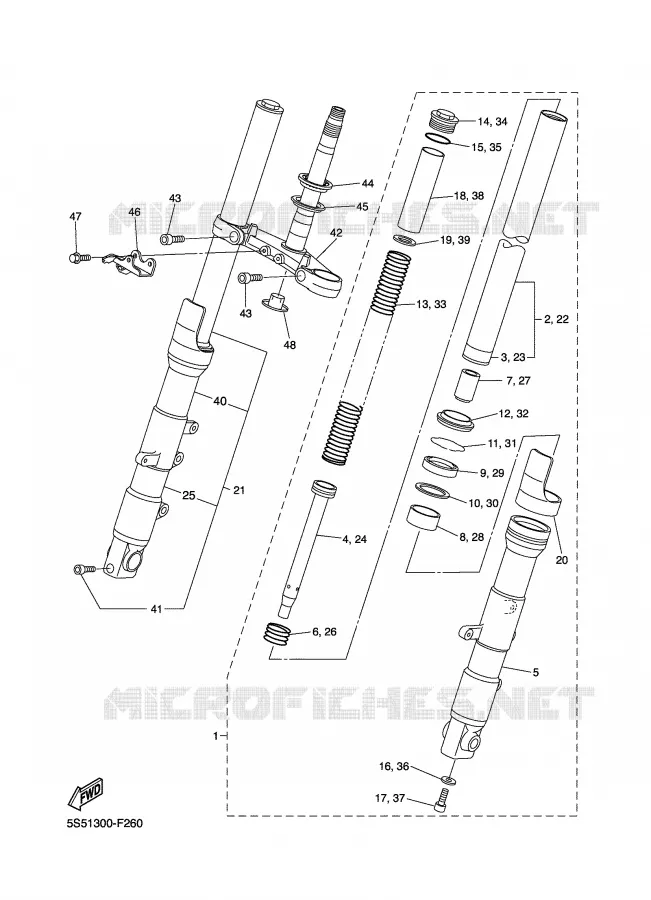

FRONT FORK FOR YAMAHA FZ6 S2 2007

FUEL TANK

FRONT FORK ASSY (L.H)

4S8231020000 4S8231020000

901,60 $

Unit Price

INNER TUBE COMP.1

4S8231100000 4S8231100000

307,92 $

Unit Price

METAL, SLIDE 2

4TX23135B000 4TX23135B000

20,40 $

Unit Price

CYLINDER COMP., FRONT FORK

5VX231700000 5VX231700000

180,43 $

Unit Price

LEFT OUTER TUBE

4S8231260000 4S8231260000

Not available

SPRING, REBOUND

4TX231510000 4TX231510000

12,70 $

Unit Price

.BROCHE, CONIQUE BROCHE, CONIQUE

4TX231730000 4TX231730000

Not available

METAL, SLIDE 1

4TX23125B000 4TX23125B000

19,28 $

Unit Price

OIL SEAL

5VX231450000 5VX231450000

18,90 $

Unit Price

GUIDE, COVER UPPER

4TX231150000 4TX231150000

12,15 $

Unit Price

CLIP, OIL SEAL

4TX231560000 4TX231560000

9,01 $

Unit Price

SEAL, DUST

4TX231440000

4TX231440100

25,21 $

Unit Price

SPRING, FRONT FORK

5VX231410000 5VX231410000

61,39 $

Unit Price

.BOULON BOULON

5VX2311H0000 5VX2311H0000

Not available

O-RING (21A)

932103450400

932103463300

10,22 $

Unit Price

GASKET (5R6)

904301017100 904301017100

6,32 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

9011010N5200 9011010N5200

9,66 $

Unit Price

SPACER

5VX231180000 5VX231180000

20,08 $

Unit Price

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

4S8231420000 4S8231420000

Not available

COVER

4TX2331G0000 4TX2331G0000

16,01 $

Unit Price

FOURCHE AVANT COMPLETE (D)

4S8231030000 4S8231030000

Not available

INNER TUBE COMP.1

4S8231100000 4S8231100000

307,92 $

Unit Price

METAL, SLIDE 2

4TX23135B000 4TX23135B000

20,40 $

Unit Price

CYLINDER COMP., FRONT FORK

5VX231700000 5VX231700000

180,43 $

Unit Price

.BAS DE FOURCHE(DROIT) BAS DE FOURCHE(DROIT)

4S8231360000 4S8231360000

Not available

SPRING, REBOUND

4TX231510000 4TX231510000

12,70 $

Unit Price

.BROCHE, CONIQUE BROCHE, CONIQUE

4TX231730000 4TX231730000

Not available

METAL, SLIDE 1

4TX23125B000 4TX23125B000

19,28 $

Unit Price

OIL SEAL

5VX231450000 5VX231450000

18,90 $

Unit Price

GUIDE, COVER UPPER

4TX231150000 4TX231150000

12,15 $

Unit Price

CLIP, OIL SEAL

4TX231560000 4TX231560000

9,01 $

Unit Price

SEAL, DUST

4TX231440000

4TX231440100

25,21 $

Unit Price

SPRING, FRONT FORK

5VX231410000 5VX231410000

61,39 $

Unit Price

.BOULON BOULON

5VX2311H0000 5VX2311H0000

Not available

O-RING (21A)

932103450400

932103463300

10,22 $

Unit Price

GASKET (5R6)

904301017100 904301017100

6,32 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

9011010N5200 9011010N5200

9,66 $

Unit Price

SPACER

5VX231180000 5VX231180000

20,08 $

Unit Price

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

4S8231420000 4S8231420000

Not available

COVER

4TX2331G0000 4TX2331G0000

16,01 $

Unit Price

BOLT, SOCKET

913140804500 913140804500

3,48 $

Unit Price

UNDER BRACKET COMP.

5VX233400000 5VX233400000

447,30 $

Unit Price

BOLT, SOCKET

913121002500

913141002500

4,97 $

Unit Price

BEARING(3FV)

933999993200 933999993200

72,60 $

Unit Price

SEAL, STEERING

3FV234620000 3FV234620000

23,86 $

Unit Price

SUPPORT, CLIGNOTANT 1

1B3233271000 1B3233271000

Not available

BOLT, FLANGE

958170601200 958170601200

1,39 $

Unit Price

COVER, LOWER 1

4KM231230100 4KM231230100

16,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
