INTAKE

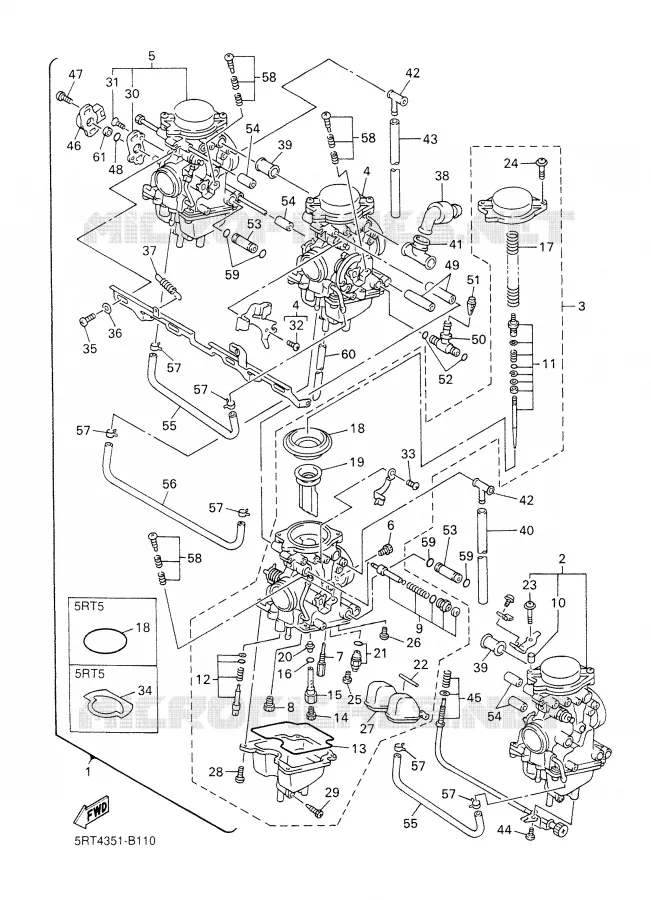

CARBURETOR FOR YAMAHA FAZER 2003

EXHAUST

CARBURATEUR COMPLET

5RT149000000 5RT149000000

Not available

CARBURATEUR COMPLET

5RT149001000 5RT149001000

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

5RT149010000 5RT149010000

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

5RT149011000 5RT149011000

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

5RT149020000 5RT149020000

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

5RT149021000 5RT149021000

Not available

.CARBURATEUR 3 COMPLET CARBURATEUR 3 COMPLET

5RT149030000 5RT149030000

Not available

.CARBURATEUR 3 COMPLET CARBURATEUR 3 COMPLET

5RT149031000 5RT149031000

Not available

.CARBURATEUR 4 COMPLET CARBURATEUR 4 COMPLET

5RT149040000 5RT149040000

Not available

.CARBURATEUR 4 COMPLET CARBURATEUR 4 COMPLET

5RT149041000 5RT149041000

Not available

..GICLEUR, PRINCIPAL GICLEUR, PRINCIPAL

1HX142312600 1HX142312600

Not available

..GICLEUR, RALENTI GICLEUR, RALENTI

4KM141421200 4KM141421200

Not available

JET, MAIN (# 0)

3G2142310000 3G2142310000

13,97 $

Unit Price

STARTER SET

5DM1410A0000 5DM1410A0000

47,95 $

Unit Price

RING

4KM141940000 4KM141940000

12,23 $

Unit Price

..JEU D AIGUILLES JEU D AIGUILLES

5DM1490J0000 5DM1490J0000

Not available

..JEU D AIGUILLES JEU D AIGUILLES

5DM1490J1000 5DM1490J1000

Not available

PILOT SCREW SET

5MP141050000 5MP141050000

16,64 $

Unit Price

O-RING

5DM145610000 5DM145610000

19,72 $

Unit Price

JET, MAIN (#115)

3G2142312300

3G21423123A0

14,29 $

Unit Price

HOLDER

5DM142610000 5DM142610000

32,86 $

Unit Price

O-RING

583145610000 583145610000

10,59 $

Unit Price

SPRING, DIAPHRAGM

5DM149330000 5DM149330000

11,51 $

Unit Price

..RESSORT, DIAPHRAGME RESSORT, DIAPHRAGME

5DM149332000 5DM149332000

Not available

..JOINT TORIQUE JOINT TORIQUE

5DM141470000 5DM141470000

Not available

DIAPHRAGM ASSY

5DM149400000 5DM149400000

85,02 $

Unit Price

..BOISSEAU 2 BOISSEAU 2

5DM141130000 5DM141130000

Not available

NOZZLE, MAIN

5DM141414000 5DM141414000

38,35 $

Unit Price

NEEDLE VALVE SET

4SV141071000 4SV141071000

52,89 $

Unit Price

PIN, FLOAT

127141860000 127141860000

8,54 $

Unit Price

SCREW, PAN HEAD(6B0)

978900501600

978850501600

6,78 $

Unit Price

SCREW

4KM142160000 4KM142160000

8,90 $

Unit Price

SCREW, PAN HEAD(JG1)

985070400800 985070400800

1,90 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

FLOAT

5DM149850000 5DM149850000

86,75 $

Unit Price

SCREW, PAN HEAD (E56)

985800401000 985800401000

5,23 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

..SUPPORT 1 SUPPORT 1

5DM142911000 5DM142911000

Not available

FLAT HEAD SCREW

987070400800 987070400800

0,59 $

Unit Price

SCREW, PAN HEAD(3LA)

985070501000

985170501000

1,49 $

Unit Price

GASKET, EXHAUST

985070500800 985070500800

1,93 $

Unit Price

..SIEGE, RESSORT SIEGE, RESSORT

5DM149361000 5DM149361000

Not available

SCREW

5DM145650000 5DM145650000

3,87 $

Unit Price

PACKING

4NK143270000 4NK143270000

3,47 $

Unit Price

SPRING

5DM149350000 5DM149350000

17,00 $

Unit Price

.TAMIS, FILTRE 2 TAMIS, FILTRE 2

5DM245150000 5DM245150000

Not available

.DURITE DURITE

5DM143480000 5DM143480000

Not available

.DURITE DURITE

5DM143490000 5DM143490000

Not available

.DURITE DURITE

5DM143960000 5DM143960000

Not available

PIPE

5DM143961000 5DM143961000

14,46 $

Unit Price

.DURITE DURITE

4XV904451000 4XV904451000

Not available

SCREW, WITH WASHER

978900500800

979800510800

2,69 $

Unit Price

.JEU DE VIS D ACCELERATION JEU DE VIS D ACCELERATION

5DM141030000 5DM141030000

Not available

THROTTLE SENSOR ASSY

4SV858850000

4HD858850000

475,67 $

Unit Price

.VIS VIS

4HM142160000 4HM142160000

Not available

WASHER

4KG142850000 4KG142850000

2,41 $

Unit Price

.DURITE DURITE

4XV141495000 4XV141495000

Not available

.RACCORD RACCORD

5DM142510000 5DM142510000

Not available

NET, FILTER

1KT149940000 1KT149940000

20,83 $

Unit Price

SEAL

3EN149970000 3EN149970000

15,55 $

Unit Price

PIPE

5DM141480000 5DM141480000

13,28 $

Unit Price

.DURITE DURITE

5DM141490000 5DM141490000

Not available

HOSE

5DM149870000 5DM149870000

30,03 $

Unit Price

.DURITE DURITE

5DM149871000 5DM149871000

Not available

CLIP

5DM149190000 5DM149190000

6,48 $

Unit Price

STOP SCREW SET

3EN1490K0000

4KM1490K0000

19,55 $

Unit Price

O-RING

36Y141470000 36Y141470000

13,25 $

Unit Price

.DURITE DURITE

5DM143481000 5DM143481000

Not available

SEAL

4HM142390000 4HM142390000

14,80 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
