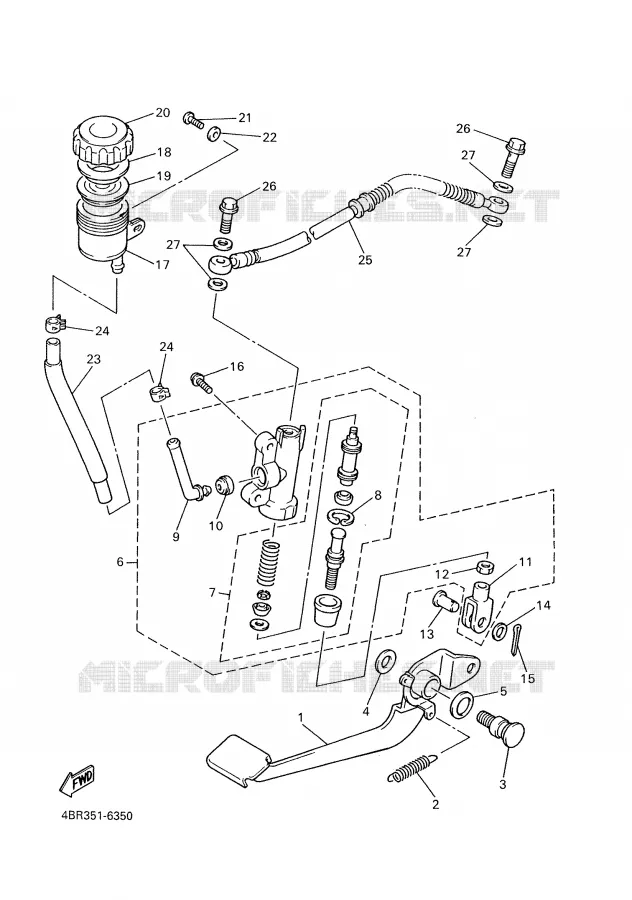

REAR BRAKE MASTER CYLINDER FOR YAMAHA XJS DIVERSION 2002

COVER 1

BRAKE PEDAL

4EB272110000 4EB272110000

67,84 $

Unit Price

SPRING, TENSION (2X4)

905062019200 905062019200

12,96 $

Unit Price

SHAFT

4BP272610000

4BP272611000

16,35 $

Unit Price

WASHER, PLAIN(3BM)

929071020000 929071020000

3,94 $

Unit Price

WASHER, WAVE(6T4)

902061408600 902061408600

9,66 $

Unit Price

RR. MASTER CYLINDER ASSY.

4BP2583V0000

4BP2583V0100

285,88 $

Unit Price

CYLINDER KIT, MASTER

4BPW00425000

3TUW00425100

77,38 $

Unit Price

CIRCLIP, MASTER CYLINDER

3LN2585G0000 3LN2585G0000

4,14 $

Unit Price

JOINT

4BP2582A0000 4BP2582A0000

16,94 $

Unit Price

O-RING

4BP2585F0000

Not available

JOINT

4BP272220000

4BP272220200

20,46 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

PIN, CLEVIS(2YK)

902400812400 902400812400

12,96 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

BOLT, BUTTON HEAD(3YF)

920140802500 920140802500

7,08 $

Unit Price

TANK, RESERVOIR

31A258940100 31A258940100

21,09 $

Unit Price

BUSH, DIAPHRAGM

2GU258550000 2GU258550000

32,68 $

Unit Price

DIAPHRAGM, RESERVER

360258540100 360258540100

10,87 $

Unit Price

CAP, RESERVOIR

2KF258525000 2KF258525000

17,20 $

Unit Price

SCREW, PAN HEAD(3GW)

985070601800 985070601800

0,68 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

RESERVOIR HOSE

4BP258950100 4BP258950100

20,16 $

Unit Price

CLIP (5K4)

904671405700 904671405700

3,84 $

Unit Price

DURITE DE FREIN

4BP2581K0100 4BP2581K0100

Not available

BOLT, UNION(3GM)

904011015900 904011015900

11,58 $

Unit Price

WASHER, PLATE(481)

902011011800 902011011800

6,40 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Yamaha XJ600S of 2002. Let us know if you have any questions.
