INTAKE

CARBURETOR FOR YAMAHA XTE 2000

EXHAUST

CARBURATEUR COMPLET

4PT143011000 4PT143011000

Not available

GASKET

5Y1141980000 5Y1141980000

15,34 $

Unit Price

GASKET

360245120000 360245120000

9,51 $

Unit Price

FLOAT

2JN143850000

25N143850000

36,82 $

Unit Price

PIN, FLOAT

689143860000

6E5143860100

10,47 $

Unit Price

GASKET, FLOAT CHAMBER

5Y1143840000 5Y1143840000

27,45 $

Unit Price

SCREW, PANHEAD (796)

985800401600 985800401600

0,56 $

Unit Price

SCREW, PAN HEAD(GA5)

985010401400

985800401400

3,88 $

Unit Price

YBS67-4 WASHER, SPRING

929020410000

929900410000

1,68 $

Unit Price

.DURITE

1VJ141970000 1VJ141970000

Not available

.RONDELLE PLATE

1JK143570000 1JK143570000

Not available

SCREW, LEVER FITTING

214245350000 214245350000

5,02 $

Unit Price

O-RING

5Y1145720000 5Y1145720000

6,68 $

Unit Price

.RESSORT, BOISSEAU

1XL141310000 1XL141310000

Not available

.RONDELLE

5Y1143560000 5Y1143560000

Not available

.ECROU

5Y1143581000 5Y1143581000

Not available

GASKET

5Y1145360000 5Y1145360000

15,34 $

Unit Price

SCREW, PAN HEAD (E56)

985010401000

985800401000

5,23 $

Unit Price

SCREW, PAN HEAD (7H3)

5Y1142160000

985800402000

7,43 $

Unit Price

NUT

30X143580000 30X143580000

2,63 $

Unit Price

AIR SCREW SET

14T143230000

14T141040000

11,92 $

Unit Price

.DURITE

1VJ141970000 1VJ141970000

Not available

DIAPHRAGM ASSY

1JK149400100 1JK149400100

136,37 $

Unit Price

.COUVERCLE 1

2JN142930000 2JN142930000

Not available

BRACKET 1

4PT142911000 4PT142911000

287,49 $

Unit Price

WASHER

7KF142270000 7KF142270000

16,17 $

Unit Price

YBS67-4 WASHER, SPRING

929900410000 929900410000

1,68 $

Unit Price

.RESSORT

1VJ142860000 1VJ142860000

Not available

BOLT, HOLDING

7KF141620000 7KF141620000

19,72 $

Unit Price

PIPE

5Y1143490000 5Y1143490000

5,11 $

Unit Price

PIPE

30X141480000 30X141480000

10,00 $

Unit Price

SCREW, PAN HEAD(62X)

985010501000

978850501000

4,00 $

Unit Price

SCREW, LEVER FITTING

214245350000 214245350000

5,02 $

Unit Price

PIPE

5Y1141490000 5Y1141490000

8,45 $

Unit Price

CLIP

5Y1141590000 5Y1141590000

4,81 $

Unit Price

JET, MAIN (# 120)

288143436000 288143436000

14,69 $

Unit Price

JET, MAIN (# 130)

288143436500 288143436500

14,00 $

Unit Price

JET, MAIN (# 140)

288143437000 288143437000

14,69 $

Unit Price

MAIN NOZZLE

2KF143410000 2KF143410000

33,53 $

Unit Price

.BOISSEAU 2

1JK143135500 1JK143135500

Not available

JET, PILOT (#46)

43F143422300 43F143422300

27,23 $

Unit Price

.GICLEUR, PRINCIPAL

30X143436000 30X143436000

Not available

.PUITS D AIGUILLE

2KF143550000 2KF143550000

Not available

PILOT SCREW SET

51Y141050000 51Y141050000

11,87 $

Unit Price

NEEDLE VALVE SET

2JN141070000 2JN141070000

41,06 $

Unit Price

.JEU DE VIS DE BUTEE

3GV1490K1000 3GV1490K1000

Not available

THROTTLE SCREW SET

2NX141030000 2NX141030000

20,71 $

Unit Price

DIAPHRAGM SET, 1

1JK1490A0000 1JK1490A0000

37,94 $

Unit Price

.JEU D AIGUILLES

4PT1490J1000 4PT1490J1000

Not available

.JEU D AIGUILLES

4PT1490J0000 4PT1490J0000

Not available

PLUNGER, STARTER

2KF143710100 2KF143710100

129,35 $

Unit Price

DURITE

3TD141970000 3TD141970000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

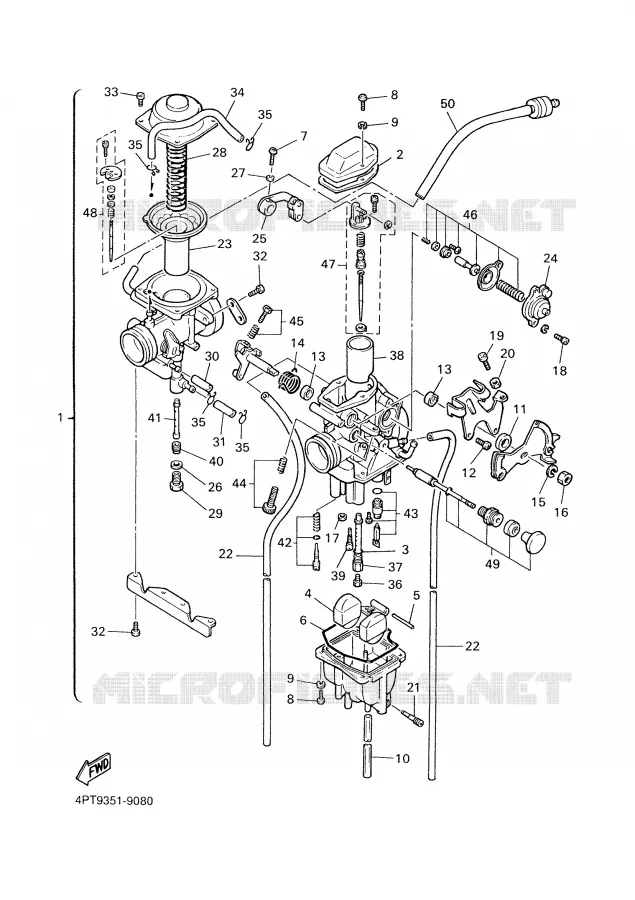

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha XT600E of 2000. Let us know if you have any questions.

Select your Yamaha XTE model from 2000
