Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

INTAKE

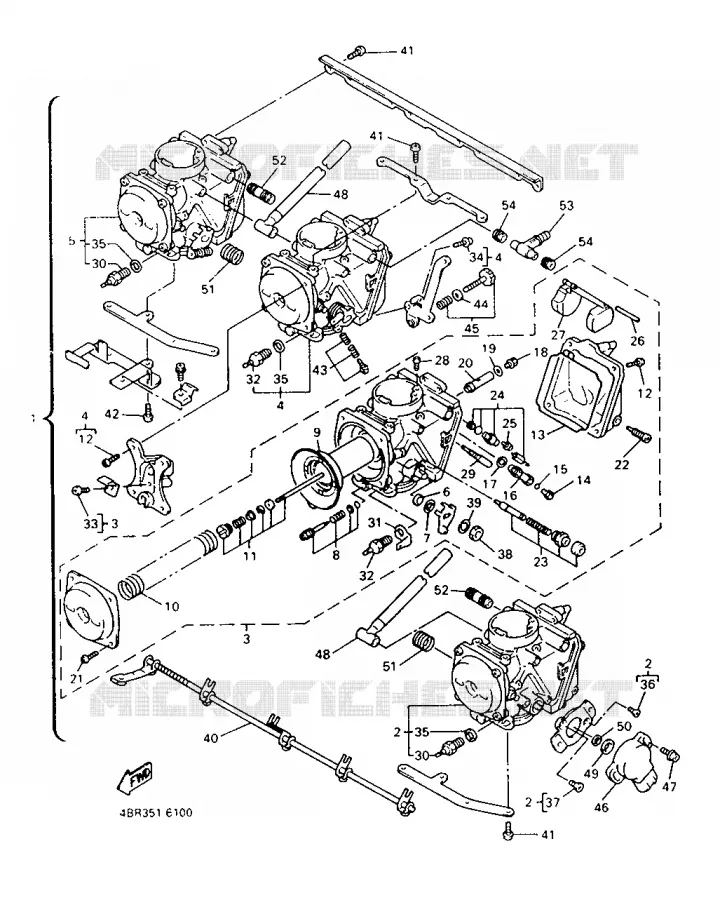

CARBURETOR FOR YAMAHA XJS DIVERSION 1999

EXHAUST

CARBURATEUR COMPLET

4DS149002100 4DS149002100

Not available

CARBURATEUR COMPLET

4EB149002200 4EB149002200

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

4DS149012100 4DS149012100

Not available

.CARBURATEUR 1 COMPLET CARBURATEUR 1 COMPLET

4EB149012200 4EB149012200

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

4DS149022100 4DS149022100

Not available

.CARBURATEUR 2 COMPLET CARBURATEUR 2 COMPLET

4EB149022200 4EB149022200

Not available

.CARBURATEUR 3 COMPLET CARBURATEUR 3 COMPLET

4DS149032100 4DS149032100

Not available

.CARBURATEUR 3 COMPLET CARBURATEUR 3 COMPLET

4EB149032200 4EB149032200

Not available

.CARBURATEUR 4 COMPLET CARBURATEUR 4 COMPLET

4DS149042100 4DS149042100

Not available

.CARBURATEUR 4 COMPLET CARBURATEUR 4 COMPLET

4EB149042200 4EB149042200

Not available

SEAL

256149970000 256149970000

8,54 $

Unit Price

WASHER (3H1)

1A8149530000 1A8149530000

3,72 $

Unit Price

PILOT SCREW SET

12R141050000 12R141050000

17,93 $

Unit Price

..DIAPHRAGME DIAPHRAGME

4DS149400000 4DS149400000

Not available

..DIAPHRAGME DIAPHRAGME

4EB149400000 4EB149400000

Not available

SPRING, DIAPHRAGM

1HX149330000 1HX149330000

21,98 $

Unit Price

..RESSORT, DIAPHRAGME RESSORT, DIAPHRAGME

4DS149330000 4DS149330000

..JEU D AIGUILLES JEU D AIGUILLES

4DS1490J0000 4DS1490J0000

Not available

SCREW, PAN HEAD(GA5)

985010401400

985800401400

3,88 $

Unit Price

O-RING

1HX141470000 1HX141470000

26,71 $

Unit Price

JET, MAIN (#100)

620142312000 620142312000

14,94 $

Unit Price

O-RING

1AE142270000 1AE142270000

11,26 $

Unit Price

HOLDER

1AE142610000 1AE142610000

17,46 $

Unit Price

GASKET

1AE142370000 1AE142370000

4,03 $

Unit Price

SCREW

1HX145650000 1HX145650000

21,27 $

Unit Price

..RONDELLE, GICLEUR PRINCIPAL RONDELLE, GICLEUR PRINCIPAL

134141530000 134141530000

Not available

MAIN NOZZLE(0-0)

3DM141413000 3DM141413000

39,47 $

Unit Price

SCREW, PAN HEAD (713)

985010400800

985800400800

3,58 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

..JEU DE STATERS JEU DE STATERS

4DU1410A0000 4DU1410A0000

Not available

NEEDLE VALVE SET

3CF141071000 3CF141071000

38,89 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

PIN, FLOAT

353141860000 353141860000

3,84 $

Unit Price

FLOAT

1HX149850000 1HX149850000

55,95 $

Unit Price

..GICLEUR, PRINCIPAL (135) GICLEUR, PRINCIPAL (135)

1HX142312700 1HX142312700

Not available

JET, PILOT (# 15)

22F141421500 22F141421500

11,68 $

Unit Price

HEATER ASSY

4EB837900000 4EB837900000

53,93 $

Unit Price

TERMINAL 1

4DH821030000 4DH821030000

13,53 $

Unit Price

SCREW, PAN HEAD (7G3)

985020500800

985800500800

5,61 $

Unit Price

..VIS VIS

4DU141250000 4DU141250000

Not available

..RONDELLE, PLATE RONDELLE, PLATE

90201080S800 90201080S800

Not available

..VIS, TETE PLATE VIS, TETE PLATE

987060300800 987060300800

Not available

SCREW, FLAT

987060501000

987070501000

0,68 $

Unit Price

NUT

812145940000 812145940000

3,08 $

Unit Price

WASHER(JN5)

929020810000

929070810000

2,17 $

Unit Price

.JEU DE LEVIERS DE STARTER, 1 JEU DE LEVIERS DE STARTER, 1

4BR1490L0000 4BR1490L0000

Not available

SCREW, PAN HEAD(62X)

985020501000

978850501000

4,00 $

Unit Price

SCREW, PAN HEAD (646)

985020501200

985800501200

3,17 $

Unit Price

STOP SCREW SET

3KW1490K0000 3KW1490K0000

20,00 $

Unit Price

WASHER, PLUG SCREW

22F141170000 22F141170000

3,84 $

Unit Price

THROTTLE SCREW SET

1HX141030000 1HX141030000

19,48 $

Unit Price

THROTTLE SENSOR ASSY

4HD858850000 4HD858850000

475,67 $

Unit Price

.VIS VIS

4HM142160000 4HM142160000

Not available

.DURITE DURITE

4BR149871000 4BR149871000

Not available

SEAL

4HM142390000 4HM142390000

14,80 $

Unit Price

WASHER

4KG142850000 4KG142850000

2,41 $

Unit Price

.RESSORT, BOISSEAU RESSORT, BOISSEAU

1HX141310000 1HX141310000

Not available

.RACCORD RACCORD

4BR143890000 4BR143890000

Not available

NIPPLE

3LN142510000 3LN142510000

57,82 $

Unit Price

SEAL

3EN149970000 3EN149970000

15,55 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha XJ600S of 1999. Let us know if you have any questions.
