CYLINDER HEAD FOR YAMAHA XTE 1997

CYLINDER

JEU DE CULASSE

3TB111010100 3TB111010100

Not available

GUIDE, INTAKE VALVE

4H7111331000

4H7111331100

53,32 $

Unit Price

CIRCLIP (1L9)

934401205200 934401205200

2,28 $

Unit Price

BOLT, STUD(1JK)

901160647500 901160647500

10,11 $

Unit Price

BOLT, STUD (5Y1)

901161037800 901161037800

19,14 $

Unit Price

PIN, DOWEL(2VG)

995301011600 995301011600

2,75 $

Unit Price

PLUG, STRAIGHT SCREW (5H0)

903401406800 903401406800

22,47 $

Unit Price

O-RING(36Y)

932101365700 932101365700

3,94 $

Unit Price

ABSORBER

583111270000 583111270000

9,51 $

Unit Price

SPARK PLUG DPR8EA-9

947010024100 947010024100

5,32 $

Unit Price

BOLT, SOCKET

913170612500 913170612500

20,26 $

Unit Price

BOLT, SOCKET

913170611500 913170611500

18,04 $

Unit Price

BOLT, SOCKET

913170602500 913170602500

4,03 $

Unit Price

BOLT, SOCKET

913170604000 913170604000

5,20 $

Unit Price

BOLT, SOCKET

913170605500 913170605500

5,20 $

Unit Price

BOLT(2NX)

90109063E900 90109063E900

5,35 $

Unit Price

BOLT, SOCKET

913170605000 913170605000

5,20 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

COVER, CYLINDER HEAD SIDE

1L9111860000 1L9111860000

17,07 $

Unit Price

O-RING (341)

932103217200 932103217200

7,71 $

Unit Price

COVER, CYLINDER HEAD SIDE 3

5Y1111870000 5Y1111870000

19,56 $

Unit Price

O-RING (4X7)

932106252300

932106244600

11,26 $

Unit Price

BOLT, SOCKET

913170601800 913170601800

4,00 $

Unit Price

PIGNON

1JK178000100 1JK178000100

Not available

SCREW, FLAT

987070603000 987070603000

2,10 $

Unit Price

BOLT, SOCKET

913170602500 913170602500

4,03 $

Unit Price

BRIDE

904622021700 904622021700

Not available

BOLT (583 TACHOMETER)

901090641800 901090641800

3,94 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

PLUG(3AJ)

903382220700 903382220700

14,94 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

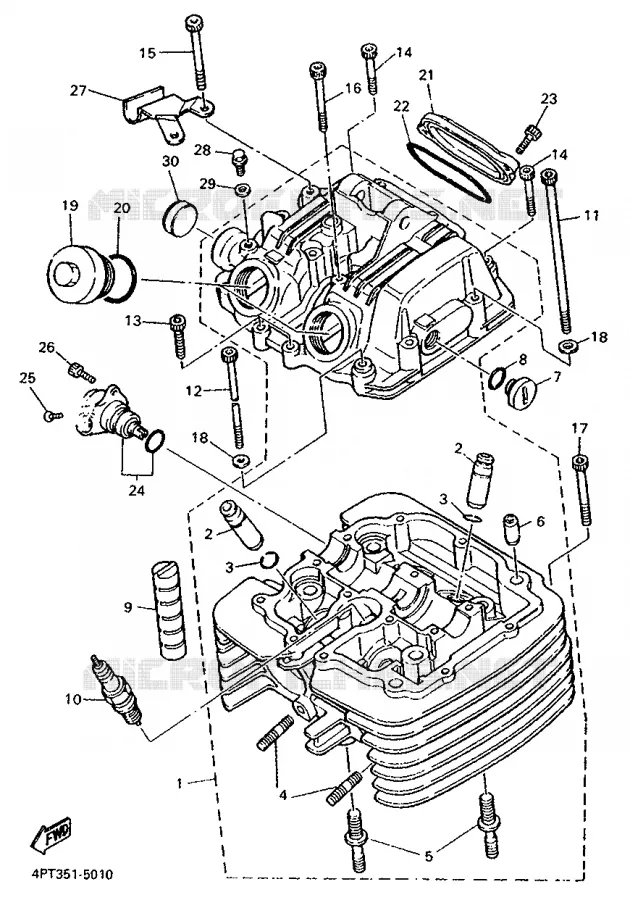

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha XT600E of 1997. Let us know if you have any questions.
