FRONT MASTER CYLINDER

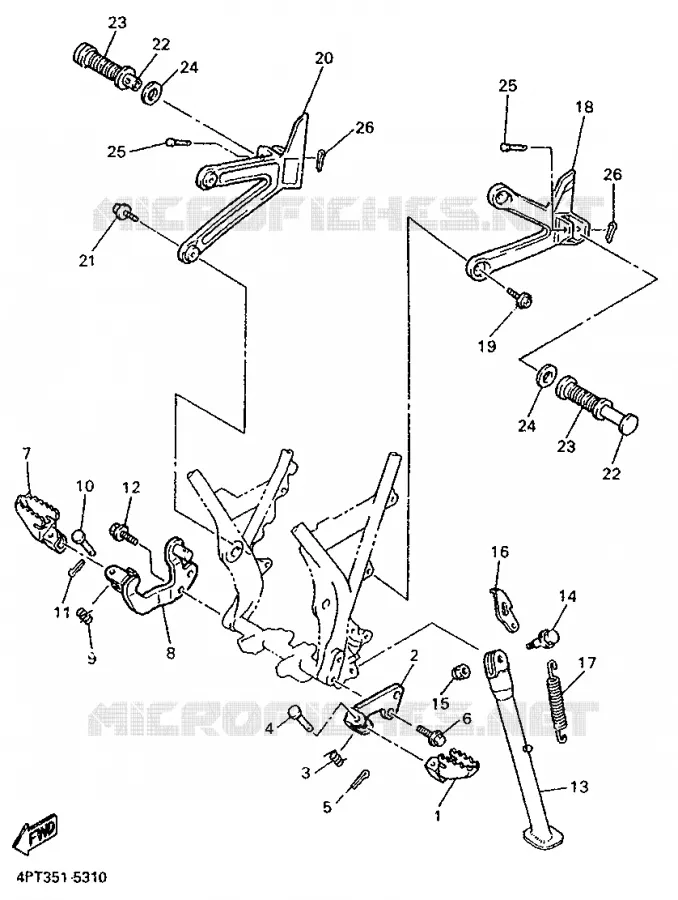

STAND / FOOTREST FOR YAMAHA XTE 1996

REAR BRAKE MASTER CYLINDER

FOOTREST 1

22W274110190 22W274110190

26,62 $

Unit Price

SUPPORT, REPOSE-PIEDS 1

34L2741200R4 34L2741200R4

Not available

SPRING, TORSION (214-27426-00)

905082002300 905082002300

7,77 $

Unit Price

BOULON, A GOUPILLE

902400809600 902400809600

Not available

PIN, COTTER

914902502000 914902502000

3,93 $

Unit Price

BOLT, FLANGE(3GD)

901051028500

958171002500

7,09 $

Unit Price

FOOTREST 2

22W274210190 22W274210190

28,65 $

Unit Price

SUPPORT, REPOSE-PIEDS 2

2KF2742200R4 2KF2742200R4

Not available

SPRING, TORSION (214-27426-00)

905082002300 905082002300

7,77 $

Unit Price

BOULON, A GOUPILLE

902400809600 902400809600

Not available

PIN, COTTER

914902502000 914902502000

3,93 $

Unit Price

BOLT, FLANGE(3GD)

901051028500

958171002500

7,09 $

Unit Price

BEQUILLE, LATERALE

4PT273110000 4PT273110000

Not available

FLANGE BOLT

901051261600 901051261600

13,96 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

LINK, SIDE STAND

5Y1273150000 5Y1273150000

5,83 $

Unit Price

RESSORT, TENSION

905073202000 905073202000

Not available

ETRIER 4

4PT2741L0000 4PT2741L0000

Not available

BOLT (3LD)

90109087F100 90109087F100

3,73 $

Unit Price

ETRIER 5

4PT2742L0000 4PT2742L0000

Not available

BOLT (3LD)

90109087F100 90109087F100

3,73 $

Unit Price

FOOTREST, REAR 1

2GV274310000 2GV274310000

18,34 $

Unit Price

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

PIN, CLEVIS(1HX)

917010604000 917010604000

2,16 $

Unit Price

PIN, COTTER

914902002500 914902002500

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha XT600E of 1996. Let us know if you have any questions.
