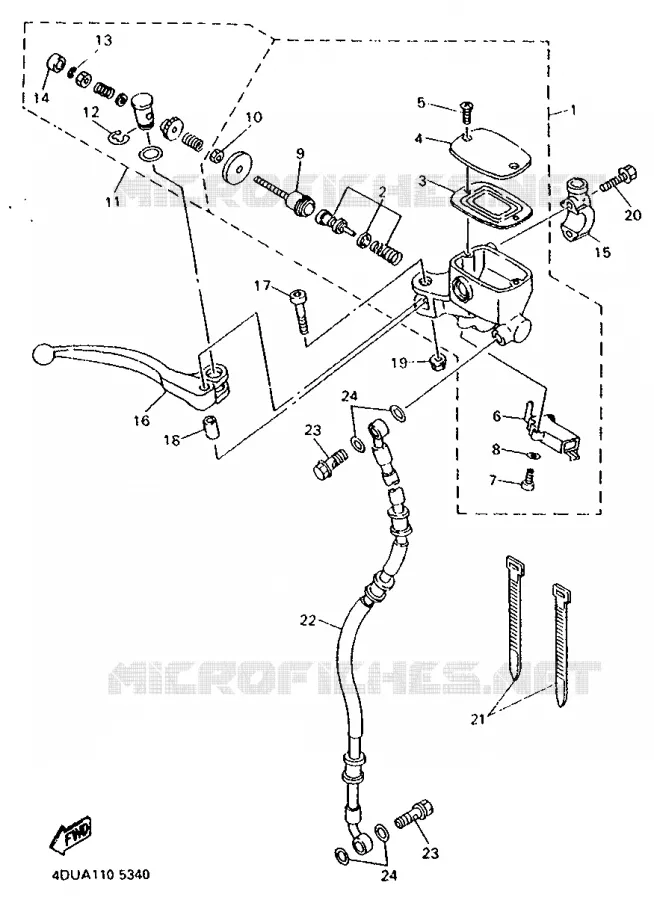

FRONT MASTER CYLINDER FOR YAMAHA XJS DIVERSION 1996

STAND / FOOTREST

MASTER CYLINDER SUB-ASSY

4BRW25870000 4BRW25870000

243,17 $

Unit Price

.JEU DE REPAR MAITRE CYL.

3YXW00415000 3YXW00415000

Not available

DIAPHRAGM, RESERVOIR

3YX258540000 3YX258540000

21,34 $

Unit Price

CAP, RESERVOIR

3YX258520000

4TX258520100

38,73 $

Unit Price

SCREW, FLAT

987070401200 987070401200

1,95 $

Unit Price

FRONT STOP SWITCH ASSY

4BH839800000 4BH839800000

41,24 $

Unit Price

SCREW, PAN HEAD

985170401200 985170401200

1,81 $

Unit Price

WASHER(JF2)

929060460000

929070460000

1,83 $

Unit Price

ROD, PUSH

3YX258800000 3YX258800000

71,84 $

Unit Price

NUT(661)

953030660000

953800660000

2,14 $

Unit Price

SCREW KIT, MASTER CYLINDER

3YXW00910200 3YXW00910200

118,79 $

Unit Price

CIRCLIP(2R6)

3YX258660000

990010860000

5,32 $

Unit Price

.CIRCLIP

3XY258661000 3XY258661000

Not available

BOOT

3YX2583H0000 3YX2583H0000

12,47 $

Unit Price

BRACKET, MASTER CYLINDER

3YX258670000 3YX258670000

23,04 $

Unit Price

LEVER

3YX839220900 3YX839220900

31,94 $

Unit Price

BOLT, LEVER

3YX2589F0000 3YX2589F0000

9,77 $

Unit Price

SLEEVE, CALIPER

3YX258380000 3YX258380000

17,87 $

Unit Price

NUT, SELF-LOCKING

956170610000 956170610000

8,11 $

Unit Price

BOLT, SMALL FLANGE

950270603000 950270603000

2,49 $

Unit Price

CLAMP

437839360100

904643001400

1,33 $

Unit Price

DURITE DE FREIN

4BP258720100 4BP258720100

Not available

BOLT, UNION(3GM)

904011015900 904011015900

11,58 $

Unit Price

WASHER, PLATE(481)

902011011800 902011011800

6,40 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER of your Yamaha XJ600S of 1996. Let us know if you have any questions.
