GEAR SHIFT SHAFT / LEVER

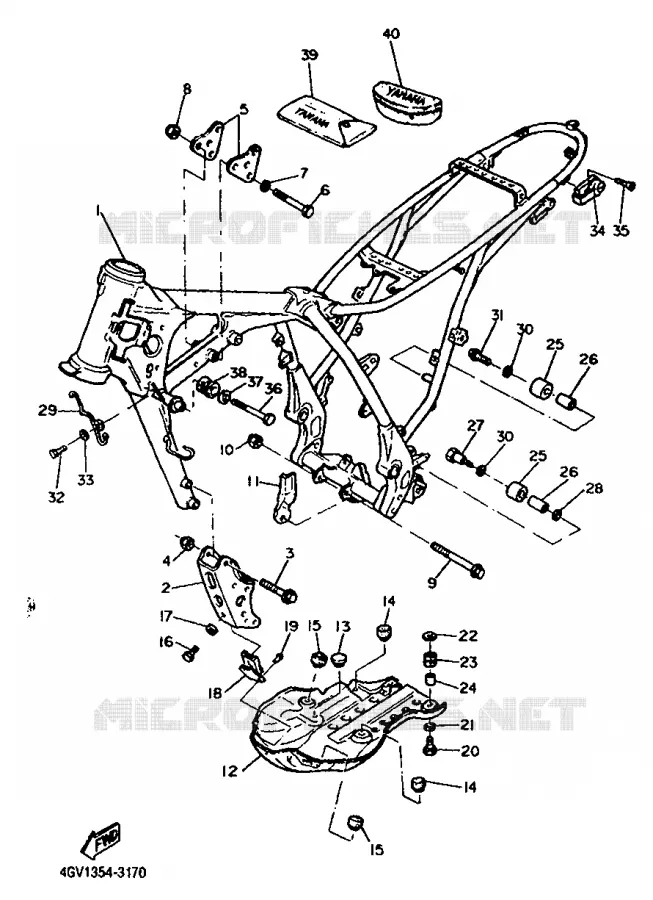

FRAME FOR YAMAHA TT 1995

FENDER

CADRE COMP.

4GVF1110012F 4GVF1110012F

Not available

SUPPORT 3, MOTEUR

4GVF1316002F 4GVF1316002F

Not available

BOLT, WASHER BASED (39E)

901051028600 901051028600

9,09 $

Unit Price

NUT, SELFLOCKING (533 FRAME)

901851006000 901851006000

9,14 $

Unit Price

SUPPORT 2, MOTEUR

4GVF13150000 4GVF13150000

Not available

BOLT, WASHER BASED(65J)

970111008000

9010510M7500

12,49 $

Unit Price

RONDELLE, PLATE

902011010000 902011010000

Not available

NUT, SELFLOCKING (533 FRAME)

901851006000 901851006000

9,14 $

Unit Price

BOLT, FLANGE(6TA)

958111011000

958171011000

7,77 $

Unit Price

NUT, SELFLOCKING (533 FRAME)

901851006000 901851006000

9,14 $

Unit Price

PLAQUE

4GVF176E0000 4GVF176E0000

Not available

PROTECTEUR, MOTEUR

4GVF14710000 4GVF14710000

Not available

SEAL, RIGHT SIDE COVER

2J5217320000 2J5217320000

6,15 $

Unit Price

STOPPER, MAIN STAND

4N0271140000 4N0271140000

9,51 $

Unit Price

DAMPER, RUBBER 1

34L214850000 34L214850000

11,69 $

Unit Price

BOLT, HEXAGON

970170801600 970170801600

4,00 $

Unit Price

WASHER(JN5)

929070810000 929070810000

2,17 $

Unit Price

AMORTISSEUR 2

34L214860000 34L214860000

Not available

RIVET, BLIND (8K2)

902674807900 902674807900

3,39 $

Unit Price

BOLT (4MY)

970070602000 970070602000

2,42 $

Unit Price

WASHER, SPRING

929070610000 929070610000

1,68 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

GROMET (3X3)

904801422900 904801422900

4,02 $

Unit Price

COLLAR

90387060A700

903870611300

12,77 $

Unit Price

TENSIONER

30X221780000 30X221780000

Not available

BUSH

4V4221840000 4V4221840000

8,54 $

Unit Price

BOLT (23X)

901090870500 901090870500

13,20 $

Unit Price

WASHER, PLATE

902011320200

902011301300

4,74 $

Unit Price

SUPPORT, CABLE

4GVF11610000 4GVF11610000

Not available

WASHER, PLATE(8AT)

902010875300

90201081R900

7,11 $

Unit Price

BOLT, FLANGE(JN5)

958170801600 958170801600

3,74 $

Unit Price

BOLT, SOCKET

913160601200

913170601200

5,10 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

HELMET HANGER ASSY

5H0213080100 5H0213080100

72,26 $

Unit Price

SCREW, COUNTERSUNK (21V)

901510602500 901510602500

2,16 $

Unit Price

BOULON

973820802000 973820802000

Not available

RONDELLE

929010920000 929010920000

Not available

SILENT-BLOC

3SHF41810000 3SHF41810000

Not available

TROUSSE A OUTILS

4GVF81001000 4GVF81001000

Not available

BAG

4GVF811E0000 4GVF811E0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha TT600S of 1995. Let us know if you have any questions.
