STEERING

FRONT FORK FOR YAMAHA XT 1993

FUEL TANK

FOURCHE AVANT COMPLETE (G)

3TB231020000 3TB231020000

Not available

.BAS DE FOURCHE(GAUCHE) BAS DE FOURCHE(GAUCHE)

3TB231260000 3TB231260000

Not available

SCREW, PAN HEAD(3XP)

4H7231190000

985170400600

6,22 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

CLIP, OIL SEAL

26H231560000 26H231560000

8,54 $

Unit Price

OIL SEAL

43F231451000 43F231451000

33,28 $

Unit Price

METAL, SLIDE 1

3LC231250000

4FM231254000

35,79 $

Unit Price

SEAL, DUST

43F231441000 43F231441000

30,36 $

Unit Price

WASHER, OIL SEAL

36Y231461000 36Y231461000

18,58 $

Unit Price

.TUBE DE FOURCHE NU TUBE DE FOURCHE NU

3TB231100000 3TB231100000

Not available

..PISTON DE FOURCHE AVANT PISTON DE FOURCHE AVANT

3LC231710000 3LC231710000

Not available

SPINDLE, TAPER

3GM231730000 3GM231730000

34,00 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

3TB231700000 3TB231700000

Not available

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

3TB231410000 3TB231410000

Not available

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

43F231421000 43F231421000

Not available

SPACER

3FW231180000 3FW231180000

18,35 $

Unit Price

BOLT, CAP

3EN231115000

1D0231110000

58,41 $

Unit Price

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

.FOURCHE AVANT COMPLETE (D) FOURCHE AVANT COMPLETE (D)

3TB231030000 3TB231030000

Not available

.BAS DE FOURCHE(DROIT) BAS DE FOURCHE(DROIT)

3TB231360000 3TB231360000

Not available

SCREW, PAN HEAD(3XP)

4H7231190000

985170400600

6,22 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

CLIP, OIL SEAL

26H231560000 26H231560000

8,54 $

Unit Price

OIL SEAL

43F231451000 43F231451000

33,28 $

Unit Price

METAL, SLIDE 1

3LC231250000

4FM231254000

35,79 $

Unit Price

SEAL, DUST

43F231441000 43F231441000

30,36 $

Unit Price

WASHER, OIL SEAL

36Y231461000 36Y231461000

18,58 $

Unit Price

.TUBE DE FOURCHE NU TUBE DE FOURCHE NU

3TB231100000 3TB231100000

Not available

..PISTON DE FOURCHE AVANT PISTON DE FOURCHE AVANT

3LC231710000 3LC231710000

Not available

SPINDLE, TAPER

3GM231730000 3GM231730000

34,00 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

3TB231700000 3TB231700000

Not available

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

3TB231410000 3TB231410000

Not available

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

43F231421000 43F231421000

Not available

SPACER

3FW231180000 3FW231180000

18,35 $

Unit Price

BOLT, CAP

3EN231115000

1D0231110000

58,41 $

Unit Price

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

HOLDER, AXLE

4V223167L000 4V223167L000

32,08 $

Unit Price

NUT, FLANGE(7NB)

2KF231270100

957800650000

3,18 $

Unit Price

SOUFFLET

3BJ231910100 3BJ231910100

Not available

SOUFFLET

3ET231912100 3ET231912100

Not available

BAND

43M23192L000 43M23192L000

14,70 $

Unit Price

SCREW, PAN HEAD

985060401800

985070401800

1,90 $

Unit Price

TE DE FOURCHE INFERIEUR

3TB233400000 3TB233400000

Not available

BOLT, FLANGE

958110805500

958170805500

4,30 $

Unit Price

NUT, FLANGE(JN5)

957010850000

957070850000

1,74 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

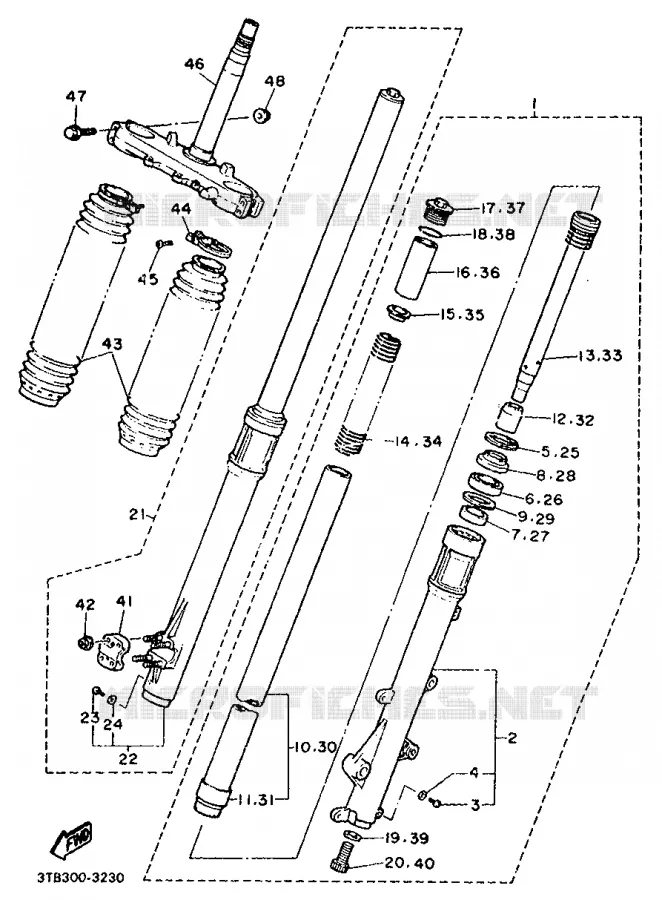

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha XT600K of 1993. Let us know if you have any questions.
