SIDE COVER

SWINGARM FOR YAMAHA XT 1989

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

2KF221100100 2KF221100100

Not available

EMBLEME, BRAS ARRIERE

3AJ2218A2000 3AJ2218A2000

Not available

BEARING, CYLINDRICAL (23X)

933173223100 933173223100

42,70 $

Unit Price

BUSH, SOLID (23X)

903802211100 903802211100

22,47 $

Unit Price

OIL SEAL (23X)

931062201900 931062201900

14,01 $

Unit Price

COVER, THRUST

2K6221280100 2K6221280100

31,11 $

Unit Price

OIL SEAL (35X41.5X8-483)

931083500400 931083500400

17,66 $

Unit Price

WASHER

90201244A800

3YF221490000

7,18 $

Unit Price

BUSH, SOLID

34L221230000

903801612600

16,92 $

Unit Price

BAGUE

34L221240000 34L221240000

Not available

SEAL, GUARD

5X6221511000 5X6221511000

18,89 $

Unit Price

COLLAR (5X6)

90387440G300 90387440G300

11,59 $

Unit Price

SUPPORT, CHAIN

38V221990000 38V221990000

40,16 $

Unit Price

BOLT, FLANGE

958010602000

958170602000

3,91 $

Unit Price

COLLAR (3L6)

903870673700 903870673700

7,69 $

Unit Price

PROTECTOR, CHAIN

2KF221470000 2KF221470000

61,28 $

Unit Price

BOLT, HEXAGON

970260601200

970170601200

2,48 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER (3R8)

902090622300

902090618700

4,02 $

Unit Price

BOLT, SOCKET

913110606000

913140606000

3,43 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

NUT(650)

953030670000

953800670000

4,53 $

Unit Price

BRAS DE LIAISON

34L2217A0000 34L2217A0000

Not available

BUSH (30X)

903862012000 903862012000

23,91 $

Unit Price

DOUILLE, SOLIDE

903801409500 903801409500

Not available

COVER, THRUST 1

34L221280000 34L221280000

20,81 $

Unit Price

BOLT, WASHER BASED(3RW)

90109120A300

901051266800

19,68 $

Unit Price

RONDELLE, PLATE

90201140G900 90201140G900

Not available

WASHER, PLATE (8K2)

90201120A500 90201120A500

5,48 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

BIELLE 1

34L2217F0000 34L2217F0000

Not available

BEARING, CYLINDRICAL (23X)

933153173200 933153173200

44,85 $

Unit Price

COLLAR (23X)

90387121H100 90387121H100

20,85 $

Unit Price

COVER, THRUST 2

23X221290000

55K221290000

24,29 $

Unit Price

BOULON

901091075900 901091075900

Not available

WASHER, PLATE(6TC)

90201100E900

9020110M0500

7,82 $

Unit Price

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

BUSH (34L)

903862012300 903862012300

18,49 $

Unit Price

COLLAR (34L)

90387122J600 90387122J600

20,57 $

Unit Price

BOULON

901091078000 901091078000

Not available

WASHER (7A9)

90201100F700 90201100F700

7,77 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

CHAIN CASE

34L223110100

Not available

SCREW, PANHEAD W-WASHER (22F)

901590608400

901590608200

2,35 $

Unit Price

PIVOT SHAFT

34K221410100 34K221410100

61,23 $

Unit Price

RONDELLE

902011523800 902011523800

Not available

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

SOUFFLET, CAOUTCHOUC

34L221890000 34L221890000

Not available

CAP

34L221170000 34L221170000

16,36 $

Unit Price

WASHER, PLATE (5Y1)

90201251F600 90201251F600

2,78 $

Unit Price

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

BRIDE

904611211000 904611211000

Not available

BOLT (661)

970130601200 970130601200

5,54 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

PROTECTEUR

2KF274910000 2KF274910000

Not available

BOLT, FLANGE

958010601000

958120601000

2,35 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

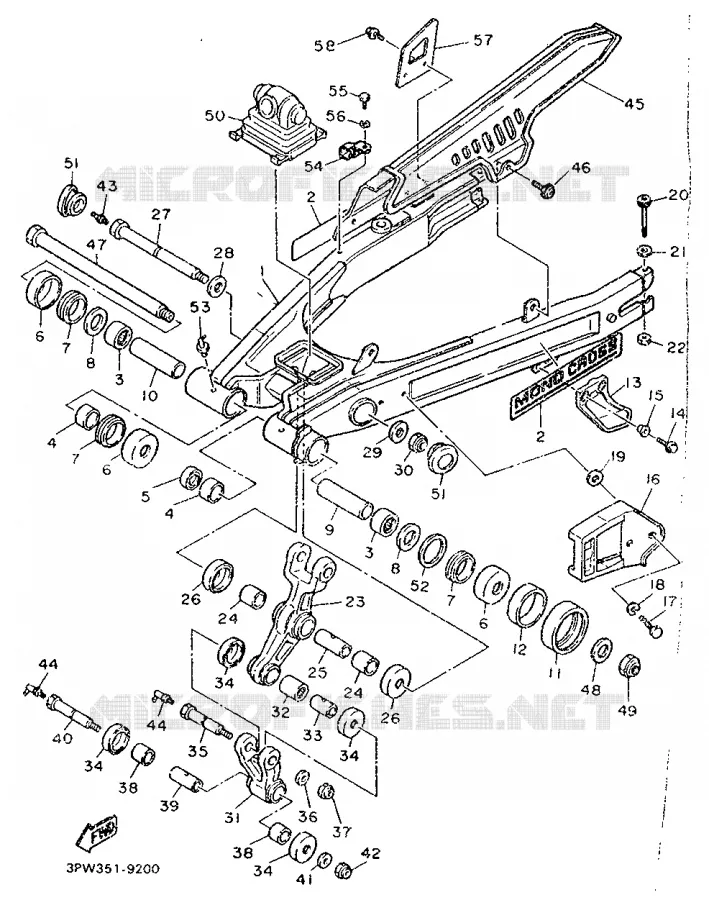

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha XT600 of 1989. Let us know if you have any questions.
