SIDE COVER

SWINGARM FOR YAMAHA XJ 1989

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

33M221100035 33M221100035

Not available

BAGUE

33M221840000 33M221840000

Not available

BEARING (4X7)

933203240300 933203240300

50,21 $

Unit Price

COVER, THRUST 2

4X7221290000 4X7221290000

23,46 $

Unit Price

RONDELLE, PLATE

90201055A800 90201055A800

Not available

AXE, PIVOT

33M221410000 33M221410000

Not available

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

BUSH (33M)

903861813500 903861813500

14,03 $

Unit Price

OIL SEAL (2J5)

931091802000 931091802000

17,01 $

Unit Price

COUVERCLE, BUTEE 1

33M221280000 33M221280000

Not available

RELAY ARM

33M2217A0035

33M2217A0100

131,10 $

Unit Price

BUSH (29L)

903861811800 903861811800

16,03 $

Unit Price

COLLAR(1FN)

90387123J000

90387123M400

26,63 $

Unit Price

COVER, THRUST 2

26H221290000 26H221290000

16,17 $

Unit Price

BOULON

901011259100 901011259100

Not available

WASHER (492)

902011253500 902011253500

5,49 $

Unit Price

NUT, U (4PM)

956111210000

956171210000

12,69 $

Unit Price

DOUILLE

903862113400 903862113400

Not available

OIL SEAL

931092002900

931092007600

17,65 $

Unit Price

COUVERCLE, BUTEE 1

26H221280000 26H221280000

Not available

COLLERETTE

90387144H400 90387144H400

Not available

BOULON

901011458500 901011458500

Not available

WASHER (6E5)

929021460000

929901460000

13,10 $

Unit Price

NUT, U(4JT)

956021410000

956171410000

12,77 $

Unit Price

BRAS 1

33M2217M0200 33M2217M0200

Not available

ARM 2

33M2217N0200 33M2217N0200

117,90 $

Unit Price

BOLT

970210808000 970210808000

2,24 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

BOULON

970210809000 970210809000

Not available

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

BOULON

901091076200 901091076200

Not available

CHAIN CASE

33M223110100 33M223110100

55,32 $

Unit Price

BOLT, WITH WASHER(8V7)

901190610800 901190610800

4,16 $

Unit Price

COUVERCLE

33M2219X0000 33M2219X0000

Not available

JOINT, PROTECTEUR

33M221510000 33M221510000

Not available

BOLT, HEXAGON DEEP RECESS

973130601600

97D950601600

1,96 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

BRAKE HOSE HOLDER

3KM258755000 3KM258755000

13,57 $

Unit Price

BOLT (661)

970030601200

970130601200

5,54 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER, PLAIN (646)

929900660000 929900660000

2,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

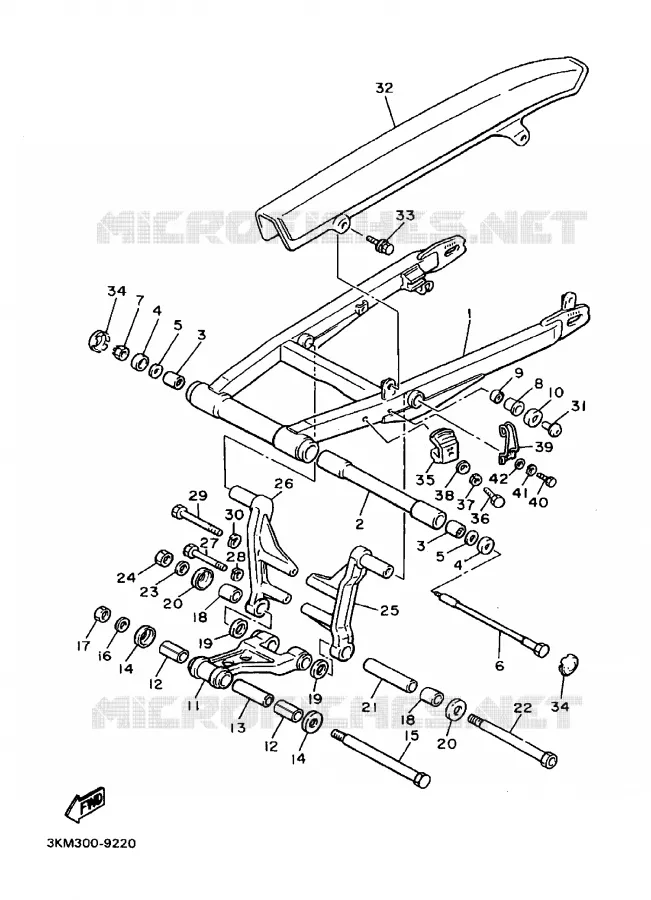

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha XJ600 of 1989. Let us know if you have any questions.
