OIL PUMP FOR YAMAHA XT 1988

INTAKE

POMPE A HUILE COMPLETE

1VJ133000100 1VJ133000100

Not available

O-RING (2H7)

932101336100 932101336100

5,17 $

Unit Price

BOLT, SOCKET

913160603500

913170603500

4,88 $

Unit Price

GEAR, PUMP DRIVEN

3AJ133250000 3AJ133250000

39,72 $

Unit Price

CIRCLIP(24H)

990091140000 990091140000

4,24 $

Unit Price

STRAINER COMP.

5Y1W13430000

5Y1Y134C0000

40,05 $

Unit Price

SEAL, OIL STRAINER

5Y1134150100

4DW134150000

4,41 $

Unit Price

SCREW, PAN

925010601400

985070601400

2,10 $

Unit Price

COVER, CAP 2

5Y1154270100

5Y1154271000

9,61 $

Unit Price

SCREW, PAN

925010601400

985070601400

2,10 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

11H134550000

903401413200

8,37 $

Unit Price

SCREW, BIND(2TV)

989010600800

989800600800

1,68 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

ELEMENT ASSY, OIL CLEANER

4X7134409000 4X7134409000

15,43 $

Unit Price

COVER, OIL ELEMENT

2WK134470000 2WK134470000

33,07 $

Unit Price

O-RING (583 OIL CLEANER)

932106429700 932106429700

5,87 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

BOLT (583 OIL DRAIN)

901090641900 901090641900

9,22 $

Unit Price

BOLT, SOCKET

913160608000

913170608000

5,49 $

Unit Price

SCREW (583)

901490511000 901490511000

2,61 $

Unit Price

GASKET (583)

904300512600 904300512600

7,43 $

Unit Price

SEAT, CHECK BALL

583131130000 583131130000

15,55 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING, COMPRESSION(1VJ)

90501043E000 90501043E000

2,38 $

Unit Price

OIL HOSE 1

2KF134640000 2KF134640000

290,87 $

Unit Price

O-RING (371)

932101019700 932101019700

9,09 $

Unit Price

O-RING

932102229800 932102229800

10,50 $

Unit Price

O-RING (1J7)

932100935000 932100935000

7,71 $

Unit Price

GASKET (4V2)

904300616600 904300616600

3,85 $

Unit Price

BOLT, SOCKET

913160601600

913170601600

3,51 $

Unit Price

DURITE A HUILE

43F134650000 43F134650000

Not available

CLAMP (34K)

904642006400 904642006400

3,90 $

Unit Price

O-RING (341)

932101517100 932101517100

7,71 $

Unit Price

BOLT, SOCKET

913160601600

913170601600

3,51 $

Unit Price

PLAQUE

5Y1133710000 5Y1133710000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

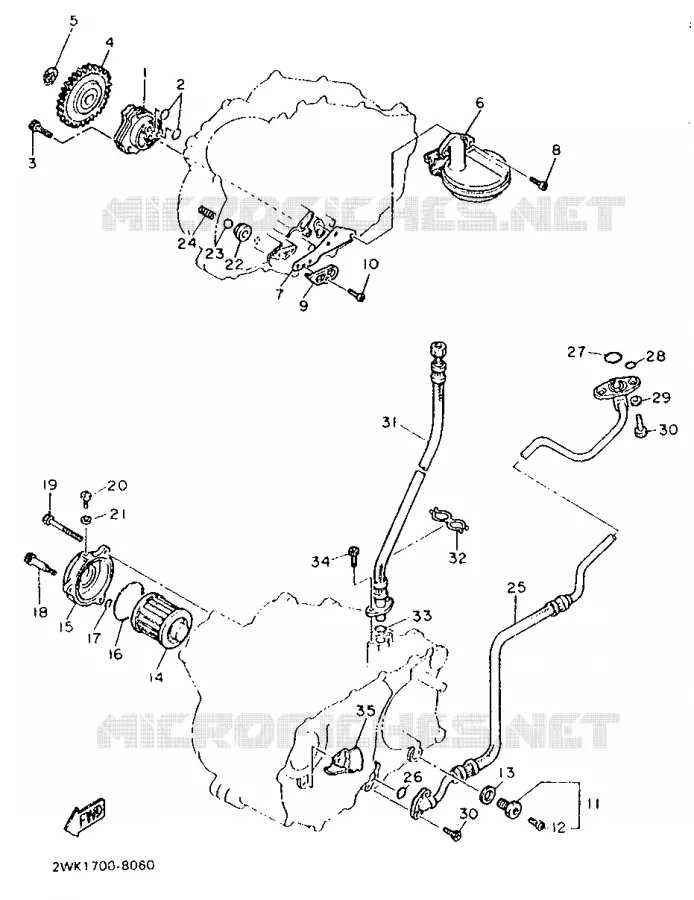

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha XT600 of 1988. Let us know if you have any questions.
