INTAKE

CARBURETOR FOR YAMAHA XT 1988

EXHAUST

CARBURATEUR COMPLET 1

2WJ143010000 2WJ143010000

Not available

GASKET

5Y1141980000 5Y1141980000

15,34 $

Unit Price

.JOINT, BOUCHON JOINT, BOUCHON

360246120000 360246120000

Not available

FLOAT

2JN143850000

25N143850000

36,82 $

Unit Price

PIN, FLOAT

6E5143860100 6E5143860100

10,47 $

Unit Price

GASKET, FLOAT CHAMBER

5Y1143840000 5Y1143840000

27,45 $

Unit Price

SCREW, PANHEAD (796)

985800401600 985800401600

0,56 $

Unit Price

SCREW, PAN HEAD(GA5)

985030401400

985800401400

3,88 $

Unit Price

YBS67-4 WASHER, SPRING

929020410000

929900410000

1,68 $

Unit Price

PIPE

1JK141970000 1JK141970000

10,79 $

Unit Price

.RONDELLE PLATE RONDELLE PLATE

1JK143570000 1JK143570000

Not available

SCREW, PAN HEAD (E56)

5Y1143250000

985800401000

5,23 $

Unit Price

O-RING

5Y1145720000 5Y1145720000

6,68 $

Unit Price

.RESSORT, BOISSEAU RESSORT, BOISSEAU

1XL141310000 1XL141310000

Not available

.RONDELLE RONDELLE

5Y1143560000 5Y1143560000

Not available

.ECROU ECROU

5Y1143580000 5Y1143580000

Not available

GASKET

5Y1145360000 5Y1145360000

15,34 $

Unit Price

SCREW, PAN HEAD (E56)

985800401000 985800401000

5,23 $

Unit Price

SCREW, PAN HEAD (7H3)

5Y1142160000

985800402000

7,43 $

Unit Price

NUT

30X143580000 30X143580000

2,63 $

Unit Price

PLUG, SCREW

5Y1141150000 5Y1141150000

21,05 $

Unit Price

.DURITE DURITE

1VJ141970000 1VJ141970000

Not available

DIAPHRAGM ASSY

1JK149400100 1JK149400100

136,37 $

Unit Price

.COUVERCLE 1 COUVERCLE 1

2JN142930000 2JN142930000

Not available

.SUPPORT 1 SUPPORT 1

1JK142910000 1JK142910000

Not available

PLATE

42U141460000 42U141460000

3,36 $

Unit Price

YBS67-4 WASHER, SPRING

929900410000 929900410000

1,68 $

Unit Price

.RESSORT RESSORT

1VJ142860000 1VJ142860000

Not available

.SOUPAPE, VIDANGE SOUPAPE, VIDANGE

30X143940000 30X143940000

Not available

PIPE

5Y1143490000 5Y1143490000

5,11 $

Unit Price

PIPE

30X141480000 30X141480000

10,00 $

Unit Price

SCREW, PAN HEAD(62X)

985010501000

978850501000

4,00 $

Unit Price

SCREW, PAN HEAD (E56)

985800401000 985800401000

5,23 $

Unit Price

PIPE

5Y1141490000 5Y1141490000

8,45 $

Unit Price

CLIP

5Y1141590000 5Y1141590000

4,81 $

Unit Price

JET, MAIN (# 120)

288143436000 288143436000

14,69 $

Unit Price

JET, MAIN (# 125)

288143436300 288143436300

14,00 $

Unit Price

JET, MAIN (# 130)

288143436500 288143436500

14,00 $

Unit Price

.PUITS D AIGUILLE PUITS D AIGUILLE

2JF143410000 2JF143410000

Not available

.BOISSEAU 2 BOISSEAU 2

1JK143135500 1JK143135500

Not available

JET, PILOT (#46)

43F143422300 43F143422300

27,23 $

Unit Price

.GICLEUR, PRINCIPAL GICLEUR, PRINCIPAL

30X143435000 30X143435000

Not available

.PUITS D AIGUILLE PUITS D AIGUILLE

2KF143550000 2KF143550000

Not available

.JEU DE VIS DE RICHESSE JEU DE VIS DE RICHESSE

2WJ141050000 2WJ141050000

Not available

NEEDLE VALVE SET

2JN141070000 2JN141070000

41,06 $

Unit Price

.JEU DE VIS DE BUTEE JEU DE VIS DE BUTEE

2NX1490K0000 2NX1490K0000

Not available

THROTTLE SCREW SET

2NX141030000 2NX141030000

20,71 $

Unit Price

.PLONGEUR, STARTER PLONGEUR, STARTER

2KF143710000 2KF143710000

Not available

DIAPHRAGM SET, 1

1JK1490A0000 1JK1490A0000

37,94 $

Unit Price

.JEU D AIGUILLES JEU D AIGUILLES

2WJ1490J0000 2WJ1490J0000

Not available

.JEU D AIGUILLES JEU D AIGUILLES

2WJ1490J0000 2WJ1490J0000

Not available

PLUNGER, STARTER

2KF1410A0000

2KF143710100

129,35 $

Unit Price

.PUITS D AIGUILLE PUITS D AIGUILLE

2WJ143670000 2WJ143670000

Not available

.DURITE DURITE

2WJ143490000 2WJ143490000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

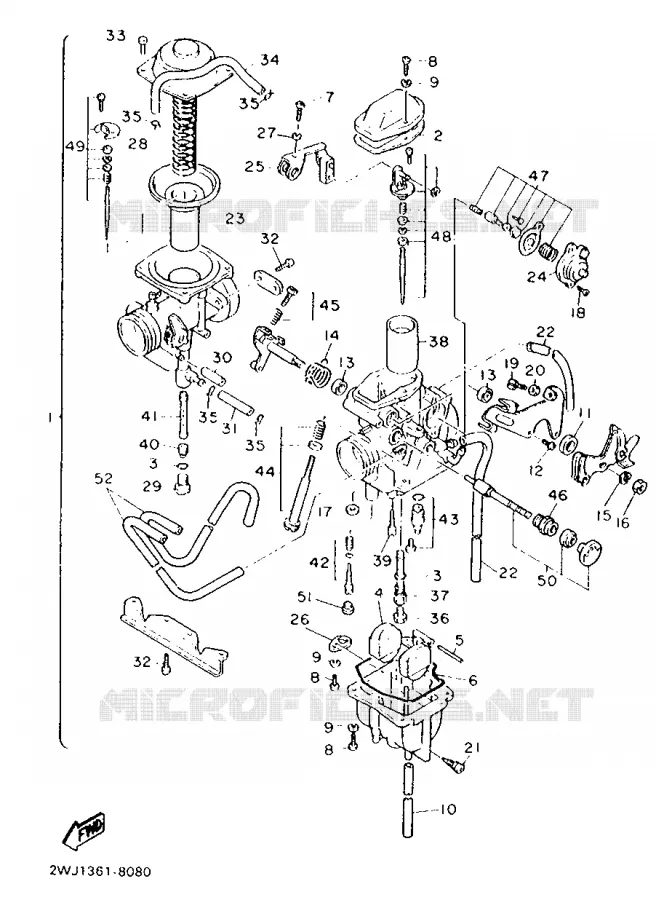

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha XT600 of 1988. Let us know if you have any questions.
