Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKSHAFT / PISTON FOR YAMAHA XT 1987

VALVE

VILEBREQUIN COMPLET

2NX114000000 2NX114000000

Not available

VILEBREQUIN COMPLET

2NX114000100 2NX114000100

Not available

.SOUS-ENS. VILEBREQUIN 1 SOUS-ENS. VILEBREQUIN 1

2NXW11410000 2NXW11410000

Not available

.MASSOLOTTE DE VILEBREQUIN 2 MASSOLOTTE DE VILEBREQUIN 2

2NX114220000 2NX114220000

Not available

PIN, CRANK 1

1VJ116810000 1VJ116810000

67,02 $

Unit Price

.ROULEMENT ROULEMENT

933106358500 933106358500

Not available

.ROULEMENT ROULEMENT

93310635T400 93310635T400

Not available

WASHER, PLATE(1XL)

90201356K100 90201356K100

16,42 $

Unit Price

CONNECTING ROD

1VJ116510000

1VJ116510100

104,87 $

Unit Price

KEY, WOODRUFF

902800501300

902800500100

13,31 $

Unit Price

WASHER, PLATE

90201140A600

902011402200

7,09 $

Unit Price

NUT

901791431700 901791431700

22,18 $

Unit Price

BEARING (3GV)

933063071000

933063070200

74,13 $

Unit Price

PISTON STD

34L1163102Y0 34L1163102Y0

114,31 $

Unit Price

PISTON(0.50 MM O-S)

34L116360200 34L116360200

159,84 $

Unit Price

PISTON

34L116380200 34L116380200

118,92 $

Unit Price

PISTON RING SET (0.50MM O-S)

34L116102000 34L116102000

88,46 $

Unit Price

PISTON RING SET

34L116100000 34L116100000

88,46 $

Unit Price

PISTON RING SET

34L116104000 34L116104000

47,42 $

Unit Price

PIN, PISTON

1JK116330000

1JK116330100

80,29 $

Unit Price

CIRCLIP 256116340000

934502402800 934502402800

4,86 $

Unit Price

WASHER, PLATE (5Y1)

90201301F400 90201301F400

10,14 $

Unit Price

BEARING COVER WASHER

34K115650200 34K115650200

8,12 $

Unit Price

BUFFER BOSS

5Y1114960100 5Y1114960100

146,40 $

Unit Price

SPRING, COMPRESSION (5Y1)

905012272100 905012272100

3,41 $

Unit Price

PIN, DOWEL

936051009000 936051009000

5,10 $

Unit Price

DRIVE GEAR

2JT115360000 2JT115360000

108,13 $

Unit Price

BALANCER WEIGHT GEAR 44T

5Y1115310000 5Y1115310000

141,19 $

Unit Price

POIDS 1

34K114540000 34K114540000

Not available

BEARING (3Y1)

933063052500 933063052500

48,01 $

Unit Price

BEARING(3RR)

933063054100

933063056000

78,78 $

Unit Price

OIL SEAL (5Y1)

931012510600 931012510600

12,77 $

Unit Price

KEY, STRAIGHT(34K)

902820501300

902820506500

5,25 $

Unit Price

PLATE, BREATHER 2

34K111450000 34K111450000

8,12 $

Unit Price

NUT(24V)

901701634300 901701634300

9,24 $

Unit Price

WASHER, LOCK(24V)

902151624200 902151624200

4,31 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

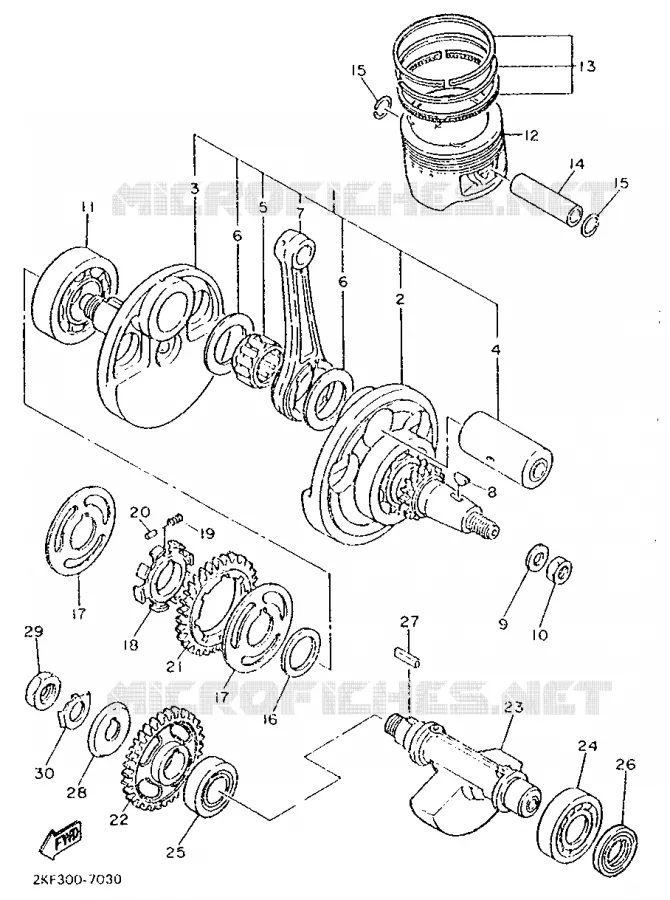

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha XT600N of 1987. Let us know if you have any questions.

Select your Yamaha XT model from 1987
