STEERING

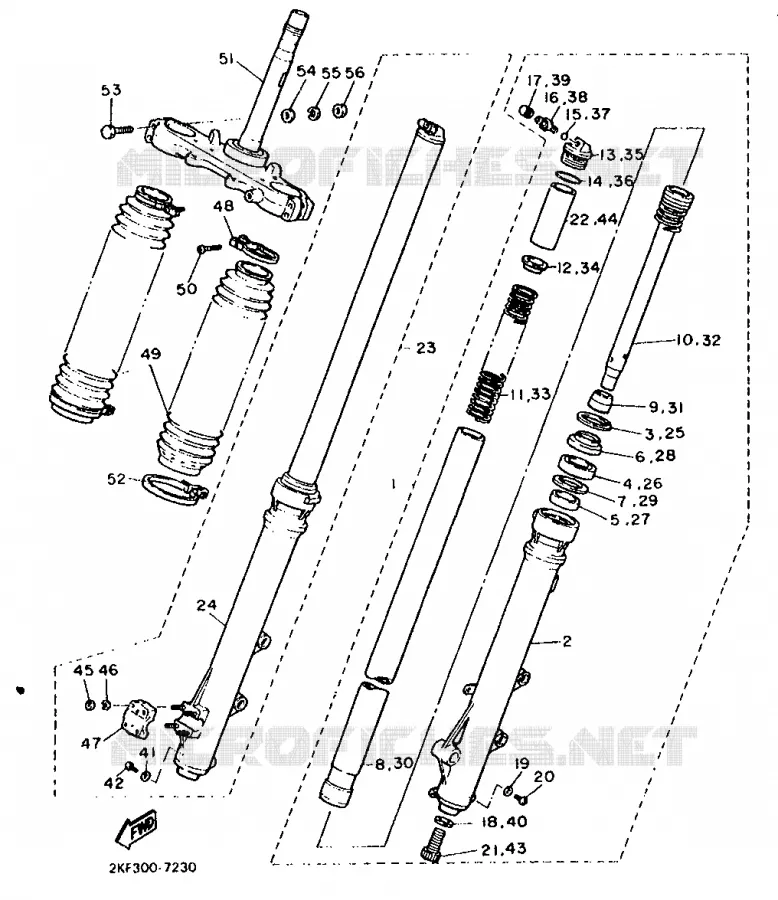

FRONT FORK FOR YAMAHA XT 1987

FUEL TANK

.FOURCHE AVANT COMPLETE (G) FOURCHE AVANT COMPLETE (G)

2KF231020000 2KF231020000

Not available

.BAS DE FOURCHE BAS DE FOURCHE

2KF231260000 2KF231260000

Not available

CLIP, OIL SEAL

26H231560000 26H231560000

8,54 $

Unit Price

OIL SEAL

43F231451000 43F231451000

33,28 $

Unit Price

METAL, SLIDE 1

36Y231251000

4FM231254000

35,79 $

Unit Price

SEAL, DUST

43F231441000 43F231441000

30,36 $

Unit Price

WASHER, OIL SEAL

36Y231461000 36Y231461000

18,58 $

Unit Price

.TUBE DE FOURCHE NU TUBE DE FOURCHE NU

2KF231100000 2KF231100000

Not available

.BROCHE, CONIQUE BROCHE, CONIQUE

2KF231731000 2KF231731000

Not available

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

43F231701000 43F231701000

Not available

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

2KF231410000 2KF231410000

Not available

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

43F231421000 43F231421000

Not available

.BOULON, CHAPEAU BOULON, CHAPEAU

43F231111000 43F231111000

Not available

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

O-RING

3J2231470000 3J2231470000

7,76 $

Unit Price

AIR VALVE COMP.

4V423190L000 4V423190L000

20,42 $

Unit Price

CAP, AIR VALVE

50923184L000 50923184L000

7,68 $

Unit Price

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

SCREW, PAN HEAD(3XP)

122231190100

985170400600

6,22 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

.ENTRETOISE ENTRETOISE

2KE231180000 2KE231180000

Not available

.FOURCHE AVANT COMPLETE (D) FOURCHE AVANT COMPLETE (D)

2KF231030000 2KF231030000

Not available

.BAS DE FOURCHE BAS DE FOURCHE

2KF231360000 2KF231360000

Not available

CLIP, OIL SEAL

26H231560000 26H231560000

8,54 $

Unit Price

OIL SEAL

43F231451000 43F231451000

33,28 $

Unit Price

METAL, SLIDE 1

36Y231251000

4FM231254000

35,79 $

Unit Price

SEAL, DUST

43F231441000 43F231441000

30,36 $

Unit Price

WASHER, OIL SEAL

36Y231461000 36Y231461000

18,58 $

Unit Price

.TUBE DE FOURCHE NU TUBE DE FOURCHE NU

2KF231100000 2KF231100000

Not available

.BROCHE, CONIQUE BROCHE, CONIQUE

4V423173L000 4V423173L000

Not available

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

43F231701000 43F231701000

Not available

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

2KF231410000 2KF231410000

Not available

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

43F231421000 43F231421000

Not available

.BOULON, CHAPEAU BOULON, CHAPEAU

43F231111000 43F231111000

Not available

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

O-RING

3J2231470000 3J2231470000

7,76 $

Unit Price

AIR VALVE COMP.

4V423190L000 4V423190L000

20,42 $

Unit Price

CAP, AIR VALVE

50923184L000 50923184L000

7,68 $

Unit Price

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

SCREW, PAN HEAD(3XP)

122231190100

985170400600

6,22 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

.ENTRETOISE ENTRETOISE

2KF231180000 2KF231180000

Not available

NUT(6TA)

953110660000

953170660000

2,10 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

HOLDER, AXLE

4V223167L000 4V223167L000

32,08 $

Unit Price

BAND

43M23192L000 43M23192L000

14,70 $

Unit Price

BOOT

2KF231911000

2KF231911100

67,00 $

Unit Price

BOOT (CHAPPY RED)

43F231911000

43F231911100

88,71 $

Unit Price

SCREW, PAN HEAD

985060401800

985070401800

1,90 $

Unit Price

TE DE FOURCHE INFERIEUR

2KF233400000 2KF233400000

Not available

BAND

43M23489L000

3LD234890000

18,77 $

Unit Price

BOLT (1E6)

901090839700

901010834000

7,07 $

Unit Price

WASHER, PLAIN (663)

902010854400

929900860000

1,68 $

Unit Price

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

NUT(6L2)

953110860000

953330860000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha XT600 of 1987. Let us know if you have any questions.
