CYLINDER HEAD

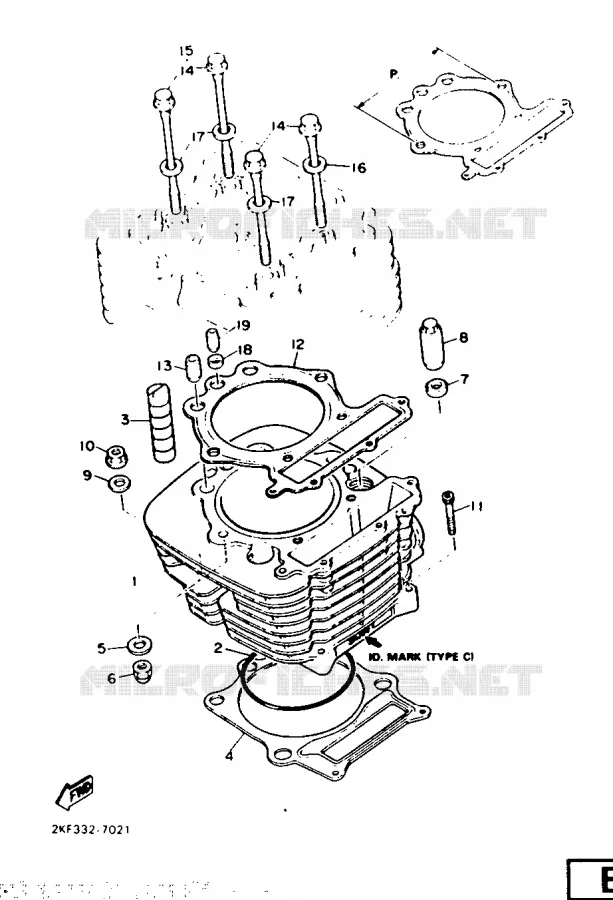

CYLINDER FOR YAMAHA XT 1987

CRANKSHAFT / PISTON

CYLINDRE

34L113100100 34L113100100

Not available

CYLINDRE

3AJ113100000 3AJ113100000

Not available

O-RING (5Y1)

932109752400 932109752400

18,34 $

Unit Price

ABSORBER

583111270000 583111270000

9,51 $

Unit Price

GASKET, CYLINDER

1VJ113510000 1VJ113510000

29,50 $

Unit Price

WASHER, PLATE

90201080L800 90201080L800

7,11 $

Unit Price

NUT, CROWN (4G0)

901760802600 901760802600

14,94 $

Unit Price

WASHER, PLATE (583)

902011059000 902011059000

7,76 $

Unit Price

NUT

901791020100

901791002100

22,48 $

Unit Price

WASHER, PLATE 3711117500

902011012400 902011012400

6,46 $

Unit Price

NUT (2Y5)

901791027900 901791027900

9,61 $

Unit Price

BOLT, SOCKET

901100616200

913170603500

4,88 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(1VJ)

901100613800 901100613800

5,60 $

Unit Price

GASKET, CYLINDER HEAD 1

2KF111810100 2KF111810100

124,81 $

Unit Price

JOINT, DE CULASSE 1

IJK111810100 IJK111810100

Not available

PIN, DOWEL

918100501800

995301201600

6,78 $

Unit Price

BOLT, WASHER BASED(2NX)

901050846400 901050846400

21,84 $

Unit Price

BOLT, WASHER BASED(1VJ)

901050850500 901050850500

16,23 $

Unit Price

BOLT, FLANGE(4BD)

901050846500

958170810500

5,30 $

Unit Price

WASHER, PLATE

90201080L700 90201080L700

7,11 $

Unit Price

WASHER, PLATE(2KF)

90201085L300 90201085L300

7,11 $

Unit Price

GASKET (5Y1)

904300817800 904300817800

6,86 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER of your Yamaha XT600 of 1987. Let us know if you have any questions.
