FRONT MASTER CYLINDER

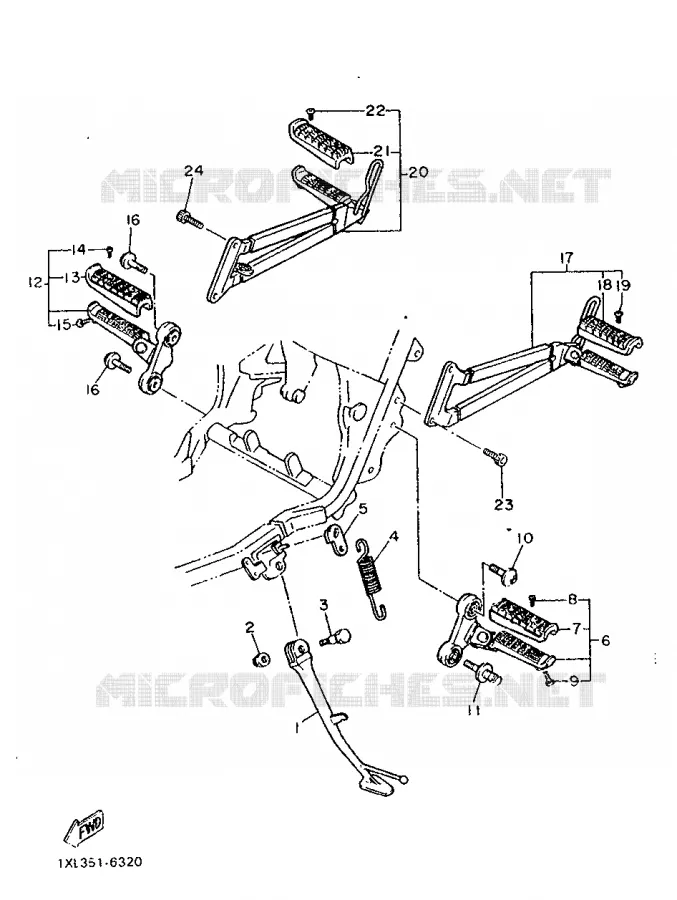

STAND / FOOTREST FOR YAMAHA SRX 1987

REAR BRAKE MASTER CYLINDER

BEQUILLE, LATERALE

1JK273110000 1JK273110000

Not available

NUT, U

901851003700 901851003700

9,07 $

Unit Price

BOLT

90109103A100

901091047300

4,69 $

Unit Price

SPRING, TENSION (5N8)

905062926600 905062926600

12,68 $

Unit Price

LINK, SIDE STAND

4U8273150000

3VD273150000

10,91 $

Unit Price

REPOSE-PIEDS AV (G)

1JK274100000 1JK274100000

Not available

COVER, FOOTREST

1JK274130000 1JK274130000

27,99 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

BOLT

90109087A100

901090822400

3,49 $

Unit Price

VIS

901490821600 901490821600

Not available

BOULON

1JK274340000 1JK274340000

Not available

FRONT RIGHT FOOTREST

1JK274200000

1JK274200100

210,59 $

Unit Price

COVER, FOOTREST

1JK274130000 1JK274130000

27,99 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

BOLT

90109087A100

901090822400

3,49 $

Unit Price

VIS

901490821600 901490821600

Not available

REPOSE-PIEDS AR 1

1XL2743000MA 1XL2743000MA

Not available

COVER, FOOTREST

46X274130000

2GH274130000

47,13 $

Unit Price

SCREW, PAN HEAD(3LA)

985060501000

985170501000

1,49 $

Unit Price

REPOSE-PIEDS AR (D)

1XL2744000MA 1XL2744000MA

Not available

COVER, FOOTREST

46X274130000

2GH274130000

47,13 $

Unit Price

SCREW, PAN HEAD(3LA)

985060501000

985170501000

1,49 $

Unit Price

BOLT (1XL)

913161001800

913171001800

4,86 $

Unit Price

BOLT, SOCKET

913160802000

913170802000

5,25 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha SRX600 of 1987. Let us know if you have any questions.
