EXHAUST

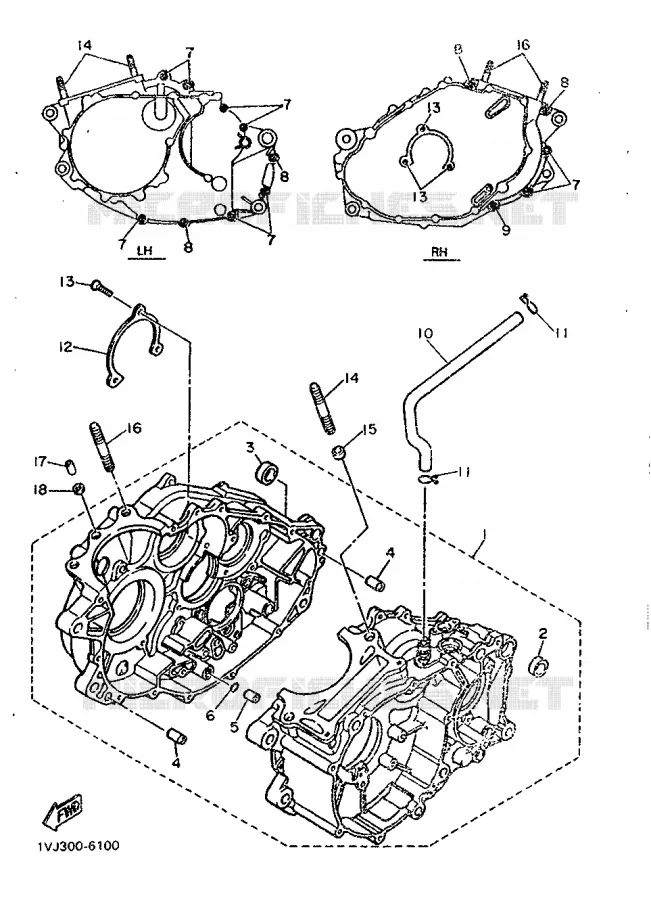

CRANKCASE FOR YAMAHA XTZ 1986

COVER - ENGINE 1

CARTER DE MOTEUR COMPLET

1VJ151000300 1VJ151000300

Not available

COLLAR

903871778300

903871700900

19,29 $

Unit Price

COLLAR (3Y1)

903871678200 903871678200

9,24 $

Unit Price

PIN, DOWEL

995101201600

995301201600

6,78 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(1VJ)

901100613800 901100613800

5,60 $

Unit Price

BOLT, SOCKET

913160604500

913170604500

5,20 $

Unit Price

BOLT, SOCKET

913160606000

913170606000

4,53 $

Unit Price

DURITE, DE RENIFLARD 1

1VJ111660000 1VJ111660000

Not available

CLIP (371)

904671401500 904671401500

6,72 $

Unit Price

BEARING COVER PLATE

5Y1153830000 5Y1153830000

12,37 $

Unit Price

SCREW, FLAT

927010601200

987070601200

2,10 $

Unit Price

BOLT (363-11361-00)

901161008700 901161008700

19,65 $

Unit Price

PIN, DOWEL

995101201600

995301201600

6,78 $

Unit Price

BOLT, STUD (1W4)

901161026300 901161026300

5,70 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

GASKET (5Y1)

904300817800 904300817800

6,86 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha XT600Z of 1986. Let us know if you have any questions.
