STAND / FOOTREST

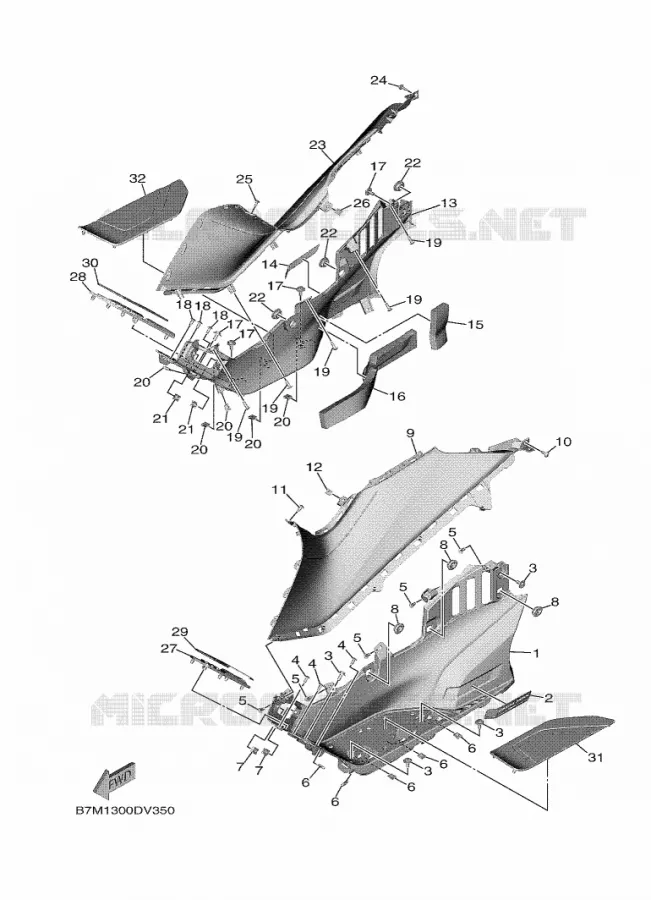

STAND / FOOTREST 2 FOR YAMAHA TMAX 2021

LEG SHIELD

Item numbers

BORD, REPOSE-PIEDS

BC3274810000 BC3274810000

Not available

PANNEAU 1

B7M274530100 B7M274530100

Not available

BOLT, WITH WASHER

901190623500

901190620900

1,66 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

PANNEAU, CONSOLE 1

BC32837L0000 BC32837L0000

Not available

BOLT

901090501800 901090501800

4,30 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BORD, REPOSE-PIEDS 2

BC3274880000 BC3274880000

Not available

PANNEAU 2

B7M274630100 B7M274630100

Not available

MOULURE, COUVERCLE DE PANNEAU

905202000900 905202000900

Not available

MOULURE, COUVERCLE DE PANNEAU

905202001100 905202001100

Not available

BOLT, WITH WASHER

901190623500

901190620900

1,66 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

PANNEAU, CONSOLE 2

BC32837M0000 BC32837M0000

Not available

BOLT

901090501800 901090501800

4,30 $

Unit Price

SCREW, TRUSS TAP.

977025001200

977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

TAPIS 1

2PW274830000 2PW274830000

Not available

TAPIS 2

2PW274840000 2PW274840000

Not available

GARNITURE, REPOSE-PIEDS

2PW274130000 2PW274130000

Not available

GARNITURE, REPOSE-PIEDS

2PW274230000 2PW274230000

Not available

TAPIS 3

BC3274930000 BC3274930000

Not available

TAPIS 4

BC3274940000 BC3274940000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Yamaha 560 TMAX 2021 model
