INTAKE 2

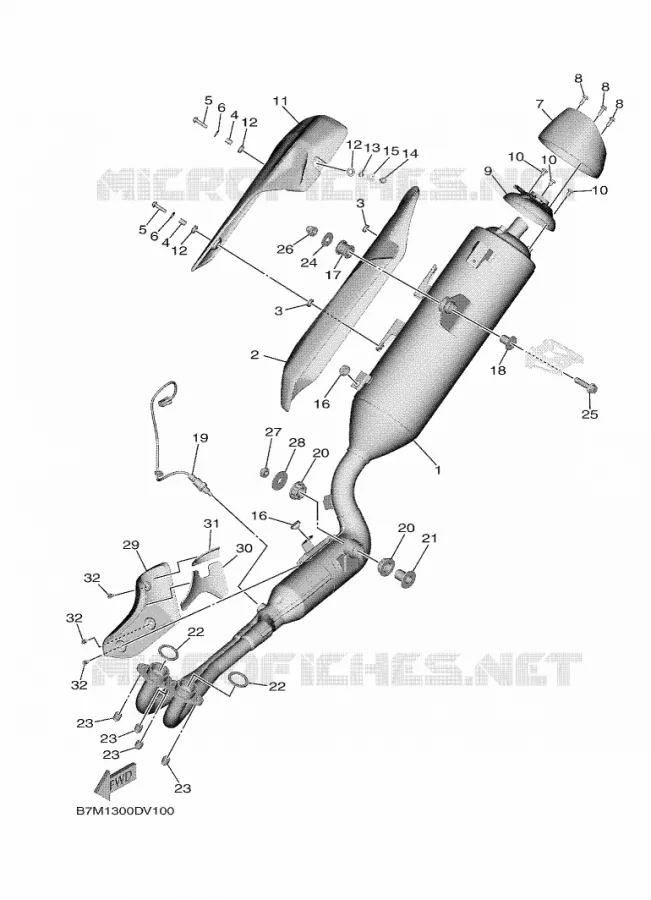

EXHAUST FOR YAMAHA TMAX 2020

CRANKCASE

Item numbers

POT D'ECHAPPEMENT CPLT

B7M147030000 B7M147030000

Not available

PLATE, COUVERCLE 2

B7M1465T0000 B7M1465T0000

Not available

GROMMET(4FW)

904801258100 904801258100

8,62 $

Unit Price

COLLERETTE

903870631700 903870631700

Not available

BOLT, HEX. SOCKET BUTTON

901110606600 901110606600

3,30 $

Unit Price

WASHER, PLATE(J41)

90201062G300

902010604900

3,94 $

Unit Price

BOUCHON

B7M147990000 B7M147990000

Not available

BOLT

901110601500 901110601500

2,80 $

Unit Price

SUPPORT, PROTECTEUR

BC3146290000 BC3146290000

SCREW, BIND(2TV)

989800600800 989800600800

1,68 $

Unit Price

PROTECTEUR, POT D'ECHAP 1

BC3147180000 BC3147180000

Not available

GROMMET(4FW)

904801258100 904801258100

8,62 $

Unit Price

COLLERETTE

903870614100 903870614100

Not available

BOLT

901110601500 901110601500

2,80 $

Unit Price

WASHER, PLATE(J41)

90201062G300

902010604900

3,94 $

Unit Price

DAMPER, LOCATING 1

22W241810000 22W241810000

6,24 $

Unit Price

DAMPER, FOOTREST 2

36Y274240100 36Y274240100

20,26 $

Unit Price

COLLAR

903871004600 903871004600

10,71 $

Unit Price

SONDE

BC38592A1000 BC38592A1000

Not available

AMORTISSEUR, REPOSE-PIEDS 2

B7M274240000 B7M274240000

Not available

COLLERETTE 2

B7M146480000 B7M146480000

Not available

GASKET, EXHAUST PIPE

4BR146130000 4BR146130000

12,68 $

Unit Price

NUT

901790844200 901790844200

9,60 $

Unit Price

WASHER, PLATE (2H7)

902011066900 902011066900

7,43 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D321004000 95D321004000

2,84 $

Unit Price

NUT, CROWN(2GG)

901761007500 901761007500

10,04 $

Unit Price

NUT, SELF-LOCKING

901851002200 901851002200

3,04 $

Unit Price

WASHER, PLATE

902011007100 902011007100

7,72 $

Unit Price

PROTECTEUR DE POT D'ECHAPPT

BC3147380000 BC3147380000

Not available

SIEGE

B7M1475P0000 B7M1475P0000

Not available

SIEGE

B7M1476P0000 B7M1476P0000

Not available

BOULON

901110618300 901110618300

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the EXHAUST of your Yamaha TMAX 560 ABS of 2020. Let us know if you have any questions.
