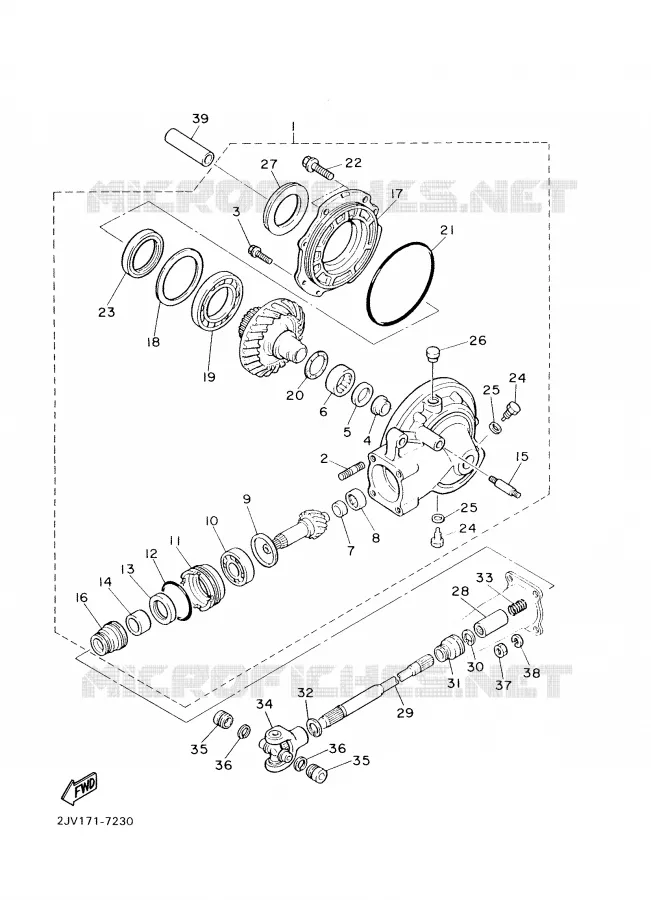

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA VIRAGO 2000

STEERING

REAR AXLE GEAR CASE ASSY

2NT461010000 2NT461010000

2 754,43 $

Unit Price

BOLT, STUD (5E5)

901161042800

901161036100

12,94 $

Unit Price

BOLT, WITH WASHER(72H)

901190812600

975270852500

1,46 $

Unit Price

COLLAR, GUIDE

22U461530000 22U461530000

19,48 $

Unit Price

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

21,44 $

Unit Price

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

97,78 $

Unit Price

RACE, INNER

2H7461220000 2H7461220000

20,50 $

Unit Price

BEARING ASSY

933174151000

2H7461020000

67,20 $

Unit Price

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

9,51 $

Unit Price

SHIM, THRUST (0.40T)

1J717537Y040 1J717537Y040

9,51 $

Unit Price

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

9,51 $

Unit Price

BRG, R-B 6305RB1 62MM 245G KY

933063053900

933063053300

129,72 $

Unit Price

RETAINER, BEARING

4H7461250000 4H7461250000

37,45 $

Unit Price

O-RING (4H7)

932106042600 932106042600

11,29 $

Unit Price

OIL SEAL (4H7)

931013809800 931013809800

24,06 $

Unit Price

COLLAR

90387256G900 90387256G900

16,29 $

Unit Price

BOLT, STUD (4H7)

901161024900 901161024900

21,49 $

Unit Price

.JOINT SPY 1

22U461360000 22U461360000

Not available

HOUSING, BEARING

22U461520000 22U461520000

84,62 $

Unit Price

SHIM, RING GEAR

22U461170025 22U461170025

4,14 $

Unit Price

SHIM, RING GEAR

22U461170030 22U461170030

4,14 $

Unit Price

SHIM, RING GEAR

22U461170040 22U461170040

4,23 $

Unit Price

BEARING, CYLINDRICAL (22U)

933160130100 933160130100

128,07 $

Unit Price

WASHER, THRUST

22U461180012 22U461180012

10,05 $

Unit Price

WASHER, THRUST

22U461180014 22U461180014

10,05 $

Unit Price

WASHER, THRUST

22U461180016 22U461180016

10,05 $

Unit Price

WASHER, THRUST

22U461180018 22U461180018

10,05 $

Unit Price

WASHER, THRUST

22U461180020 22U461180020

10,05 $

Unit Price

O-RING (22U)

932113956900 932113956900

20,57 $

Unit Price

BOLT, FLANGE(3GD)

901051028500

958171002500

7,09 $

Unit Price

OIL SEAL (22U)

931026527700 931026527700

22,37 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401400900

903401413200

8,37 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

BREATHER COMP.

2H7175900000 2H7175900000

26,25 $

Unit Price

HUB DUST SEAL

1J7253190100

Not available

COUPLING, GEAR

22U461230000 22U461230000

39,91 $

Unit Price

ARBRE DE TRANSMISSION

2GV461720000 2GV461720000

Not available

CIRCLIP, TYPE S

934401911200 934401911200

Not available

JOINT SPY 2

22U461370000 22U461370000

Not available

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

SPRING, COMPRESSION (22U)

905011572200 905011572200

1,88 $

Unit Price

CROSS JOINT COMP.

4X7461800000 4X7461800000

290,08 $

Unit Price

BEARING(2HR)

933112104400

933999992600

35,32 $

Unit Price

CIRCLIP (4X7)

934402008800 934402008800

6,44 $

Unit Price

NUT(3BM)

953141060000 953141060000

2,62 $

Unit Price

YBS67-10 WASHER, SPRING

929031010000

929901010000

3,94 $

Unit Price

COLLERETTE

90387156G800 90387156G800

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL DRIVE SHAFT / GEAR COUPLING of your Yamaha XV535 of 2000. Let us know if you have any questions.
