SIDE COVER - OIL TANK

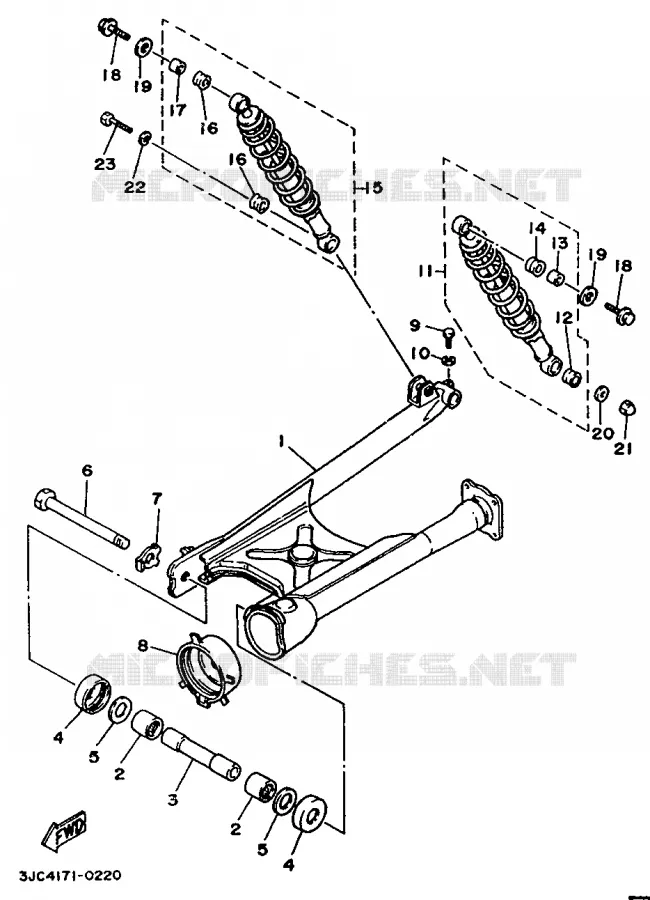

SWINGARM / SHOCK ABSORBER FOR YAMAHA VIRAGO 1996

FINAL DRIVE SHAFT / GEAR COUPLING

BRAS ARRIERE COMP.

2GV221100035 2GV221100035

Not available

BEARING (4X7)

933203240300 933203240300

50,21 $

Unit Price

BUSH 2

4X7221240000 4X7221240000

41,89 $

Unit Price

COVER, THRUST 2

4X7221290000 4X7221290000

23,46 $

Unit Price

WASHER

90201244A800

3YF221490000

7,18 $

Unit Price

PIVOT SHAFT

4X7221410000 4X7221410000

41,07 $

Unit Price

RONDELLE-FREIN

902151618100 902151618100

Not available

SOUFFLET, CAOUTCHOUC

22U221890000 22U221890000

Not available

BOULON

970040810000 970040810000

Not available

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,68 $

Unit Price

AMORTISSEUR, ARRIERE

2YL222100100 2YL222100100

Not available

BUSH, REAR SHOCK ABSORBER

2GV222160000 2GV222160000

13,67 $

Unit Price

.COLLIER, D ENTRETOISE

2GV222530000 2GV222530000

Not available

BUSH, REAR SHOCK ABSORBER

2GV222260000

4KG222160000

4,30 $

Unit Price

AMORTISSEUR, AR

2YL222200100 2YL222200100

Not available

BUSH, REAR SHOCK ABSORBER

2GV222260000

4KG222160000

4,30 $

Unit Price

COLLAR, DISTANCE

5M0222530000 5M0222530000

3,73 $

Unit Price

BOLT, FLANGE

958070801200

958170801200

3,75 $

Unit Price

WASHER, PLATE(8AT)

902010875300

90201081R900

7,11 $

Unit Price

WASHER, PLATE(3BM)

90201105R900 90201105R900

5,09 $

Unit Price

NUT, CROWN(3BM)

901761007300 901761007300

10,48 $

Unit Price

YBS67-10 WASHER, SPRING

929901010000 929901010000

3,94 $

Unit Price

BOLT (3BM)

901061005200 901061005200

8,98 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM / SHOCK ABSORBER of your Yamaha XV535S of 1996. Let us know if you have any questions.
