FUEL TANK

SEAT FOR YAMAHA VIRAGO 1996

FRONT WHEEL

SELLE MONOPLACE

3JB247100000 3JB247100000

Not available

SELLE MONOPLACE (MODELLE XV535S)

3JB247101000 3JB247101000

Not available

SELLE MONOPLACE (MODELLE XV535S)

4KU247100000 4KU247100000

Not available

.COUVRE, SELLE MONOPLACE

3JB247110000 3JB247110000

Not available

.COUVRE, SELLE MONOPLACE (MODELLE XV535S)

3JB247111000 3JB247111000

Not available

.COUVRE, SELLE MONOPLACE (MODELLE XV535S)

4KU247110000 4KU247110000

Not available

DAMPER

18A247240000 18A247240000

4,85 $

Unit Price

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

SELLE BIPLACE

3JB247500000 3JB247500000

Not available

SELLE BIPLACE (MODELEE XV535S)

3JB247501000 3JB247501000

Not available

SELLE BIPLACE (MODELEE XV535S)

4KU247500000 4KU247500000

Not available

.COUVRE, SELLE BIPLACE

3JB247510000 3JB247510000

Not available

.COUVRE, SELLE BIPLACE (MODELEE XV535S)

3JB247511000 3JB247511000

Not available

.COUVRE, SELLE BIPLACE (MODELEE XV535S)

4KU247510000 4KU247510000

Not available

.AXE 2, BUTEE

3JB237340000 3JB237340000

Not available

.AXE 2, BUTEE (MODELEE XV535S)

3JB237341000 3JB237341000

Not available

.AXE 2, BUTEE (MODELEE XV535S)

4KU237340000 4KU237340000

Not available

WASHER, PLATE

902010676500

902010638000

5,48 $

Unit Price

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

.SUPPORT, SELLE

3JB247180000 3JB247180000

Not available

.SUPPORT, SELLE

3JB247280000 3JB247280000

Not available

.LEVIER, SELLE

3JB247760000 3JB247760000

Not available

.CABLE, CROCHET DE SIEGE

3JB2478E0000 3JB2478E0000

Not available

WASHER, PLAIN LARGE

929070320000 929070320000

0,52 $

Unit Price

DAMPER

18A247240000 18A247240000

4,85 $

Unit Price

SEAT LOCK ASSY

51X247050000

47X247050000

113,21 $

Unit Price

BOLT(8CP)

970070601400

970170601400

2,10 $

Unit Price

WASHER, SPRING

929070610000 929070610000

1,68 $

Unit Price

COUVERCLE

61Y247960000 61Y247960000

Not available

TROUSSE A OUTILS

2GV281000000 2GV281000000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

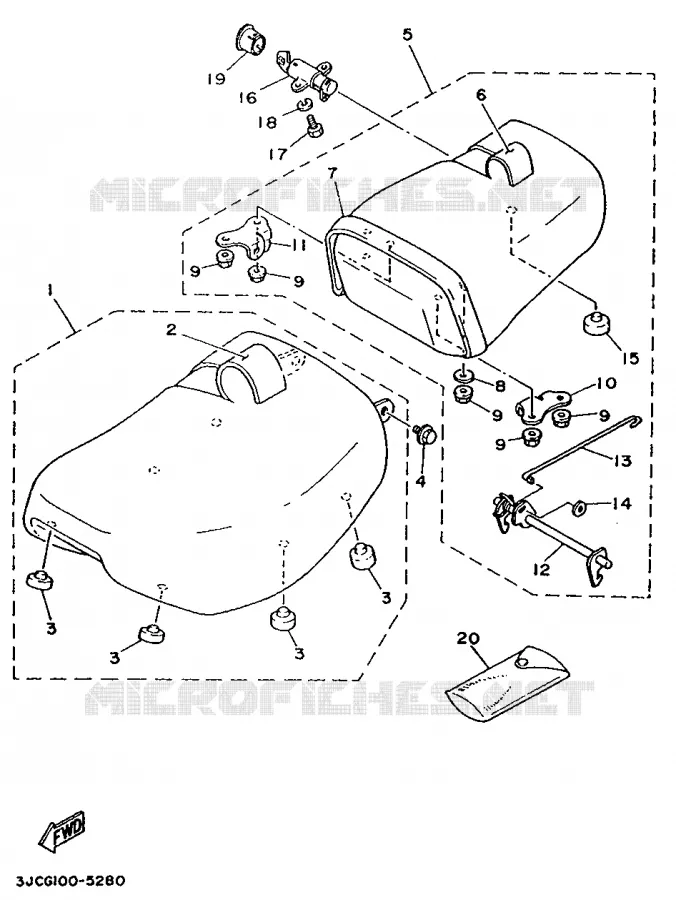

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Yamaha XV535S (FLAT) of 1996. Let us know if you have any questions.
