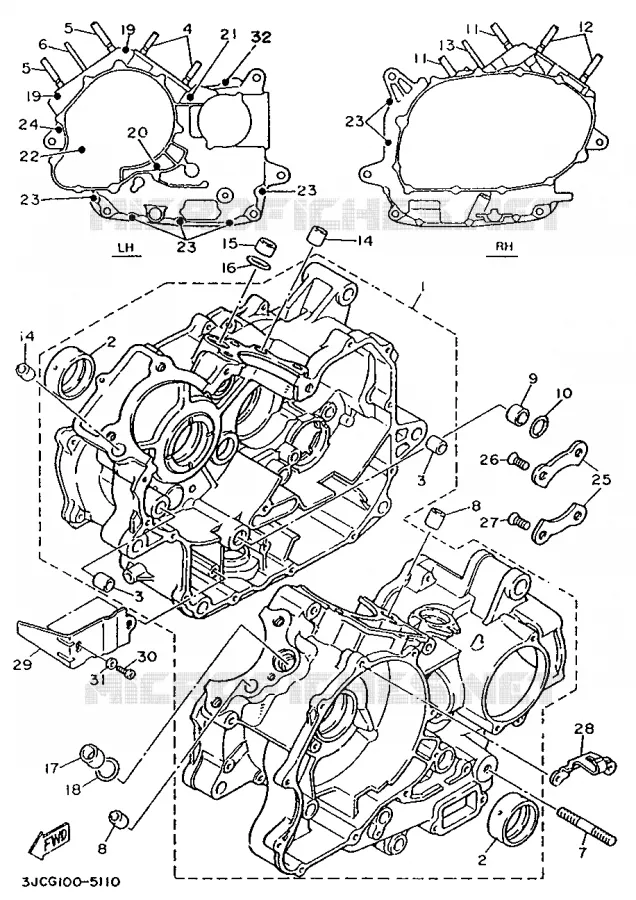

CRANKCASE FOR YAMAHA VIRAGO 1996

COVER - ENGINE 1

CRANKCASE ASSY

2GV151000000

2GV151000300

1 757,60 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

22U114168000 22U114168000

47,60 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

22U114169000 22U114169000

47,60 $

Unit Price

PIN, DOWEL(MH0)

918151601700 918151601700

3,69 $

Unit Price

GOUJON

901161040600 901161040600

Not available

BOLT, STUD (22U)

901161040500 901161040500

20,99 $

Unit Price

BOLT, STUD (22U)

901160840400 901160840400

11,34 $

Unit Price

STUD BOLT 3

956171068000 956171068000

11,40 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

COLLAR (1L9)

903871654700 903871654700

10,11 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

GOUJON

901161040600 901161040600

Not available

BOLT, STUD (22U)

901161040500 901161040500

20,99 $

Unit Price

BOLT, STUD (22U)

901160840400 901160840400

11,34 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

COLLAR (1L9)

903871654700 903871654700

10,11 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

COLLAR (1L9)

903871654700 903871654700

10,11 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

BOLT, SOCKET

913170806000 913170806000

5,55 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

913170808000

901100800300

7,59 $

Unit Price

BOLT, SOCKET

913140810000 913140810000

19,42 $

Unit Price

BOLT, SOCKET

913170609500 913170609500

5,95 $

Unit Price

BOLT, SOCKET

913170604500 913170604500

5,20 $

Unit Price

BOLT, SOCKET

913140605500 913140605500

5,12 $

Unit Price

PLATE, BEARING COVER

11H153830100

11H153830200

14,88 $

Unit Price

SCREW, COUNTERSUNK (22U)

901510802200 901510802200

1,67 $

Unit Price

VIS

90149C815200 90149C815200

Not available

CLUTCH CABLE HOLDER

22U154410100

Not available

PLAQUE DE BUTOIR

22U151230000 22U151230000

Not available

SCREW, PAN

985070601200

985170601200

2,10 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

BOLT, SOCKET

913140604500 913140604500

5,12 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha XV535 of 1996. Let us know if you have any questions.
