GEAR SHIFT SHAFT / LEVER

FRAME FOR YAMAHA VIRAGO 1996

FENDER

CADRE COMP.

4FT211101033 4FT211101033

Not available

SUPPORT COMPLET

3JB211050033 3JB211050033

Not available

BOLT WASHER BASED (1J7)

901050817700

901050806600

5,96 $

Unit Price

WASHER (853)

902010832600 902010832600

5,00 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901090871800

901110808400

6,86 $

Unit Price

SUPPORT 3, MOTEUR

2GV213170000 2GV213170000

Not available

BOLT, WASHER BASED (5E3)

901051018300 901051018300

13,35 $

Unit Price

NUT(4KG)

901791065800 901791065800

3,49 $

Unit Price

NUT (2Y5)

901791027900 901791027900

9,61 $

Unit Price

WASHER PLATE 256111740000

902011013100 902011013100

6,49 $

Unit Price

WASHER, PLATE(3BM)

902011043700

90201105R900

5,09 $

Unit Price

SUPPORT 2, MOTEUR

22U213150000 22U213150000

Not available

SUPPORT 3, MOTEUR

22U213160000 22U213160000

Not available

BOLT (4W3)

901051018600 901051018600

5,79 $

Unit Price

WASHER, PLATE(42X)

90201105H300 90201105H300

7,76 $

Unit Price

COLLAR (5E3)

90387100E200 90387100E200

4,71 $

Unit Price

AMORTISSEUR, CAOUTCHOUC 1

4X7214850000 4X7214850000

Not available

VIS

901491023800 901491023800

Not available

VIS

901491023900 901491023900

Not available

SUPPORT, DE BEQUILLE LATERALE

4KU214580000 4KU214580000

Not available

GOUJON

901161249500 901161249500

Not available

NUT(3EF)

901791224800

901791265700

7,77 $

Unit Price

CACHE LATERALE

2GV2171E0000 2GV2171E0000

Not available

BOULON, A COLLERETTE

950271280000 950271280000

Not available

BOLT, WASHER BASED(JA9)

950270601600

901050669600

7,86 $

Unit Price

BOLT, WASHER BASED HEXAGON 1L9

901050606900 901050606900

4,00 $

Unit Price

WASHER, PLATE(3MB)

902020518700 902020518700

1,68 $

Unit Price

PLUG 288833190000

903380704300 903380704300

3,08 $

Unit Price

COUVERCLE 2

2GV2139R0000 2GV2139R0000

Not available

TAPPING SCREW, PANHEAD .2

977076051400 977076051400

0,78 $

Unit Price

PLUG

1AA2143A0000

3YJ244810000

4,26 $

Unit Price

SUPPORT, BOBINE

2GV213590000 2GV213590000

Not available

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

COUVERCLE 2

3JB2139R0000 3JB2139R0000

Not available

GROMMET (17J)

904801033400 904801033400

2,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

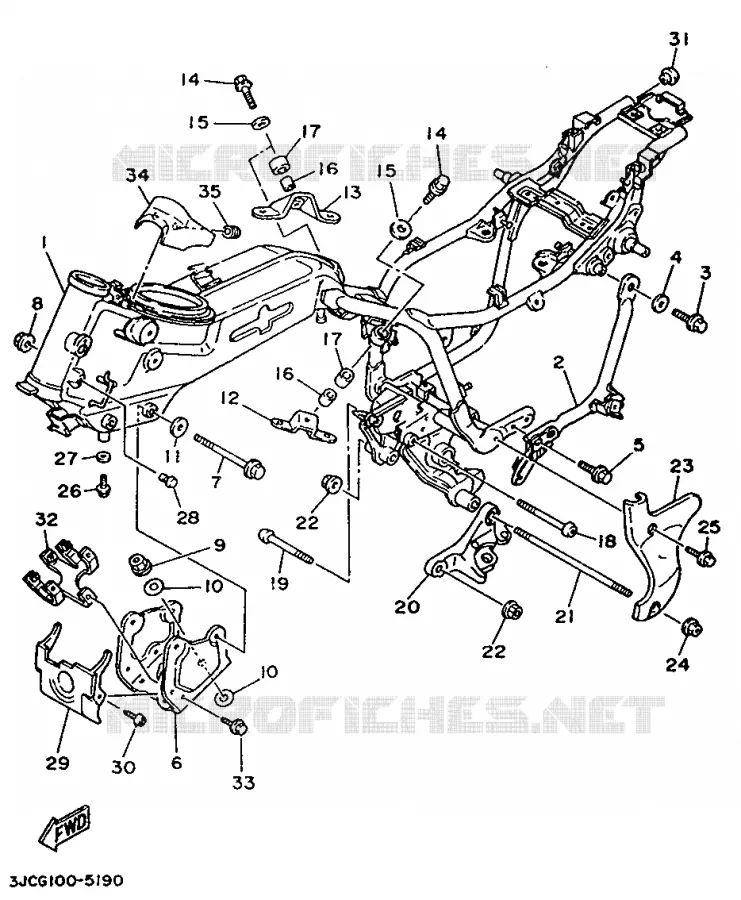

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha XV535 (UP) of 1996. Let us know if you have any questions.
