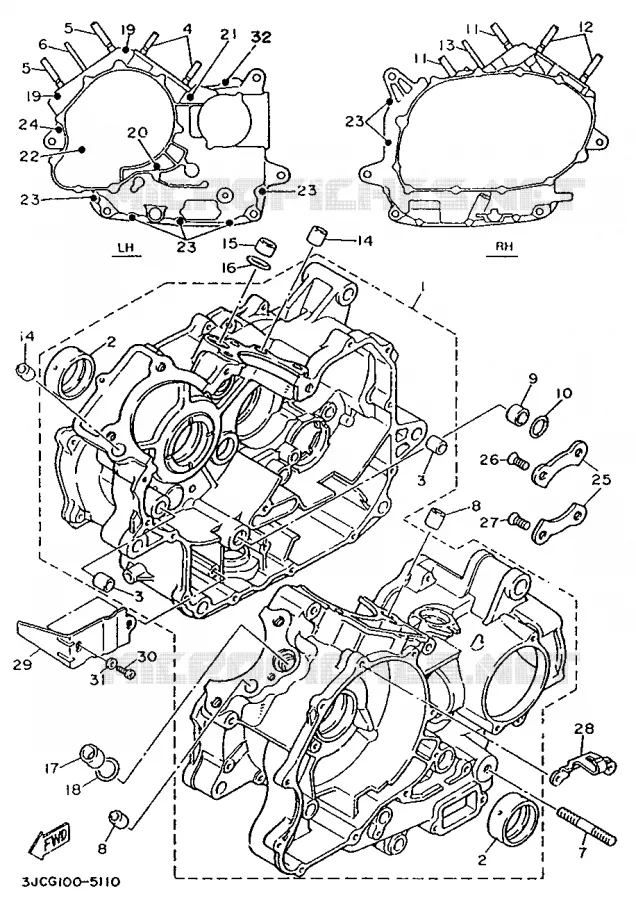

CRANKCASE FOR YAMAHA VIRAGO 1996

COVER - ENGINE 1

CRANKCASE ASSY

2GV151000000

2GV151000300

1 757,60 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

22U114168000 22U114168000

47,60 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

22U114169000 22U114169000

47,60 $

Unit Price

PIN, DOWEL(MH0)

918151601700 918151601700

3,69 $

Unit Price

GOUJON

901161040600 901161040600

Not available

BOLT, STUD (22U)

901161040500 901161040500

20,99 $

Unit Price

BOLT, STUD (22U)

901160840400 901160840400

11,34 $

Unit Price

STUD BOLT 3

956171068000 956171068000

11,40 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

COLLAR (1L9)

903871654700 903871654700

10,11 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

GOUJON

901161040600 901161040600

Not available

BOLT, STUD (22U)

901161040500 901161040500

20,99 $

Unit Price

BOLT, STUD (22U)

901160840400 901160840400

11,34 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

COLLAR (1L9)

903871654700 903871654700

10,11 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

COLLAR (1L9)

903871654700 903871654700

10,11 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

BOLT, SOCKET

913140806000 913140806000

10,62 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

913170808000

901100800300

7,59 $

Unit Price

BOLT, SOCKET

913140810000 913140810000

19,42 $

Unit Price

BOLT, SOCKET

913170609500 913170609500

5,95 $

Unit Price

BOLT, SOCKET

913170604500 913170604500

5,20 $

Unit Price

BOLT, SOCKET

913140605500 913140605500

5,12 $

Unit Price

PLATE, BEARING COVER

11H153830100

11H153830200

14,88 $

Unit Price

SCREW, COUNTERSUNK (22U)

901510802200 901510802200

1,67 $

Unit Price

SCREW

901490815200

901490801300

0,76 $

Unit Price

CLUTCH CABLE HOLDER

22U154410100

Not available

PLAQUE DE BUTOIR

22U151230000 22U151230000

Not available

SCREW, PAN

985070601200

985170601200

2,10 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

BOLT, SOCKET

913140604500 913140604500

5,12 $

Unit Price
