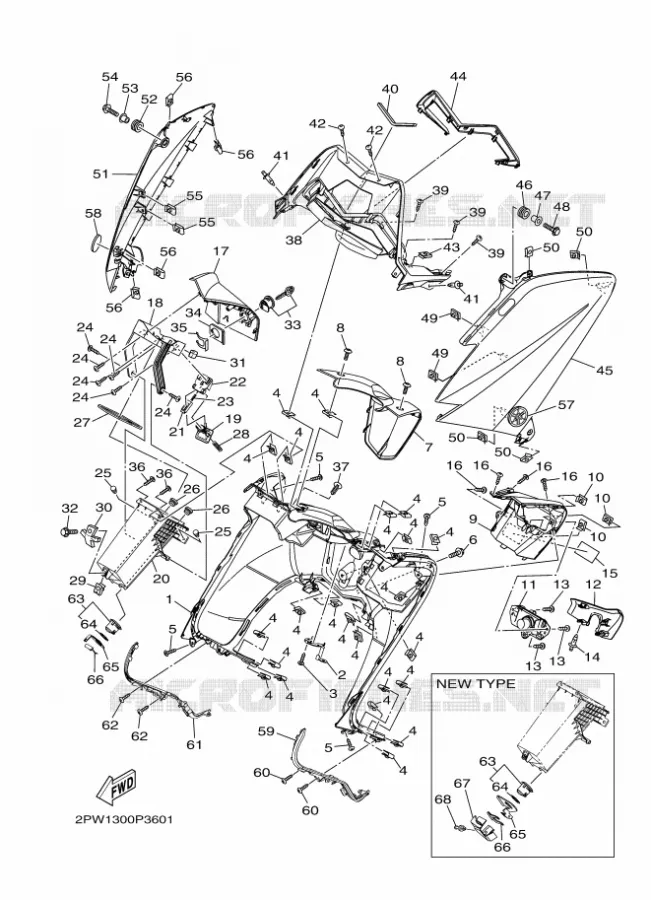

LEG SHIELD FOR YAMAHA TMAX 2016

WINDSCREEN

Item numbers

LEG SHIELD 1

59C283110000 59C283110000

223,45 $

Unit Price

BRACKET

2PW283660000 2PW283660000

14,13 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

BOLT, WITH WASHER

901190621200 901190621200

1,26 $

Unit Price

PROTEGE-JAMBES 2

59C2831220P0 59C2831220P0

Not available

SCREW, TAPPING(4TX)

901670507600 901670507600

2,53 $

Unit Price

LID

59C283130000 59C283130000

24,50 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

PANEL ASSY

2PW2830P0000 2PW2830P0000

159,28 $

Unit Price

LID 3

2PW2839V0000 2PW2839V0000

21,27 $

Unit Price

TAPPING SCREW

901690500100 901690500100

0,65 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

ETIQUETTE, AVERTISSEMENT

26P215680000 26P215680000

Not available

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

LID 1

59C2839K0000 59C2839K0000

22,31 $

Unit Price

PANEL, INNER 4

59C2836N0000 59C2836N0000

15,75 $

Unit Price

KNOB, 2

59C2836Y0000 59C2836Y0000

3,92 $

Unit Price

BOX 2

2PW2838L0000 2PW2838L0000

25,51 $

Unit Price

PIN, LOCK

59C282350000 59C282350000

2,70 $

Unit Price

COVER, LOCK

59C2848Y0000 59C2848Y0000

4,22 $

Unit Price

SPRING

59C283880000 59C283880000

2,84 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PLUG(1NL)

903380601800

903380718000

11,27 $

Unit Price

PLUG (17J)

903381013200 903381013200

3,20 $

Unit Price

DAMPER, PLATE

905200600600 905200600600

4,09 $

Unit Price

SPRING 2

59C2838C0000 59C2838C0000

3,28 $

Unit Price

NUT, SPRING(4ES)

901830606900 901830606900

3,20 $

Unit Price

DAMPER, SEAT

59C247240000 59C247240000

5,18 $

Unit Price

DAMPER, LOCATING 1

5JX217780000 5JX217780000

2,17 $

Unit Price

BOLT, WITH WASHER

901190624100

901190624200

3,25 $

Unit Price

LOCK SET 2

59C284070000 59C284070000

122,23 $

Unit Price

STAY, LOCK

59C2117K0000 59C2117K0000

5,64 $

Unit Price

SPRING, LOCK 2

59C2176V0000 59C2176V0000

7,61 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

RIVET

902690300100 902690300100

5,06 $

Unit Price

PANEL, INNER 1

59C2836K0000 59C2836K0000

177,07 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

DAMPER, PLATE

905200301200 905200301200

1,68 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

BOLT

901110500200 901110500200

2,54 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

PLATINE, ACCESSOIRE

59C2839R00P1 59C2839R00P1

Not available

CORPS, DE CARENAGE

2PW2835100P3 2PW2835100P3

Not available

GROMMET

904801400300 904801400300

3,86 $

Unit Price

COLLAR(4JW)

903870602X00 903870602X00

11,45 $

Unit Price

BOLT, FLANGE

958220602000

958170602000

3,91 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

CORPS, DE CARENAGE 2

2PW2837700P3 2PW2837700P3

Not available

GROMMET

904801400300 904801400300

3,86 $

Unit Price

COLLAR(4JW)

903870602X00 903870602X00

11,45 $

Unit Price

BOLT, FLANGE

958220602000

958170602000

3,91 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

EMBLEM

1RC2413B0000

1RC2413B0200

33,71 $

Unit Price

EMBLEM

1RC2413B0000

1RC2413B0200

33,71 $

Unit Price

PLATE 1

59C283960000 59C283960000

35,82 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PLATE 2

59C283970000 59C283970000

38,27 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

ROTOR SET

2PWW24700000

Not available

GASKET, LOCK

2PW2839T0000

Not available

SUPPORT

2PW2117K1000 2PW2117K1000

Not available

SPRING, LOCK 2

5VY2176V0000 5VY2176V0000

12,71 $

Unit Price

COUVERCLE

2PW247960100 2PW247960100

Not available

RIVET

902690500500 902690500500

3,65 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
