STAND / FOOTREST 2

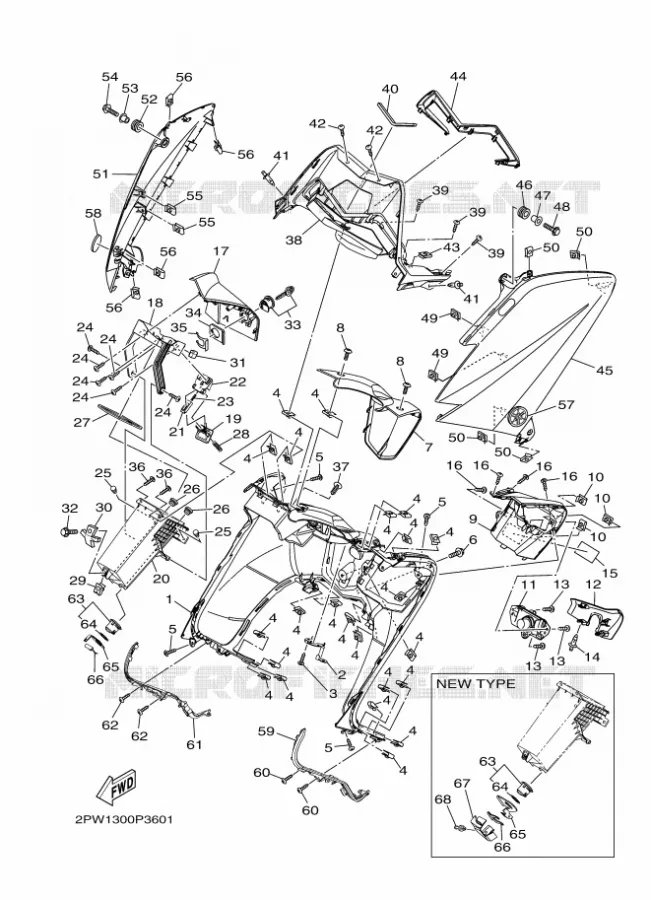

LEG SHIELD FOR YAMAHA TMAX 2016

WINDSCREEN

Item numbers

LEG SHIELD 1

59C283110000 59C283110000

223,45 $

Unit Price

BRACKET

2PW283660000 2PW283660000

14,13 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

BOLT, WITH WASHER

901190621200 901190621200

1,26 $

Unit Price

LEG SHIELD 2

59C283120000 59C283120000

93,16 $

Unit Price

SCREW, TAPPING(4TX)

901670507600 901670507600

2,53 $

Unit Price

LID

59C283130000 59C283130000

24,50 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

PANEL ASSY

2PW2830P0000 2PW2830P0000

159,28 $

Unit Price

LID 3

2PW2839V0000 2PW2839V0000

21,27 $

Unit Price

TAPPING SCREW

901690500100 901690500100

0,65 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

ETIQUETTE, AVERTISSEMENT

26P215680000 26P215680000

Not available

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

LID 1

59C2839K0000 59C2839K0000

22,31 $

Unit Price

PANEL, INNER 4

59C2836N0000 59C2836N0000

15,75 $

Unit Price

KNOB, 2

59C2836Y0000 59C2836Y0000

3,92 $

Unit Price

BOX 2

2PW2838L0000 2PW2838L0000

25,51 $

Unit Price

PIN, LOCK

59C282350000 59C282350000

2,70 $

Unit Price

COVER, LOCK

59C2848Y0000 59C2848Y0000

4,22 $

Unit Price

SPRING

59C283880000 59C283880000

2,84 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PLUG(1NL)

903380601800

903380718000

11,27 $

Unit Price

PLUG (17J)

903381013200 903381013200

3,20 $

Unit Price

DAMPER, PLATE

905200600600 905200600600

4,09 $

Unit Price

SPRING 2

59C2838C0000 59C2838C0000

3,28 $

Unit Price

NUT, SPRING(4ES)

901830606900 901830606900

3,20 $

Unit Price

DAMPER, SEAT

59C247240000 59C247240000

5,18 $

Unit Price

DAMPER, LOCATING 1

5JX217780000 5JX217780000

2,17 $

Unit Price

BOLT, WITH WASHER

901190624100

901190624200

3,25 $

Unit Price

LOCK SET 2

59C284070000 59C284070000

122,23 $

Unit Price

STAY, LOCK

59C2117K0000 59C2117K0000

5,64 $

Unit Price

SPRING, LOCK 2

59C2176V0000 59C2176V0000

7,61 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

RIVET

902690300100 902690300100

5,06 $

Unit Price

PANEL, INNER 1

59C2836K0000 59C2836K0000

177,07 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

DAMPER, PLATE

905200301200 905200301200

1,68 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

BOLT

901110500200 901110500200

2,54 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

PANEL, ACCESSORY

59C2839R00P0 59C2839R00P0

177,07 $

Unit Price

BODY, COWLING

2PW2835100P0 2PW2835100P0

237,16 $

Unit Price

GROMMET

904801400300 904801400300

3,86 $

Unit Price

COLLAR(4JW)

903870602X00 903870602X00

11,45 $

Unit Price

BOLT, FLANGE

958220602000

958170602000

3,91 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BODY, COWLING 2

2PW2837700P0 2PW2837700P0

232,45 $

Unit Price

GROMMET

904801400300 904801400300

3,86 $

Unit Price

COLLAR(4JW)

903870602X00 903870602X00

11,45 $

Unit Price

BOLT, FLANGE

958220602000

958170602000

3,91 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

EMBLEM

1RC2413B0000

1RC2413B0200

33,71 $

Unit Price

EMBLEM

1RC2413B0000

1RC2413B0200

33,71 $

Unit Price

PLATE 1

59C283960000 59C283960000

35,82 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PLATE 2

59C283970000 59C283970000

38,27 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

ROTOR SET

2PWW24700000

Not available

GASKET, LOCK

2PW2839T0000

Not available

SUPPORT

2PW2117K1000 2PW2117K1000

Not available

SPRING, LOCK 2

5VY2176V0000 5VY2176V0000

12,71 $

Unit Price

COUVERCLE

2PW247960100 2PW247960100

Not available

RIVET

902690500500 902690500500

3,65 $

Unit Price
