CRANKCASE

KICK STARTER FOR YAMAHA VMAX 1999

PRIMARY SHEAVE

Item numbers

STARTER ASSY

84M157100100 84M157100100

357,85 $

Unit Price

. CASE, STARTER

82M157110000 82M157110000

Not available

DRUM, SEAVE

8F3157140100 8F3157140100

51,40 $

Unit Price

PAWL, DRIVE

8F3157410100 8F3157410100

13,25 $

Unit Price

SPRING, STARTER

8F3157130100 8F3157130100

26,25 $

Unit Price

SPRING, DRIVE PLATE

8F3157150000 8F3157150000

10,16 $

Unit Price

WASHER, THRUST

8F3157390100 8F3157390100

10,93 $

Unit Price

SPRING, RETURN

8F3157340000 8F3157340000

14,65 $

Unit Price

. PLATE, DRIVE

82M157160000 82M157160000

Not available

WASHER(6A1)

929010610000

929950610000

1,46 $

Unit Price

NUT(650)

953010670000

953800670000

4,53 $

Unit Price

WASHER, THRUST

8G5157390000 8G5157390000

5,40 $

Unit Price

WIRE, STARTER (BRAIDED)

8F3157510000

89A157510000

31,40 $

Unit Price

HANDLE, STARTER

8F3157550000 8F3157550000

15,91 $

Unit Price

COLLOR

82M157790000 82M157790000

8,13 $

Unit Price

COLLAR

90387063E900 90387063E900

Not available

BUSH (8M6)

903851203600 903851203600

9,98 $

Unit Price

BOLT, WITH WASHER(89J)

901190621100 901190621100

3,38 $

Unit Price

PULLEY 1

8CA126180000 8CA126180000

Not available

PULLEY, STARTER

8CA157230000 8CA157230000

Not available

SHIM

8CA157210000 8CA157210000

15,84 $

Unit Price

SCREW, FLAT HEAD(4EM)

987070601600 987070601600

0,68 $

Unit Price

BOLT, HEXAGON

970270803000

970170803000

4,28 $

Unit Price

WASHER(6TA)

929070860000 929070860000

2,10 $

Unit Price

GUIDE, ROPE

8CR157580000 8CR157580000

Not available

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

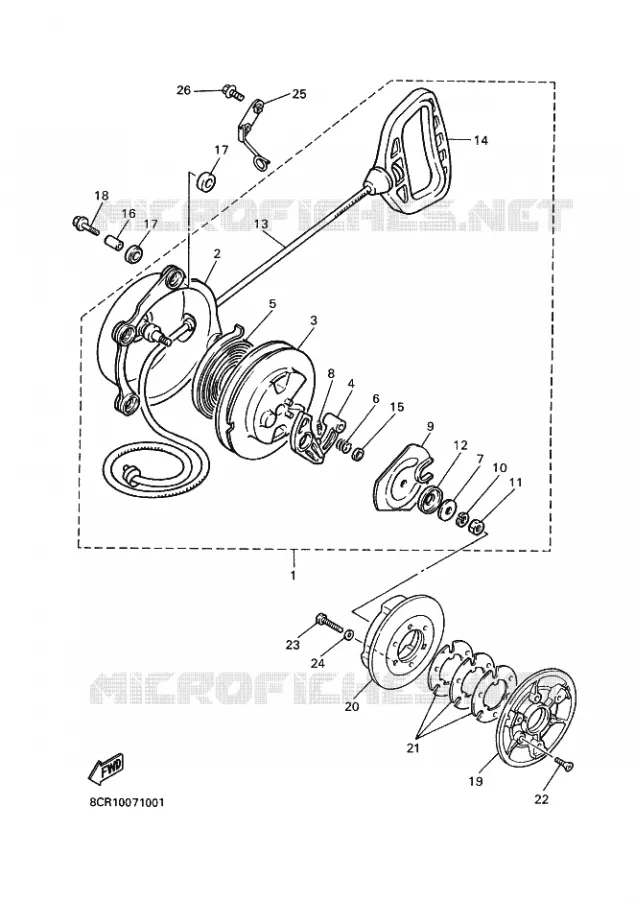

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Yamaha VMAX 500 SX of 1999. Let us know if you have any questions.
