STAND / FOOTREST

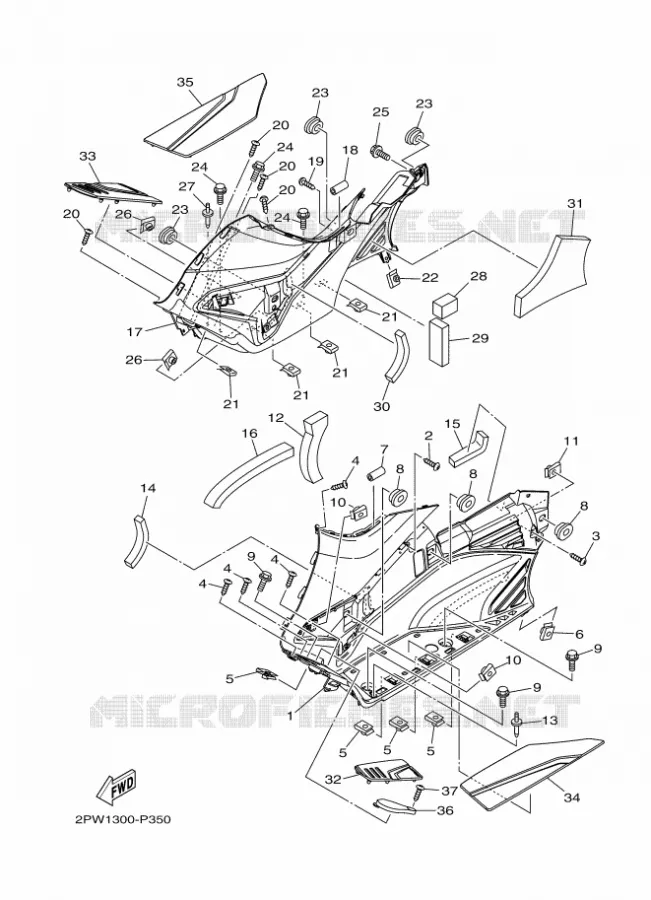

STAND / FOOTREST 2 FOR YAMAHA TMAX ABS 2015

LEG SHIELD

BOARD, FOOTREST

59C274810100 59C274810100

342,03 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

SPACER

2PW283290000 2PW283290000

1,69 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

BOLT, WITH WASHER

901190620900 901190620900

1,66 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

DAMPER, LOCATING 2

59C217790000 59C217790000

7,05 $

Unit Price

RIVET

902690700100 902690700100

3,60 $

Unit Price

DAMPER 1

4B5282170000 4B5282170000

5,01 $

Unit Price

DAMPER 4

59C282470000 59C282470000

2,32 $

Unit Price

DAMPER, PLATE

905202500100 905202500100

7,60 $

Unit Price

BOARD, FOOTREST 2

59C274880100 59C274880100

342,03 $

Unit Price

SPACER

2PW283290000 2PW283290000

1,69 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

GROMMET(4BH)

904800155900 904800155900

12,86 $

Unit Price

BOLT, WITH WASHER

901190620900 901190620900

1,66 $

Unit Price

BOLT, WITH WASHER

901190623500

901190620900

1,66 $

Unit Price

NUT, SPRING

90183060A600 90183060A600

6,81 $

Unit Price

RIVET

902690700100 902690700100

3,60 $

Unit Price

DAMPER

5UX216490000 5UX216490000

2,52 $

Unit Price

DAMPER 2

4B5282270000 4B5282270000

3,42 $

Unit Price

DAMPER 1

4B5282170000 4B5282170000

5,01 $

Unit Price

DAMPER 3

59C282370000 59C282370000

15,81 $

Unit Price

MAT 1

59C274830000

Not available

MAT 2

59C274840000

Not available

MAT 3

59C274930000

Not available

MAT 4

59C274940000

Not available

COVER 2

59C274630000

Not available

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST 2 of your Yamaha XP500A of 2015. Let us know if you have any questions.
