SIDE COVER

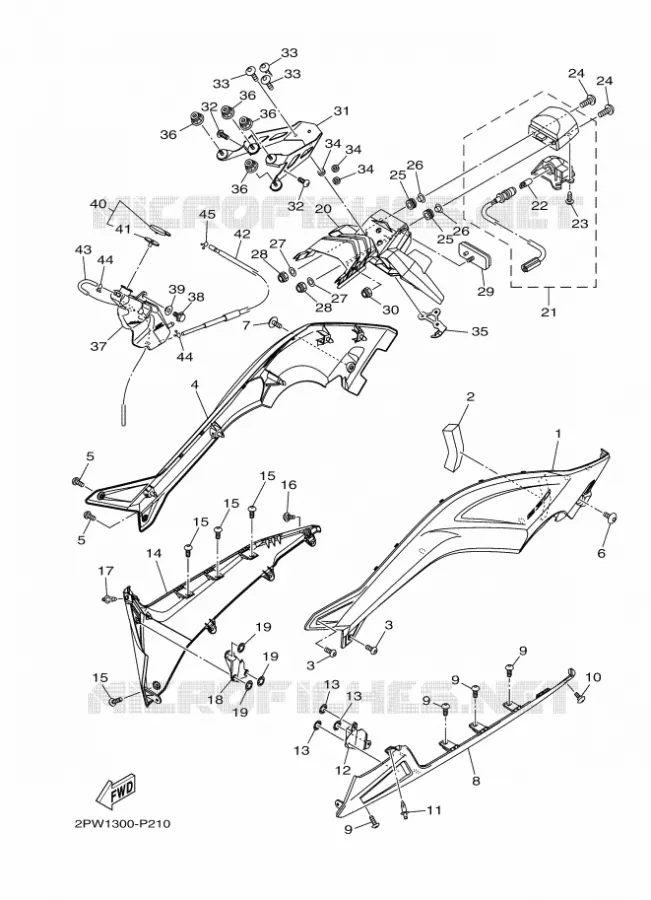

SIDE COVER 2 FOR YAMAHA TMAX ABS 2015

SWINGARM / SHOCK ABSORBER

COVER, SIDE 3

59C2173100P2 59C2173100P2

256,26 $

Unit Price

DAMPER 1

4B5282170000 4B5282170000

5,01 $

Unit Price

BOLT, BUTTON HEAD(4NK)

920140601400 920140601400

3,94 $

Unit Price

COVER, SIDE 4

59C2174100P2 59C2174100P2

256,26 $

Unit Price

BOLT, BUTTON HEAD(4NK)

920140601400 920140601400

3,94 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(3HE)

901100620000 901100620000

3,72 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(3HE)

901100620000 901100620000

3,72 $

Unit Price

MOLE, SIDE COVER 1

59C2171L00P1

Not available

SCREW, TAPPING(4TX)

901670507600 901670507600

2,53 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110504500 901110504500

3,67 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

GUIDE 1

59C2178L0000 59C2178L0000

5,17 $

Unit Price

NUT, SPRING (6E5)

9018305M0200 9018305M0200

1,68 $

Unit Price

MOLE, SIDE COVER 2

59C2171M00P1

Not available

SCREW, TAPPING(4TX)

901670507600 901670507600

2,53 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110504500 901110504500

3,67 $

Unit Price

RIVET

902690600800 902690600800

2,66 $

Unit Price

GUIDE 2

59C2178M0000 59C2178M0000

5,41 $

Unit Price

NUT, SPRING (6E5)

9018305M0200 9018305M0200

1,68 $

Unit Price

GUARD, MUD

59C216290000 59C216290000

63,34 $

Unit Price

LICENCE LIGHT UNIT ASSY

59C847450000 59C847450000

142,47 $

Unit Price

BULB

4HC847440000

4SV843470000

3,41 $

Unit Price

TAPPING SCREW, PANHEAD .2 S

977074061200 977074061200

1,85 $

Unit Price

SCREW, BIND

989020502000 989020502000

0,65 $

Unit Price

GROMMET

904801100900 904801100900

6,47 $

Unit Price

COLLAR

903870500300 903870500300

5,46 $

Unit Price

WASHER, PLAIN LARGE

929070520000 929070520000

2,29 $

Unit Price

NUT, U

956020510000

956170510000

5,12 $

Unit Price

REFLECTOR

3Y6851300200 3Y6851300200

31,86 $

Unit Price

NUT, S-L FLANGE

956070520000 956070520000

4,71 $

Unit Price

REAR STAY COMP.

2PW216400000 2PW216400000

169,26 $

Unit Price

SCREW, TAPPING

901670508000 901670508000

2,52 $

Unit Price

BOLT

901110606100 901110606100

2,94 $

Unit Price

WASHER 6464337400

90387061Y100

902010604000

7,52 $

Unit Price

BRACKET 6

59C2161G0000 59C2161G0000

17,58 $

Unit Price

NUT, U FLANGE

956020620000

956040620000

4,30 $

Unit Price

TANK, RECOVERY

59C218710000 59C218710000

52,65 $

Unit Price

BOLT, FLANGE

958220601400

958170601400

4,16 $

Unit Price

COLLAR

903870617000 903870617000

4,36 $

Unit Price

CAP

1AA218150000 1AA218150000

13,35 $

Unit Price

GASKET

1AA218740000 1AA218740000

4,57 $

Unit Price

PIPE 1

2PW218160000 2PW218160000

59,54 $

Unit Price

HOSE

904450903900 904450903900

10,83 $

Unit Price

CLIP

90467090A200 90467090A200

1,47 $

Unit Price

CLIP

90467100A100 90467100A100

1,27 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE COVER 2 of your Yamaha XP500A of 2015. Let us know if you have any questions.
