COVER - ENGINE 2

STARTER MOTOR FOR YAMAHA TMAX 2006

STARTER CLUTCH

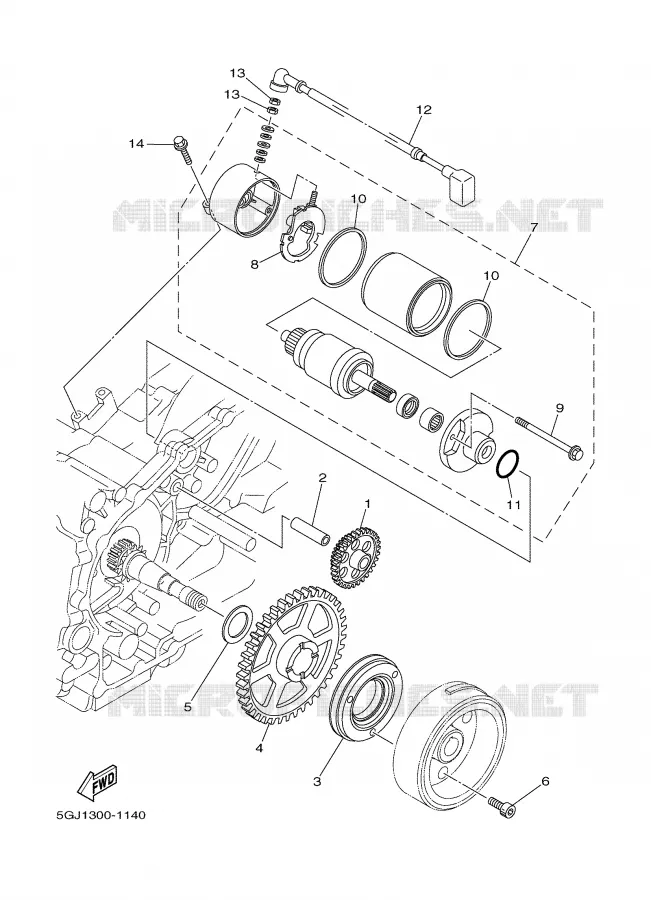

STARTER MOTOR Yamaha SCOOTER 500 2006 TMAX XP500V

1

GEAR, IDLER 1

5GJ155120000

22U155120000

142,70 $

Unit Price

2

SHAFT 1

36Y155210100 36Y155210100

18,62 $

Unit Price

3

STARTER ONE-WAY ASSY

4NK155900000 4NK155900000

240,53 $

Unit Price

4

GEAR, IDLER 2

5GJ155170000 5GJ155170000

244,95 $

Unit Price

5

WASHER, PLATE(1FK)

902012529000

90201256K600

10,38 $

Unit Price

6

BOULON, TETE HEXAGONALE CREUSE

901100800500 901100800500

Not available

7

DEMARREUR ELECTRIQUE COMPLET

5GJ818900000 5GJ818900000

Not available

8

BRUSH HOLDER ASSY

3HE818400000 3HE818400000

185,05 $

Unit Price

9

BOLT

3HE818260000 3HE818260000

20,01 $

Unit Price

10

GASKET

11H818440000

35C818440000

37,39 $

Unit Price

11

O-RING (437)

1FK818470000

932102423500

14,01 $

Unit Price

12

FIL, DEMARREUR ELECTRIQUE

5GJ818150000 5GJ818150000

Not available

13

NUT

4XV8182A0000 4XV8182A0000

3,15 $

Unit Price

14

BOLT, FLANGE

958170602500 958170602500

3,86 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Yamaha XP500V of 2006. Let us know if you have any questions.
