STAND / FOOTREST

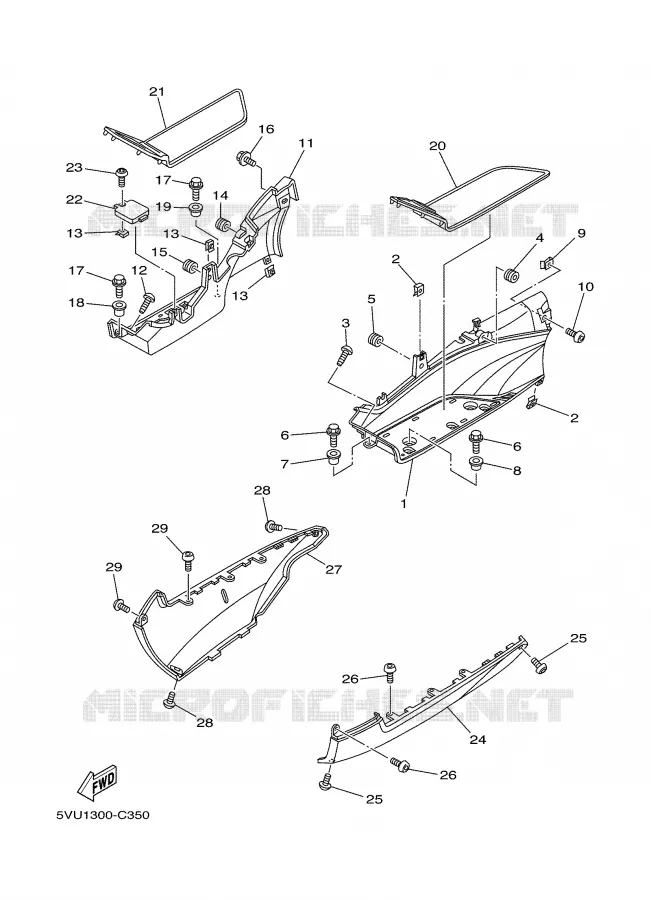

STAND / FOOTREST 2 FOR YAMAHA TMAX 2006

LEG SHIELD

BORD, REPOSE-PIEDS

5GJ274810000 5GJ274810000

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

GROMMET(4DN)

904800155800 904800155800

12,86 $

Unit Price

GROMMET(4FU)

904801356700 904801356700

9,17 $

Unit Price

BOLT, FLANGE

958070601600

958170601600

3,30 $

Unit Price

COLLAR (11G)

90387061F900 90387061F900

10,11 $

Unit Price

COLLAR (1WG)

90387066R800 90387066R800

5,28 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

BORD, REPOSE-PIEDS 2

5GJ274880100 5GJ274880100

Not available

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

GROMMET(4DN)

904800155800 904800155800

12,86 $

Unit Price

GROMMET(4FU)

904801356700 904801356700

9,17 $

Unit Price

BOLT, WITH WASHER(55K)

901190619400

901190611700

4,31 $

Unit Price

BOLT, FLANGE

958070601600

958170601600

3,30 $

Unit Price

COLLAR (11G)

90387061F900 90387061F900

10,11 $

Unit Price

COLLAR (1WG)

90387066R800 90387066R800

5,28 $

Unit Price

TAPIS 1

5GJ274830000 5GJ274830000

Not available

TAPIS 2

5GJ274840000 5GJ274840000

Not available

COVER 2

5GJ274630000 5GJ274630000

13,02 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

MOULURE, CACHE LATERAL 1

5GJ2171L00P4 5GJ2171L00P4

Not available

MOULURE, CACHE LATERAL 1

5GJ2171L00P8 5GJ2171L00P8

Not available

MOULURE, CACHE LATERAL 1

5GJ2171L00P9 5GJ2171L00P9

Not available

MOULURE, CACHE LATERAL 1

5GJ2171L00PA 5GJ2171L00PA

Not available

SCREW, TAPPING

901670508000 901670508000

2,52 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

MOULURE, CACHE LATERAL 2

5GJ2171M00P4 5GJ2171M00P4

Not available

MOULURE, CACHE LATERAL 2

5GJ2171M00P8 5GJ2171M00P8

Not available

MOULURE, CACHE LATERAL 2

5GJ2171M00P9 5GJ2171M00P9

Not available

MOULURE, CACHE LATERAL 2

5GJ2171M00PA 5GJ2171M00PA

Not available

SCREW, TAPPING

901670508000 901670508000

2,52 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST 2 of your Yamaha XP500 of 2006. Let us know if you have any questions.
