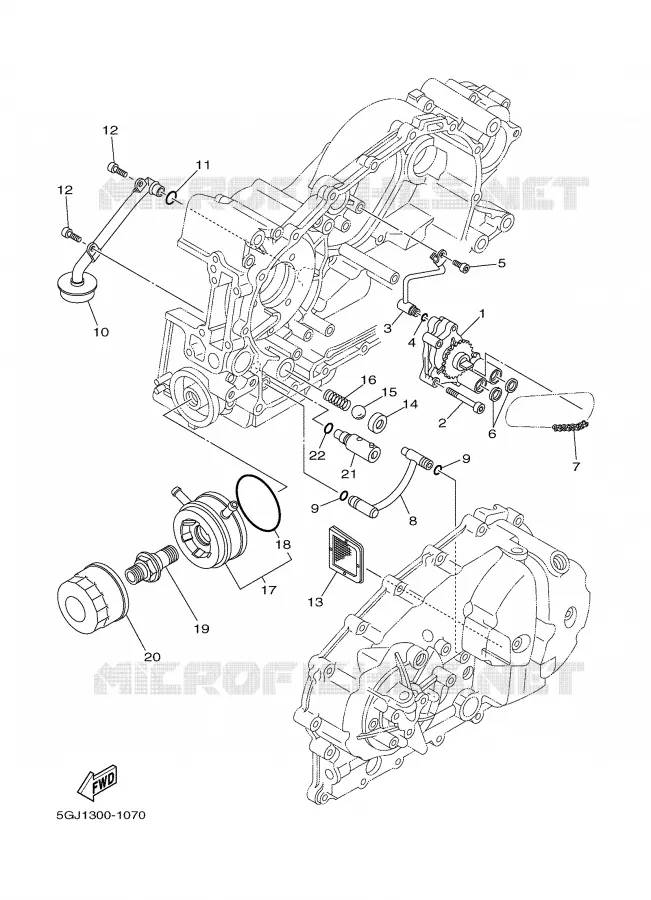

OIL PUMP FOR YAMAHA TMAX 2005

INTAKE

OIL PUMP ASSY

5GJ133000000 5GJ133000000

Not available

BOLT, BUTTON HEAD

920170605000 920170605000

2,46 $

Unit Price

PIPE, DELIVERY 1

5GJ131610000 5GJ131610000

51,60 $

Unit Price

O-RING (26H)

932100642200

932100663200

6,63 $

Unit Price

BOLT, SOCKET

901100600400

913170601400

4,22 $

Unit Price

GASKET

5GJ134750000 5GJ134750000

8,40 $

Unit Price

CHAIN

945802505800

945803105800

25,07 $

Unit Price

OIL PIPE COMP. 1

5GJ134050000 5GJ134050000

60,61 $

Unit Price

O-RING (5Y1)

932100952500 932100952500

7,71 $

Unit Price

STRAINER HOUSING ASSY

5GJ134100000 5GJ134100000

147,12 $

Unit Price

O-RING (26H)

932101457900 932101457900

3,94 $

Unit Price

BOLT, SOCKET

901100600400

913170601400

4,22 $

Unit Price

STRAINER, OIL

22F134110100 22F134110100

27,71 $

Unit Price

SEAT, CHECK BALL

3LD131130000 3LD131130000

16,26 $

Unit Price

BALL (5-8INCH) (527 CKD)

935050803000 935050803000

3,39 $

Unit Price

SPRING, COMPRESSION(3LD)

90501104F900 90501104F900

2,34 $

Unit Price

OIL COOLER ASSY

5GJ134701000 5GJ134701000

490,54 $

Unit Price

O-RING

5JW134730000 5JW134730000

40,10 $

Unit Price

BOLT, UNION

904012017000 904012017000

44,10 $

Unit Price

ELEMENT ASSY, OIL CLEANER

5DM134400000 5DM134400000

20,99 $

Unit Price

RELIEF VALVE ASSY

4G0134900100

11H134900000

50,77 $

Unit Price

O-RING (611)

932101009600 932101009600

3,65 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
