STEERING FOR YAMAHA TMAX 2004

FRONT FORK

BEARING(3FV)

933999993100 933999993100

65,30 $

Unit Price

BEARING(3FV)

933999993200 933999993200

72,60 $

Unit Price

SEAL, STEERING

3FV234620000 3FV234620000

23,86 $

Unit Price

WASHER, SPECIAL

26H234180100 26H234180100

15,55 $

Unit Price

NUT

901792503300

901792500300

19,82 $

Unit Price

WASHER, PLATE (26H)

902022614200 902022614200

10,11 $

Unit Price

COVER, BALL RACE 2

1W1234160000 1W1234160000

24,63 $

Unit Price

NUT (26H)

901792241200 901792241200

26,43 $

Unit Price

TE DE FOURCHE SUPERIEUR

5VUW23410000 5VUW23410000

Not available

SUPPORT, INFERIEUR DE GUIDON

5GJ234421000 5GJ234421000

Not available

WASHER, PLATE(42X)

90201104A700

90201105H300

7,76 $

Unit Price

WASHER, PLATE (4X7)

90201105A200 90201105A200

8,37 $

Unit Price

NUT, U

956071010000

956171010000

9,95 $

Unit Price

BOLT, SOCKET

913170803000 913170803000

5,25 $

Unit Price

HOLDER, HANDLE UPPER

4H7234411000 4H7234411000

21,21 $

Unit Price

BOLT, SOCKET

913170803000 913170803000

5,25 $

Unit Price

GUIDE, CABLE

5VU2331E0000 5VU2331E0000

Not available

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

SUPPORT DE DURITE DE FREIN

5GJ258860000 5GJ258860000

Not available

SUPPORT DE DURITE DE FREIN

5GJ258870000 5GJ258870000

Not available

BOLT, FLANGE

958070601000

958170601000

2,29 $

Unit Price

BOLT, BUTTON HEAD

920170601200 920170601200

3,90 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

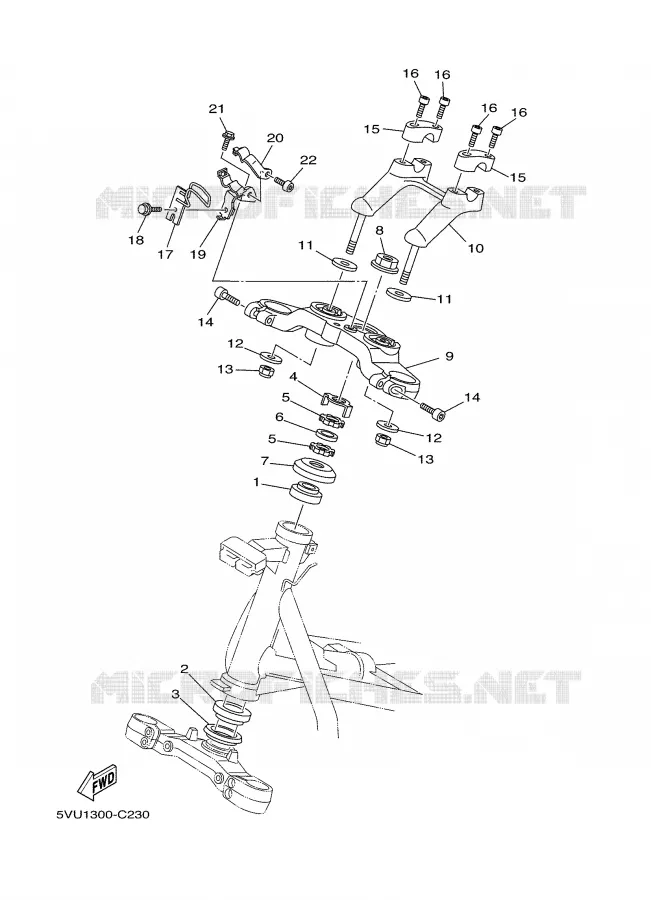

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING of your Yamaha XP500S of 2004. Let us know if you have any questions.
