OIL PUMP

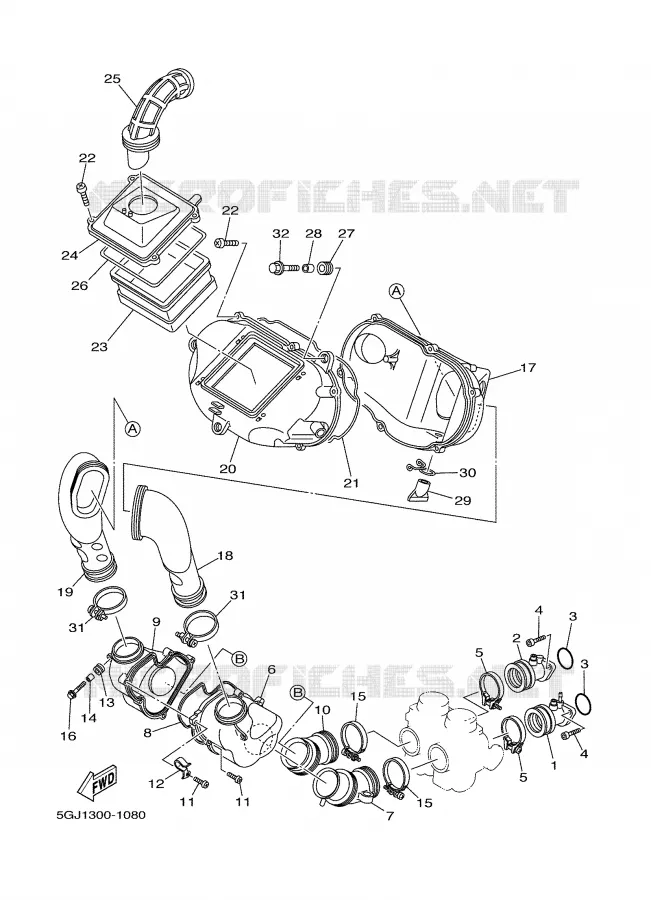

INTAKE FOR YAMAHA TMAX 2003

CARBURETOR

RACCORD, CARBURATEUR 1

5GJ135860100 5GJ135860100

Not available

RACCORD, CARBURATEUR 2

5GJ135960000 5GJ135960000

Not available

O-RING(1WG)

932103273800 932103273800

3,94 $

Unit Price

BOLT, SOCKET

913170602000 913170602000

4,00 $

Unit Price

COLLIER

5GJ135750000 5GJ135750000

Not available

SILENCIEUX, ADMISSION

5GJ144310000 5GJ144310000

Not available

RACCORD, FILTRE A AIR 1

5GJ144530000 5GJ144530000

Not available

SEAL

1JK144620000

51Y144620000

17,34 $

Unit Price

SILENCTEUX, INTERNE

5GJ144320000 5GJ144320000

Not available

RACCORD, FILTRE A AIR 2

5GJ144630000 5GJ144630000

Not available

SCREW, PAN TAP.2 SLIT

977075052000

977075062000

2,38 $

Unit Price

CLAMP(4KM)

904650837100 904650837100

8,31 $

Unit Price

GROMMET(3AA)

904801249700 904801249700

3,94 $

Unit Price

COLLAR(3KJ)

90387067V100 90387067V100

3,58 $

Unit Price

HOSE CLAMP ASSY

904605607100

904505600100

15,73 $

Unit Price

BOLT, FLANGE

958070602000

958170602000

3,91 $

Unit Price

BOITIER, FILTRE A AIR 1

5GJ144110000 5GJ144110000

Not available

RACCORD 1, FILTRE A AIR

5GJ1440F0000 5GJ1440F0000

Not available

RACCORD 2, FILTRE A AIR

5GJ1440G0000 5GJ1440G0000

Not available

COUVERCLE DE BOITIER DE FILTRE

5GJ1441A0000 5GJ1441A0000

Not available

JOINT

4KN144520000 4KN144520000

Not available

SCREW, PAN TAP.2 SLIT

977075052000

977075062000

2,38 $

Unit Price

ELEMENT, AIR CLEANER

4BH144510000

4BH144510100

76,99 $

Unit Price

COUVERCLE DE BOITIER DE FILTRE

5GJ144120000 5GJ144120000

Not available

CONDUIT

5GJ144370000 5GJ144370000

Not available

SEAL

3KJ144523000

51Y144620000

17,34 $

Unit Price

GROMMET(3AA)

904801249700 904801249700

3,94 $

Unit Price

COLLAR(3KJ)

90387067V100 90387067V100

3,58 $

Unit Price

SEAL

59V144570000 59V144570000

5,10 $

Unit Price

CLIP (21V)

904672208000 904672208000

7,43 $

Unit Price

HOSE CLAMP ASSY

904605607100

904505600100

15,73 $

Unit Price

BOLT, FLANGE

958070602000

958170602000

3,91 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
